TIP: If your TV has a S-Video connection, you can use it instead
of the yellow composite connection to
get higher video quality. S-Video cables
are typically black with multiple pins. If
you choose S-Video, connect your S-Video
cable to the appropriate connector on
SlingCatcher and your TV. For audio, use
the included red and white audio connections to your TV or
external audio receiver (if you are using one). If you use S/PDIF
digital audio, see instructions on the next page for connecting
DIGITAL AUDIO.
STEP 3: cONNEcT THE AUDIO/VIDEO cABlES
Check the available video inputs on your TV. There are four types of video
connections: composite, S-Video, component and HDMI.
The video quality of a composite video connection is good,
S-Video is better, and component or HDMI are best.
Once you select which connection is right for you,
connect the appropriate cables as mentioned below. The
SlingCatcher includes one set of composite video and audio cables. All other
cables are sold separately.

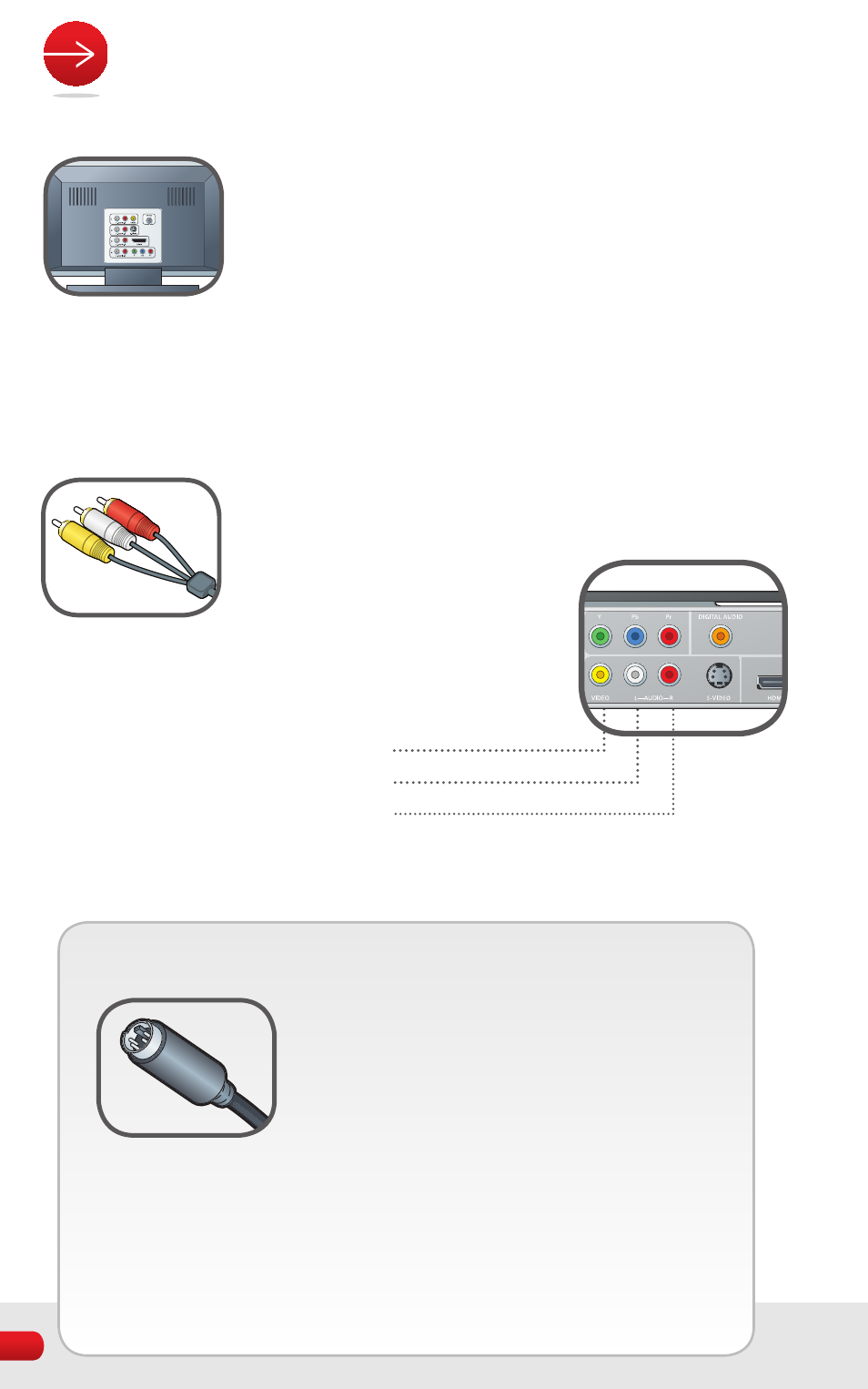

COMPOSITE: Composite connections include a yellow connection for video
along with a red and white connection for audio. Connect
one end of the yellow cable to the yellow connector on
the back of SlingCatcher, and the other end to the yellow
connector on your TV. Then,
attach the red and white audio
connections to your TV or external
audio receiver (if you are using one).
Left Audio
Right Audio
Composite Video
