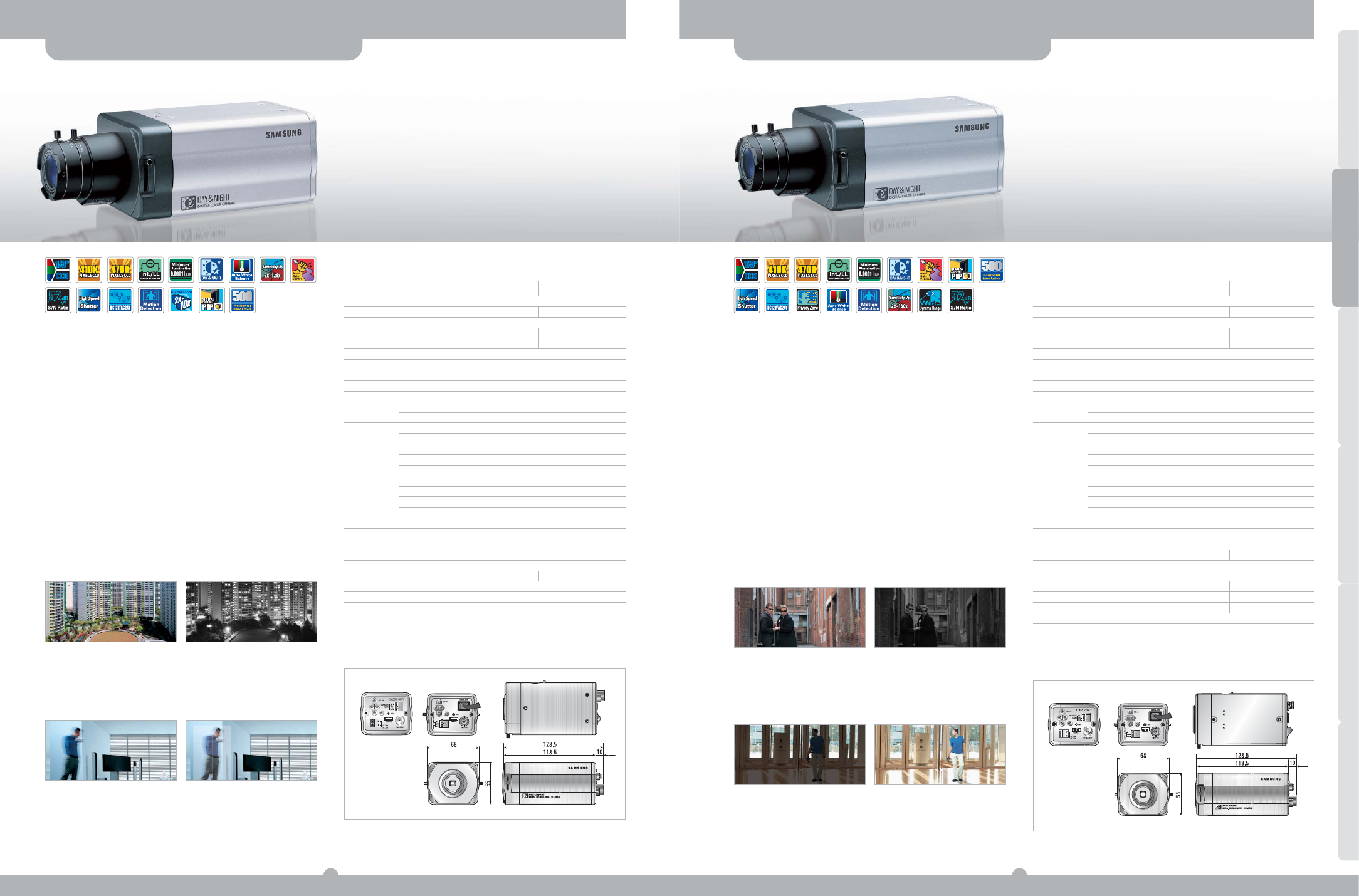

Samsung Scc-B2305 - Manual

SCC-B2305/B2005P
1/3” High Resolution, WDR, Day & Night
Color Digital Camera
Summary
An ultra-low illumination camera, SCC-B2305/B2005P, adopted 1/3"
410K CCD/470K CCD and incorporated WDR and Day & Night to provide
users with the highest image quality.
Imaging Device 1/3" Super HAD CCD
Effective Pixels 768(H)x494(V) 752(H)x582(V)
Scanning Method 2:1 Interlace
Scanning Horizontal 15.750Hz 15.625Hz
Line Frequency Vertical 60Hz 50Hz
Synchronization Method Internal / Line lock (V PHASE control)
Horizontal Color 500 TV Lines
Resolution B/W 530 TV Lines
Signal Output VBS 1.0Vp-p(75 ohm, composite)
S/N Ratio 52dB
Minimum Scene Color 0.001(Sens up 160X,15IRE)Lux
Illumination B/W 0.0001(Sens up 160X,15IRE)Lux
Functions Camera ID Off/On(20Characters, Position Setting)
Electronic Shutter Off, 1/100 ~ 10,000 sec
BLC
Off/Bottom/Left/Right/Top/Center
AGC Off/Low/High
White Balance ATW/AWC/Manual
PIP Off/On
Motion Detection Off/On (Level Control, Area Setting)
Sens Up
Off/Auto(2X ~160X)
Day & Night Color/BW/Auto/EXT
ALC / ELC DC Iris Control / Level Control ( ~ 1/100,000sec)
Input/Output Image Output BNC
Power Terminal Block (3-pin)
Wide Dynamic Range 64X 80X
Operating Temperature -10°C ~ +50°C
Operating Humidity no more than 90% RH
Power Requirment AC24V / DC12V compatible AC220V~240V
Power Consumption 4.5W 5.0W
Weight 450g 550g
Dimensions 68(W) x 55(H) x 128.5(D)mm
Model SCC-B2305 SCC-B2305P
Features
Specifications
• WDR (Wide Dynamic Range NTSC : 64X, PAL : 80X)
• Day & Night
• DSP (Digital Signal Processor)
• 1/3" super HAD CCD (SCC-B2305 : 410K/470K, SCC-B2005P : 470K)
• Horizontal resolution : 500(color)/530(B/W) TV Lines
• High sensitivity with a minimum scene illumination
• Back light compensation for the various light conditions
• External synchronization with Line lock • 8 privacy zones (privacy mask)
• Motion detection • On-screen menus (Multi-language)
• Accepts 2 types of auto-Iris lenses (DC / Video)
• Accepts CS/C-mount lens (with C-mount adaptor)
• Power input (SCC-B2305 : AC24V/DC12V, SCC-B2005P : AC220V~240V)
• Built-in ground fault isolation transformer
Day & Night
Optimal images are displayed anytime of a day by switching between color mode
and black& white mode according to the level of brighness.
Day Night
WDR (Wide Dynamic Range)
WDR allows dark subjects to be viewed vividly under bright lighting or sunlight.
Normal WDR
Dimensions (unit:mm)
SCC-B2305 SCC-B2005P
SCC-B2303/B2003P
1/3” High Resolution, Day & Night
Color Digital Camera
Summary
SCC-B2303/B2003P is a Day & Night camera that can monitor for 24
hours, using color mode in the daytime and black & white mode in the
nighttime. Also, it has a low-illumination, which allows vivid images to be
obtained in places having a low level of illumination, such as under-
ground parking lots.
Specifications
Features
• Day & Night • DSP (Digital Signal Processor)
• 1/3" super HAD CCD (SCC-B2303 : 410K/470K, SCC-B2003P : 470K)
• Horizontal resolution : 500(color)/530(B/W) TV Lines
• Back light compensation for the various light conditions
• External synchronization with Line lock
• Motion detection • On-screen menus (Multi-language)
• Picture in picture on digital zoom
• Accepts 2 types of auto-iris lenses (DC/Video)
• Accepts CS/C-mount lens (with C-mount adaptor)
• Power input (SCC-B2303 : AC24V/DC12V, SCC-B2003P :AC220V~240V)
• Built-in ground fault isolation transformer
Imaging Device 1/3" Super HAD CCD
Effective Pixels 768(H)x494(V) 752(H)x582(V)
Scanning Method 2:1 Interlace
Scanning Horizontal 15.750Hz 15.625Hz
Line Frequency Vertical 60Hz 50Hz
Synchronization Method Internal / Line lock (V PHASE control)
Horizontal Color 500 TV Lines
Resolution B/W 530 TV Lines
Signal Output VBS 1.0Vp-p(75 ohm, composite)
S/N Ratio 52dB
Minimum Scene Color 0.001(Sens up 128X,15IRE)Lux
Illumination B/W 0.0001(Sens up Off,15IRE)Lux
Functions Camera ID Off/On(20Characters, Position Setting)
Electronic Shutter 1/100~10,000 sec
BLC
Off/Bottom/Left/Right/Top/Center/User(Area Setting)
AGC Off/Low/High
White Balance ATW/AWC/Manual (3200°K, 5600°K, R/B Gain Control)
PIP Off/On
Motion Detection Off/On(Level Control, Area Setting)
Sens Up
Off/Auto(2X ~ 128X)/Fix(2X ~ 128X)
Day & Night Color/BW/Auto/EXT
ALC / ELC DC Iris Control / Level Control( ~ 1/100,000sec)
Input/Output Image Output BNC
Power Terminal Block (3-pin)
Operating Temperature -10°C ~ +50°C
Operating Humidity no more than 90% RH
Power Requirment AC24V / DC12V compatible AC220V~240V
Power Consumption 4.5W
Weight 450g
Dimensions 68(W) x 55(H) x 128.5(D)mm
Model SCC-B2303 SCC-B2303P
Dimensions (unit:mm) Day Night
Day & Night
The camera captures optimal images in both Day & Night by switching between
color mode and black&white mode according to the level of brightness.
SCC-B2003P SCC-B2303 Motion Detection
If movement is detected in the selected area, the camera transmits an alarm signal.
Motion Detection OFF Motion Detection ON
41
CAMERAS Video Security System
NEW PRODUCTS
CAMERAS
MONITORS
DVRS
NETWORK SECURITY
CONTROLLERS
40
CAMERAS Video Security System
* SCC-B2003P is same as SCC-B2303P except for Power Requirment (AC 220V~240V)
* SCC-B2005P is same as SCC-B2305P except for Power Requirment (AC 220V~240V)
