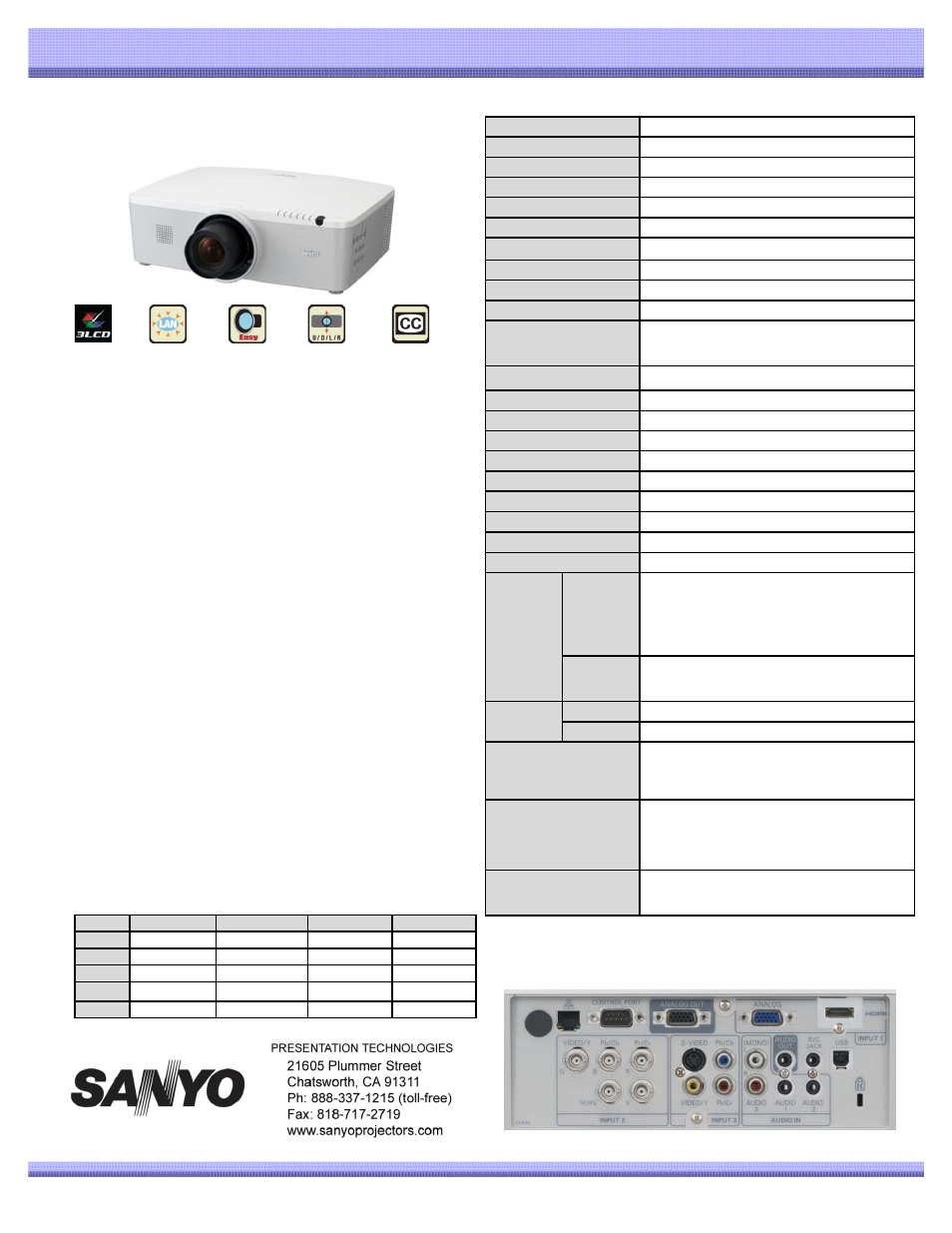

Sanyo PLC-WM4500 - Manual

PLC PLC--WM4500 / 4500L WM4500 / 4500L
Resolution WXGA (1280 x 800)
Brightness (typical) 4500 Lm
Contrast Ratio 800:1
4500 LUMENS
z WXGA z MULTI-FUNCTION PROJECTOR
WXGA MULTI-FUNCTION PROJECTOR
Image Size 40"- 400"
Aspect Ratio 16:10
Projection Lamp 275W
Scanning Frequency H:15-100kHz, V:48-100Hz
Fan Noise 31dBA (eco) tentative
Voltage 100-240V
Power Consumption 420W(Normal), 353W (Eco)
WIDE ASPECT AND HIGHEST BRIGHTNESS
Wide XGA resolution makes it possible to project both HD video
contents and wide aspect PC without any setting adjustment.
PLC-WM4500/L has an HDMI terminal which is the most popular
terminal for video sources. Its higher light efficiency and superior
Input signal compatibility
WUXGA, UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA, MAC, 1080p(50/60), 1080i(50/60),
1080-24/25/30 psf ,720p(50/60), 575p/i, 480p/i
Color System NTSC, PAL, SECAM, NTSC4.43, PAL-M/N
Up / Down Ratio U/D :+/- 60%, L/R +/- 10%
Digital Keystone Correction V +/- 40°
Speaker Output 7W
Weight (lbs) 20.5 lbs / 18.7 lbs (without Lens)
3LCD
Optional
Lens System X-Y Power
Len Shift Built-in
Network Closed
Caption
cooling technology allows for the highest brightness (4500 Lm) in its
class.
FLEXIBLE INSTALLATION
This unit is Equipped with power vertical and horizontal lens
shift/keystone correction. Also 5 lens options* along with the standard
lens make this a very flexible projector.
*PLC-WM4500 includes a standard lens (LNS-S20)
EASY MAINTENANCE – LONG LIFE FILTER
Dimensions (inch) W,H,D 19.3"x6.5"x14.6“ (without Lens)
Replacement Lamp # 610 347 5158
Replacement Remote # 645 103 0245
Filter Life* (hour) 3000h (Eco)
Lamp Life * (hour) 3000h (Eco)
PC/Video
HDMI(1.3b) x 1 (Digital RGB)
D-sub 15 x 1 (RGB, Scart RGB)
5BNC x1 (G B R H/V V) (Video/Y Pb/Cb Pr/Cr)
Mi i DIN 4 i 1 (S Vid )
Newly developed long life filter can last up to 3000 hours in eco mode.
Its design is larger and thicker than filters of old. Filter life cycle under
ideal conditions is same as lamp life, therefore the user can change
both lamp and filter at once. You can save maintenance cost as well.
DURABLE IN-ORGANIC OPTICAL SYSTEM (D.I.O.S.)
This Inorganic Optical LCD panel system provides a more durable
projector to handle many applications for high-quality, high contrast
image presentations.
Input
PC/Video
Mini DIN 4pin x 1 (S-Video)
RCA x 1 (Composite Video, Y)
RCA x 2 ( Pb/Cb, Pr/Cr)
Audio
(HDMI x1)
Stereo mini jack x 2
RCA x 2 (R/L-mono)
Output
PC/Video D-sub 15 x 1 (Monitor out)
Audio Stereo mini jack x 1 (Audio out, variable)
D-sub 9-pin x 1 (Control port)
RJ 45 x 1 (Wired LAN)
PICTURE IN PICTURE (P in P), PICTURE BY PICTURE (P by P)
This function makes it possible to project two different sources with
one projector. Video conference, PC, video or even satellite lecture
type of application should be suitable with using this function.
CLOSED CAPTION
The PLC-WM4500/L is Closed Caption compatible.
Other Feature
RJ-45 x 1 (Wired LAN)
Mini jack x 1 (Wired R/C)
USB (type B) x 1
Included Accessories
Power cord
VGA cable
Lens mount cover
Remote control
AAA battery x2
Quick reference guide
Owner’s Manual (CD-Rom)
PIN code label
Warranty
Three years parts and labor;
90 days original lamp;
Quick Repair Program under warranty
LENS OPTIONS
p g y
Because its products are subject to continuous improvement, SANYO reserves the right to modify
product design and specifications without notice and without incurring any obligations.
* Lamp life may vary due to room conditions, usage, and maintenance. The replacement time is a
general estimate. The brightness of a lamp usually decreases over time and use.
LENS OPTIONS
Model Type (Zoom) U/D Ratio Throw Ratio F Stop
LNS-W21 Short (Fixed) 1:1 +/- 0% 0.8:1 2.0
LNS-W20 Short (x1.3) 11:-1- -1:11 +/- 60% 1.3-1.7:1 1.8-2.3
LNS-S20 Standard (x1.7) 11:-1- -1:11 +/- 60% 1.7-2.8:1 1.7-2.3
LNS-T20 Long (x1.6) 11:-1- -1:11 +/- 60% 2.8-4.6:1 1.8-2.3
LNS-T21 Ultra Long (x1.6) 11:-1- -1:11 +/- 60% 4.6-7.2:1 1.8-2.3
©2010 SANYO
Back Panel
