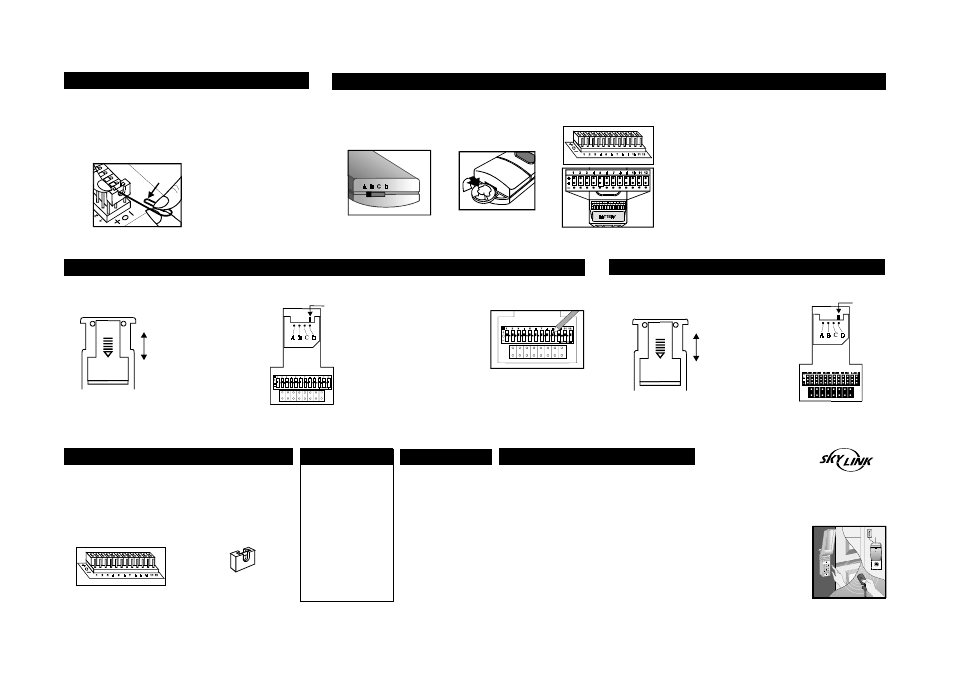

1. Locate frequency switch
on the top of the trans-
mitter and set to position
A. (See diagram N)
2. To program the model
#68, #68C, #68B, #68G,
#68R, open the case
with a coin. (See dia-
gram O)
Diagram N
Diagram O
4. Use an opened paper clip to set the connectors numbered
1 through 9 so that the switches on the transmitter match
those on the receiver. To operate with Skylink #UR100, only
set to “ + ” or “ 0 ” position. Do not place the connector to
the middle & bottom posts “ - ” position. Leave the remaining
posts at “ 0 ”, or the blank position (remove the connectors).
See the Diagram J for details.
3. The transmitter has 12 rows
of posts, each row has 3
posts. (see diagram P)
Diagram P
5. Test the transmitter with the Universal receiver.
6. To move the connectors, slide an
opened paper clip into the side of
a connector and lift. (see diagram
M) When repositioning connec-
tors, place a connector on the two
chosen posts, then push down on
the connector with your finger.
Diagram M
7. Set the connectors num-
bered 1 through 9 so that
the switches on the trans-
mitter match those on the
receiver. Leave the re-
maining posts at “ 0 ”,or
the blank position (remove
the connectors). See the
diagram J for details.
8. Test the transmitter with
the Universal receiver.
Paper
Clip
CLOSE
1. To Program Your Keypad
- Open the cover on the
back. (See diagram Q)
OPEN
2. Set brand jumper by moving the red plastic
tab to the number 7 jumper. Slide an opened
paper clip into the
top of the red plastic
tab, then lift and re-
position.
Frequency
Switch
DIP Switch Location
1 2 3 4 5 6 7 8
Brand Jumper
3. Set the frequency
switch located above
to “ D ” position (slide
the switch as far
right as possible).
(See diagram R)
5. Refer to the keypad manual
to test the transmitter with
the Universal receiver.
DIP Switch
Location
CLOSE
1. To Program Your Keypad
- Open the cover on the
back. (See diagram T)
OPEN
Frequency
Switch
Brand Jumper
Diagram W
Diagram V
PROGRAMMING THE SKYLINK MODEL #88, #88C
PROGRAMMING THE SKYLINK MODEL #88p
Diagram Q
Diagram T
Diagram R
Diagram S
Diagram U
1 2 3 4 5 6 7 8
FCC
The Universal Garage Door
Remote Control is approved
by the FCC and it complies
with Part 15 of the FCC
Rules. Its operation is
subject to the following two
conditions :
1. This device may not
cause harmful inter-
ference.
2. This device must accept
any interference that
may cause undesired
operation.
Skylink will not be held liable
or responsible for
any misuse or application
of this product other than
for its intended use.
GARAGE DOOR/
GATE OPENER
UNIVERSAL RECEIVER
USER'S INSTRUCTIONS
(Model UR-100)
® are registered trademarks of their respective corporations
SKYLINK
TECHNOLOGIES INC.
2213 Dunwin Drive,
Mississauga, Ontario
L5L 1X1, CANADA
(905)608-9223
(905)608-8744 FAX
Email:[email protected]
(Reply within 24 hrs)
Customer Service : (800)304-1187
http://www.skylinkhome.com
P/N. 101A111-003 Rev.3
Patent no. 382251
Patents Pending
©1999 SKYLINK TECHNOLOGIES INC.
WARNING:
Changes or modifications
to this unit not expressly
approved by the party res-
ponsible of compliance
could void the user’s
authority to operate the
equipment.
WARNING
DO NOT let children
use any garage door
transmitter without
adult supervision.
Children can injure
themselves or others
by the garage door.
WARRANTY
If, within one year from date
of purchase, this product
should become defective
(except battery), due to
faulty workmanship or
materials, it will be repaired
or replaced, without charge.
Proof of purchase is
required.
®
4. Use a pen or paper clip
to set the corresponding
DIP switches numbered
1 through 9 so that the
switches on the trans-
mitter match those on
the receiver. Each switch
of the transmitter has 3
positions (“ + ”, “ 0 ”,
“ - ”). To operate with
Skylink #UR-100, only
set the switches to “ + ”
or “ 0 ”. Do not use “ - ”
position. Leave the re-
maining DIP switches in
the transmitter at “0” or
the center position. (See
diagram S)
5. Refer to the keypad manual to test the transmitter with the Universal
receiver.
4. The connector (See diagram V) has 12 rows of posts, each row
has 3 posts. Each row contains one connector (See diagram
W). Set the code connectors from number 1 through 9 so that
the switches on the transmitter match those on the receiver.
To operate with #UR100, only set the connectors to “ + ” or “0”
(blank position). Do not set the connectors to “ - ” position. Leave
the remaining posts at “ 0 ”, or the blank position (remove the
connectors). See the diagram L for details.
2. Set brand jumper by moving the red plastic
tab to the number 7 jumper. Slide an opened
paper clip into the
top of the red plastic
tab, then lift and re-
position.
3. Set the frequency
switch located above
to “ D ” position
(slide the switch
as far right as
possible). (See
diagram U)
