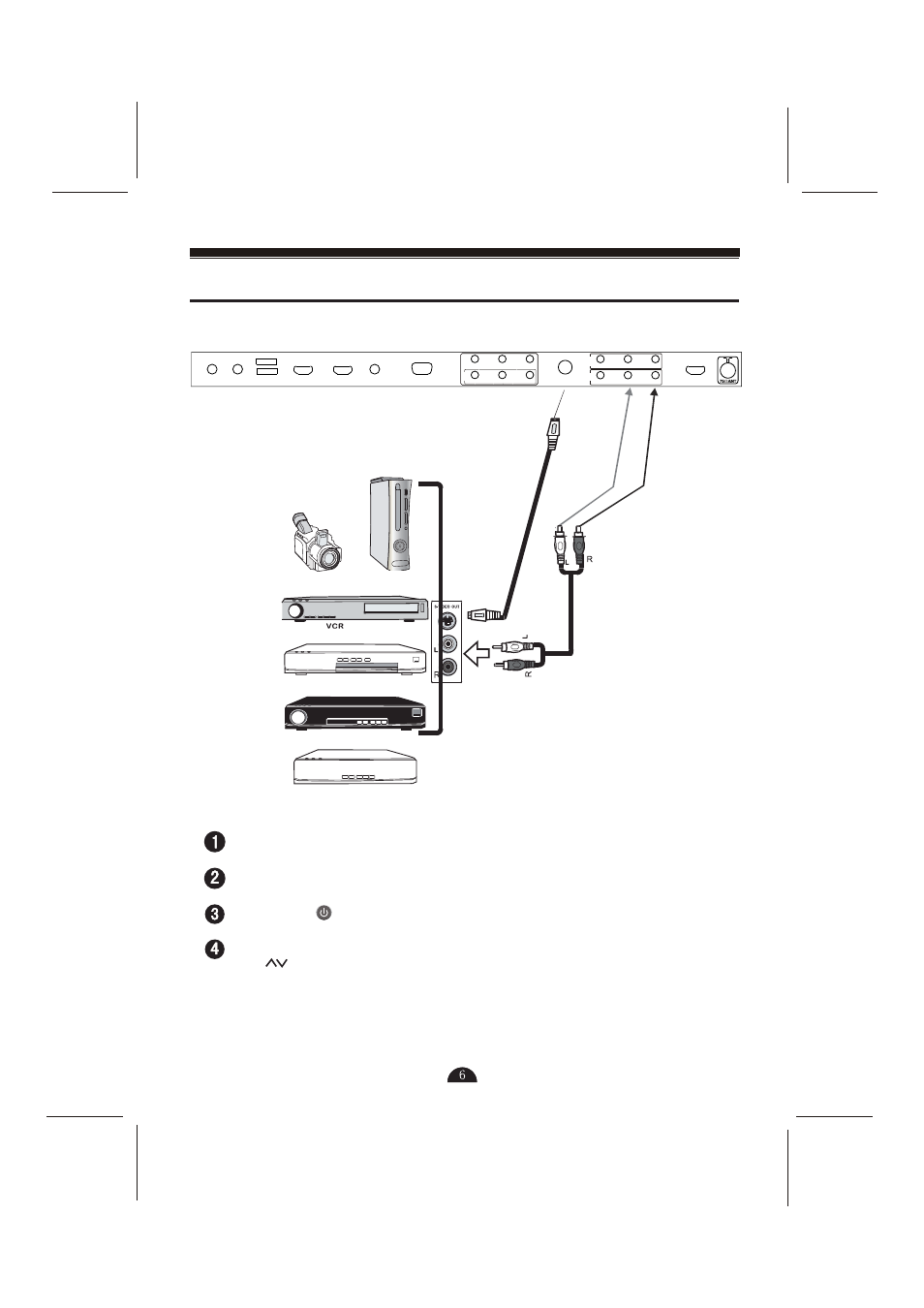

Use S-Video Cable to Connect AV Device
S-video cable
Camera
Game machine
DVD player
Satellite signal receiver
TV box
Audio cable
Use S-video cable to connect AV device to this machine and then use audio cable to
connect the audio output and input terminals
Please check the connection of all signal cables before pressing ON/OFF key
Press ON/OFF key on the remote controller to power on TV
Press Video Signal key on the remote controller to enter the function list and then
press key to select S-VIDEO option, press OK key to confirm
