Wall Mounting the Monitor

Attaching a base

Pivot Stand

Wall Mounting the Monitor

Attaching a base
NOTE: This monitor accepts a 75mm x 75mm VESA-compliant mounting interface pad.

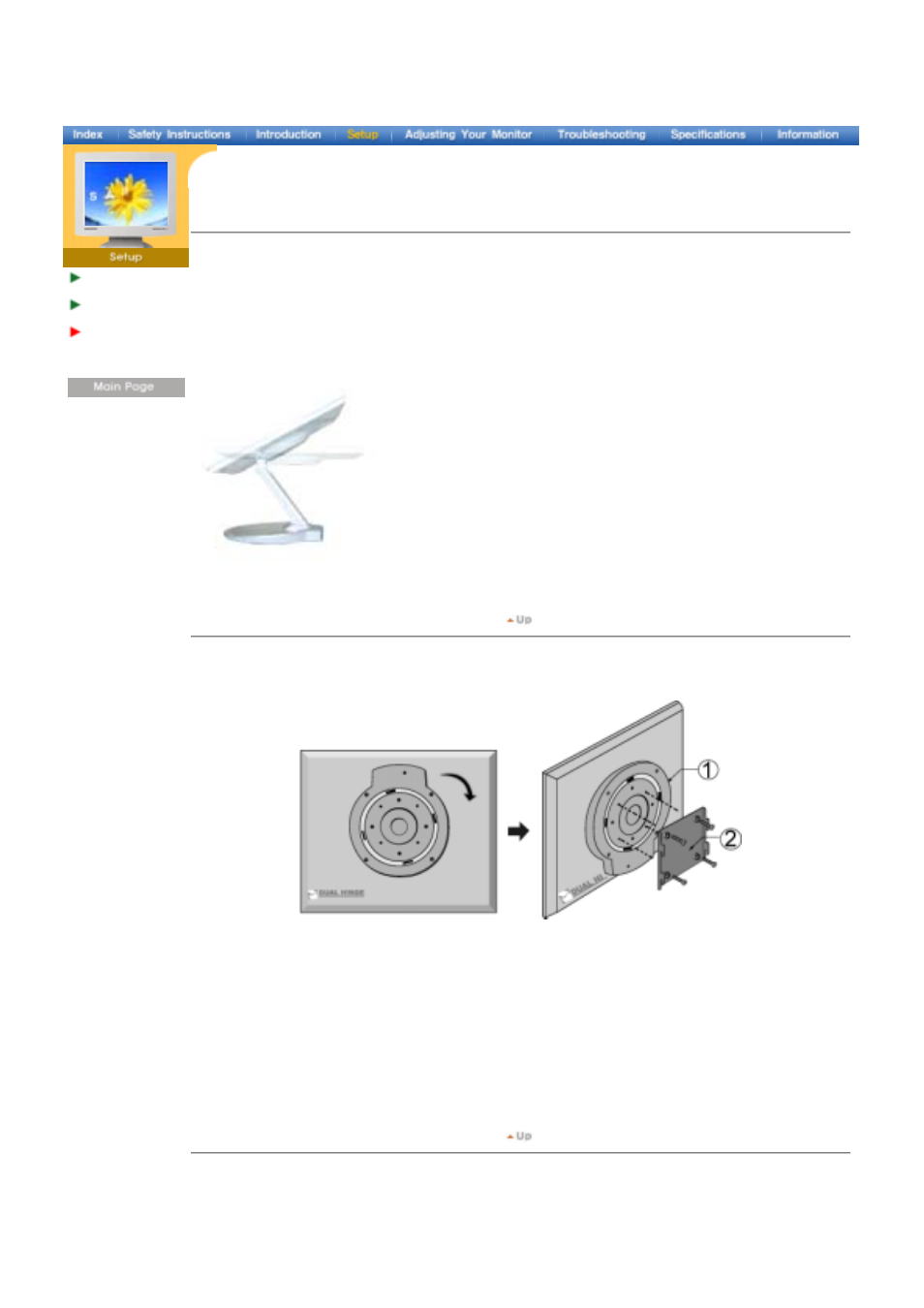

Fold the monitor stand. Turn it so that the side to which the cable is connected faces down. Attach
the VESA Mounting Bracket to the bottom side of the stand. Align the holes of the bracket with those
in the VESA stand, and fasten it tightly in place with four screws.

1. VESA Stand

2. VESA Mounting Brkt

Caution :The stand is made of aluminum. Keep it from getting nicked or scratched.

Pivot Stand
