Simer Pumps 2.81E+01 - Manual (Page 10)

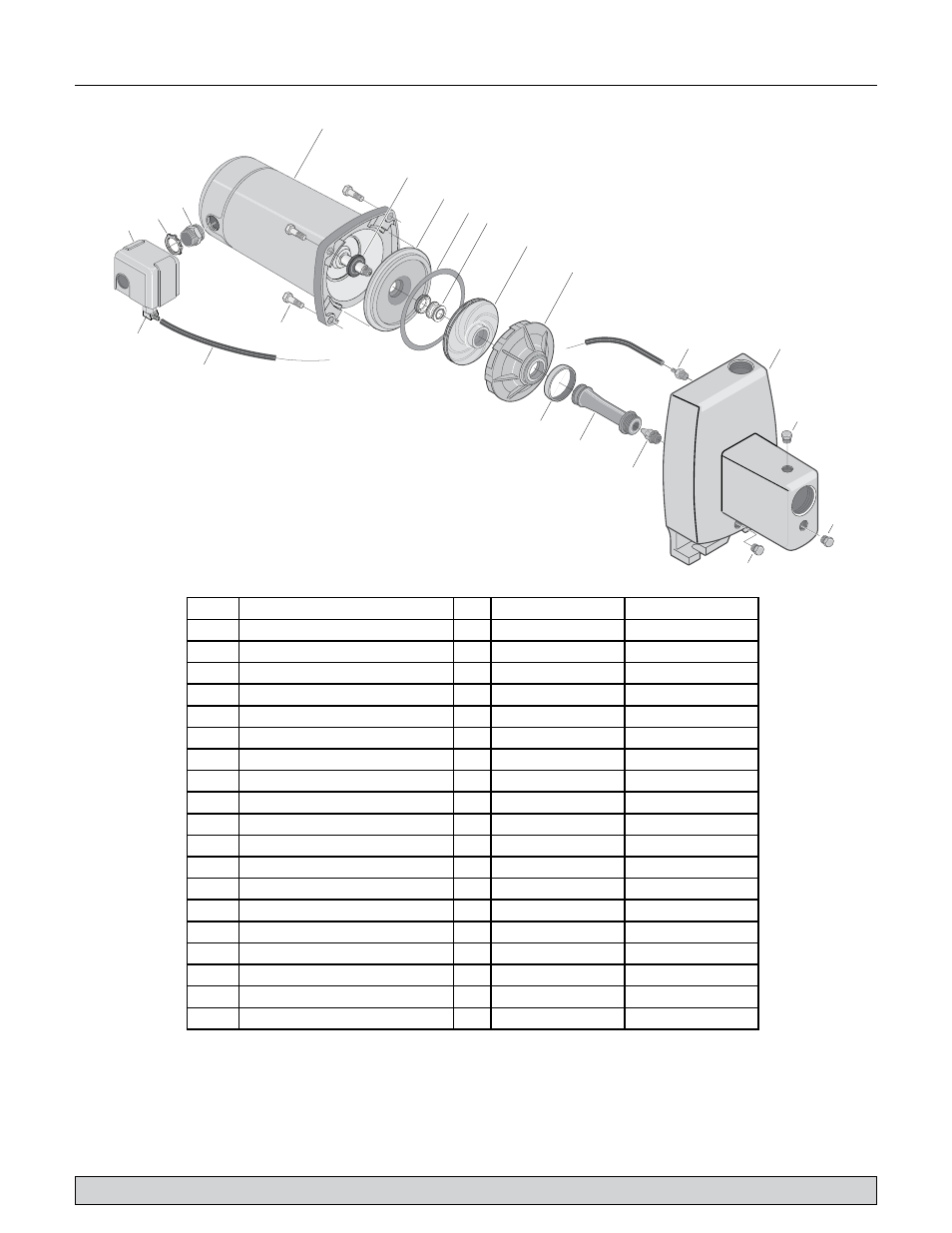

Repair Parts 10
For parts or assistance, call Simer Customer Service at 1-800-468-7867
1
2
3
4
5
6
7
8
9A
11 9
10
10
10
9B
16
13
12
17
14
15
2331 0296
Item Description Qty . 2810E-02 2805E-02
1 Motor (-L) 1 J218-590PKG J218-582A-115PKG
2 Water Slinger 1 17351-0009 17351-0009
3 Seal Plate Assembly 1 N3-9 N3-9
4 Gasket, Seal Plate 1 N20-35 N20-35
5 Shaft Seal 1 U109-6A U109-6A
6 Impeller 1 J105-42P J105-40P
7 Volute Diffuser 1 L1-25P L1-25P
8 Gasket, Diffuser 1 N20-34 N20-34
9 Pump Body Assembly 1 N176-38F N176-38
9A Venturi (1) N32P-75 N32P-66
9B Nozzle (1) N34P-21 (#47) N34P-17 (#43)
10 Pipe Plug, 1/4” NPT Hex Hd. 3 § §
11 Barbed Fitting, 1/4” NPT 1 U111-211T U111-211T
12 Barbed Elbow, 1/4” NPT 1 U111-212T –
13 Tube, 1/4”x14-1/2” 1 U37-672P U37-672P
14 Pressure Switch 1 U217-1202 U217-1202
15 Locknut, 1/2” 1 U36-112ZP U36-112ZP
16 Connector 1 L43-5C L43-5C
17 Capscrew 3/8-16x1-1/4” Lg. Hex Hd. 4 § §
§ Standard hardware item; purchase locally.
