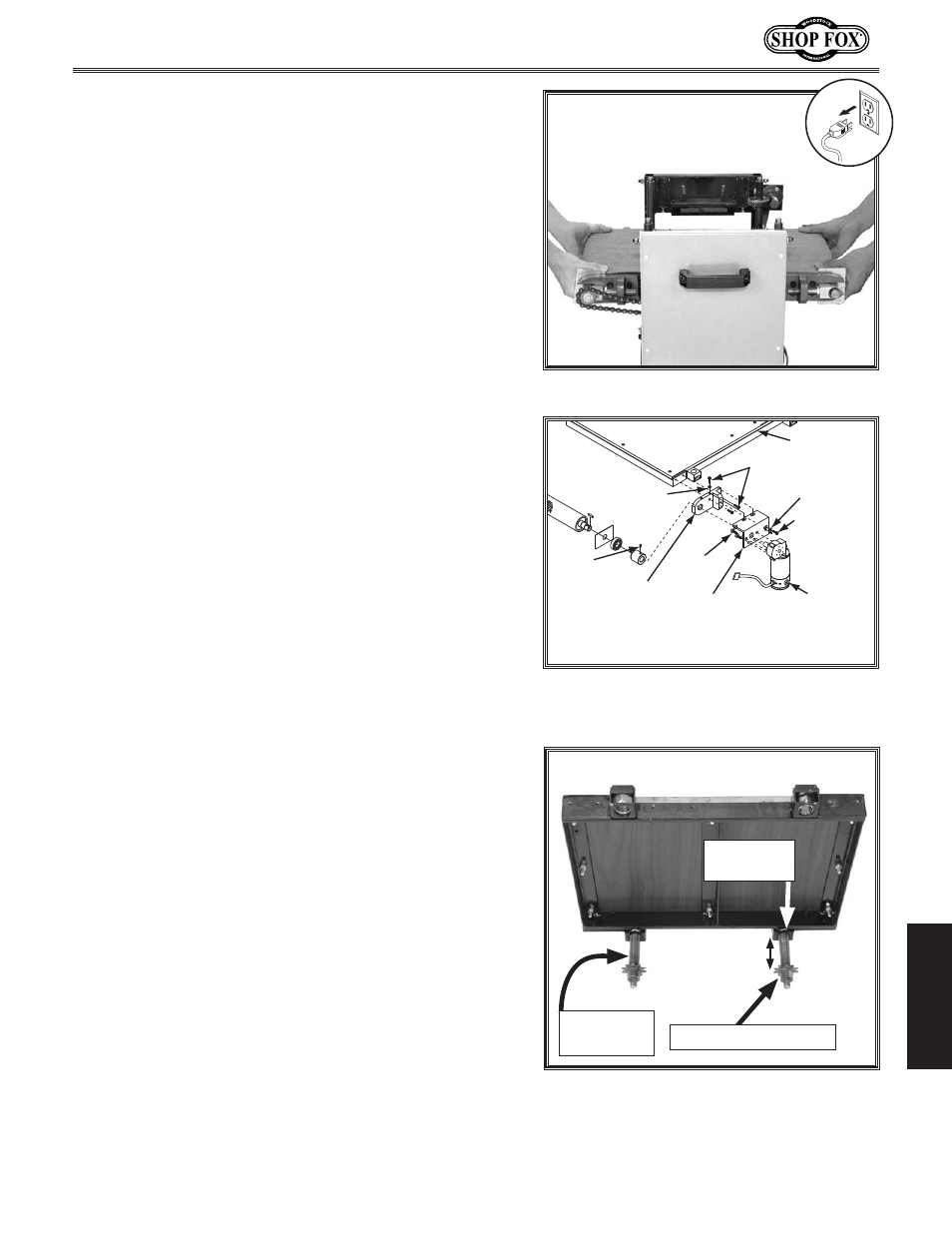

17. With the help of an assistant, carefully lift the table
off the drum sander cabinet, as shown in Figure.53.
Figure.53. Lifting the table off safely.
Figure.55. Conveyor belt removed from
table.
Mounting
Bracket
21. Remove the rear roller.
22. Remove the front left roller bracket (two cap
screws) and the front roller.
23. Remove the front right and rear roller brackets (four
cap screws).
24. Place the right side of the conveyor on a flat sur-
face, then unthread and remove the front and rear
table lift screws.
25. Remove the belt to expose the table, as shown in
Figure.55.
26. Measure the distance between the front right table
lift screw sprocket and the mounting bracket. If nec-
essary, rotate the rear shaft so the sprocket-bracket
distance is the same as the front right table lift
screw.
27. Install the new conveyor belt.
28. Re-install the front left and rear left table lift screws
to match the front right lift screw height.
29. Reassemble the drum sander by reversing the disas-
sembly steps.
30. After reassembly, adjust the drums and pressure roll-
ers to their proper settings as outlined in this manu-
al.
31. After you have re-installed the conveyor table,
make sure the four lower pressure roller adjustment
bolts are threaded the same distance into the roller
mount brackets (see Figure.55).
32. After re-installing the top cover and brace, tighten
the mounting bolts.
18. Lay the conveyor table on the edge of a workbench
so the conveyor motor can hang freely.
19. (A) Remove the set screw shown in Figure.54,.(B).
remove the conveyor motor cover from the left rear
roller bracket (3 cap screws and 3 flat washers),
then (C) remove the conveyor motor (4 cap screws)
from the conveyor motor cover (see Figure.54).
20. Remove the rear left roller bracket (2 cap screws).
Figure.54. Removing conveyor motor and
rear roller bracket (not all components
shown for clarity).
Conveyor
Motor
Cover
Conveyor
Motor
Flat
Washer
Flat Washer
Left
Rear
Roller
Bracket
Cap Screw
Cap
Screw
Set
Screw
Cap Screws
Table
(A)
(B)
(C)
Front Right Sprocket
Rear
Lift Screw
