9. Loosen the lock nuts (see Figure.29) on the pillow

block bearing that requires adjustment.

10. Rotate the four set screws

⁄

of a turn clockwise to

raise the pillow block bearing.

Note: Turn all set screw sets an equal amount.

11. Tighten the lock nuts and recheck the alignment,

using the gauge boards and repeating

Steps.1–8 from

the previous subsection. Tightening the lock nuts will

pull the drum downward slightly. Be sure to adjust to

compensate for this movement.

Do.not.over.tighten.

the.lock.nuts..The.pillow.block.bearings.can.break.

if.over.tightened.

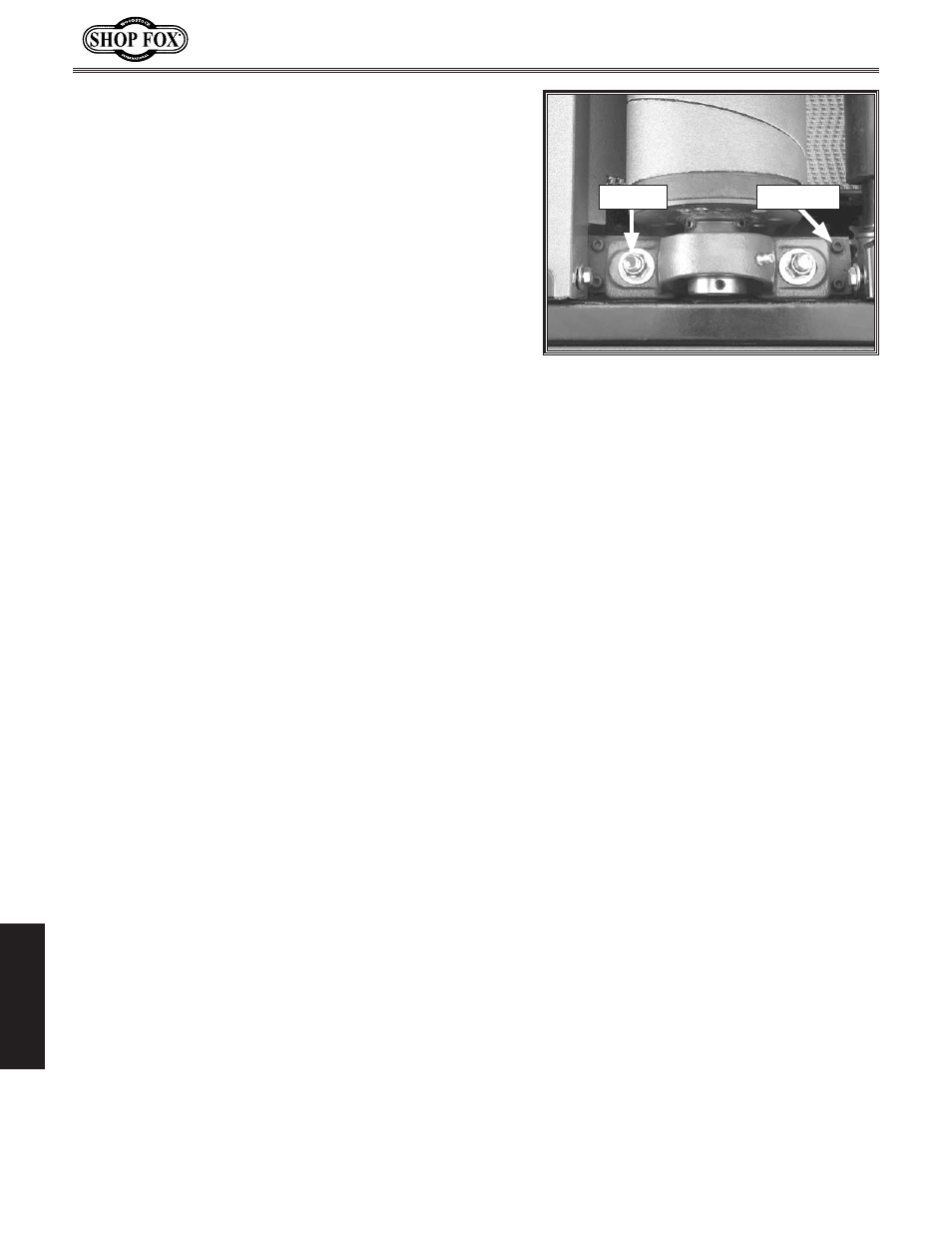

Figure.29. Pillow bearing housing.

Locknut

Set Screw
