4 GB
This chapter provides information on the
location of buttons and how to use them to
perform basic operations.
However, some functions explained in this
section may not work depending on the model
of the receiver.
For the functions of the receiver you purchased,
refer to the Operating Instructions supplied
with the receiver.
Parts description

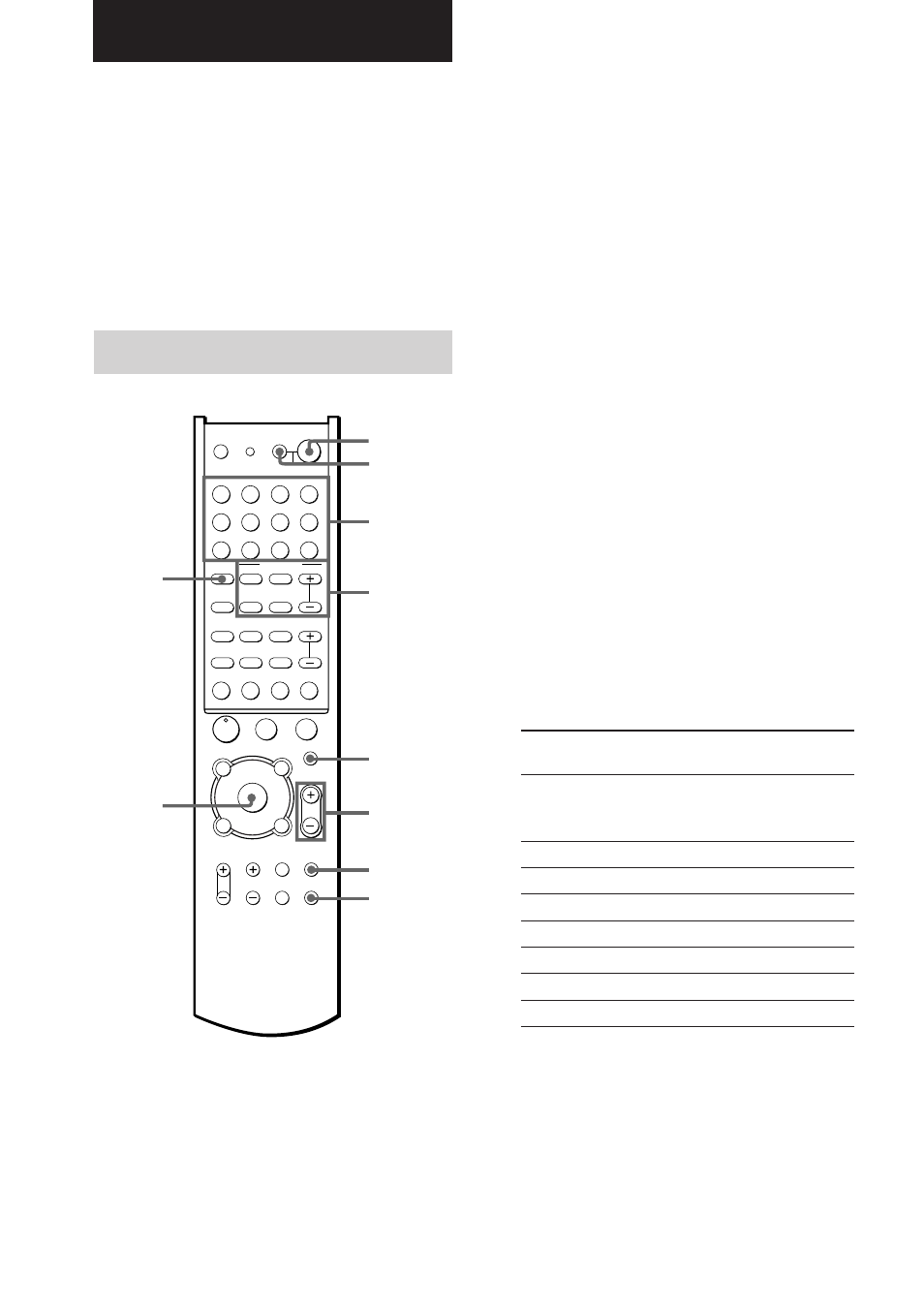

Location of Parts and Basic Remote
Operations
1 ?/1 switch
Press to turn the reciver on or off.
SLEEP button
Press repeatedly to activate the sleep
function and the duration which the receiver
turns off automatically.
2 AV ?/1 switch
Press to turn the selected audio and video
components under the function button, on or
off.
If you press the ?/1 switch at the same
time, it will turn off the receiver and other
Sony audio/video components (SYSTEM
STANDBY).
Note
The function of the AV ?/1 switch changes
automatically each time you press the function
buttons (3). Depending on the component, the
above operation may not be be possible or may
operate differently than described.
3 Function buttons
Press one of the buttons to select the
component you want to use. When you
press a button, the receiver turns on. The
components are factory assigned to the
buttons as follows. When you want to
assign other components, program the
remote following the steps on page 10.
Button(s) Assigned
component(s)
VIDEO1 VCR (VTR mode 3)
VIDEO2 VCR (VTR mode 1)
VIDEO3 VCR (VTR mode 2)
DVD/LD DVD player
TV/SAT TV tuner
TAPE Tape deck
MD/DAT MD deck
CD/SACD CD player
TUNER Built-in tuner
PHONO Turntable
See the table on page 9 for information on
the buttons that you can use to control each
component.
N X
m M
. >
-
VIDEO1 VIDEO2
USE MODE
SYSTEM STANDBY SLEEP
AV1 AV2
M1 M2
2ND
TV ?/1 AV ?/1
VIDEO3 DVD/LD
TV/SAT TAPE MD/DAT CD/SACD
TUNER PHONO MULTI CH SOURCE
SHIFT
TOP MENU/
GUIDE AV MENU
MUTING
MASTER
VOL
DISPLAY
TV VOL TV CH
WIDE ON SCREEN
TV/
VIDEO
MAIN
MENU
RETURN/EXIT
D.TUNING DISC ALT
ANT CLEAR SEARCH MODE
TEST
TONE PRESET
1 2 3
4 5 6
7 8 9
0/10 >10/11 12
AUTO DEC
SUBTITLE ENTER
MODE
AUDIO
SWAP/
ANGLE
JUMP/
TIME
PRESET/
CH/D.SKIP
MPX/
DUAL
ANALOG
DIRECT 2CH
SOUND FIELD
x
?/1
P
O
f
F
G g
1
2
3
4
5
6
7
8
9
0
