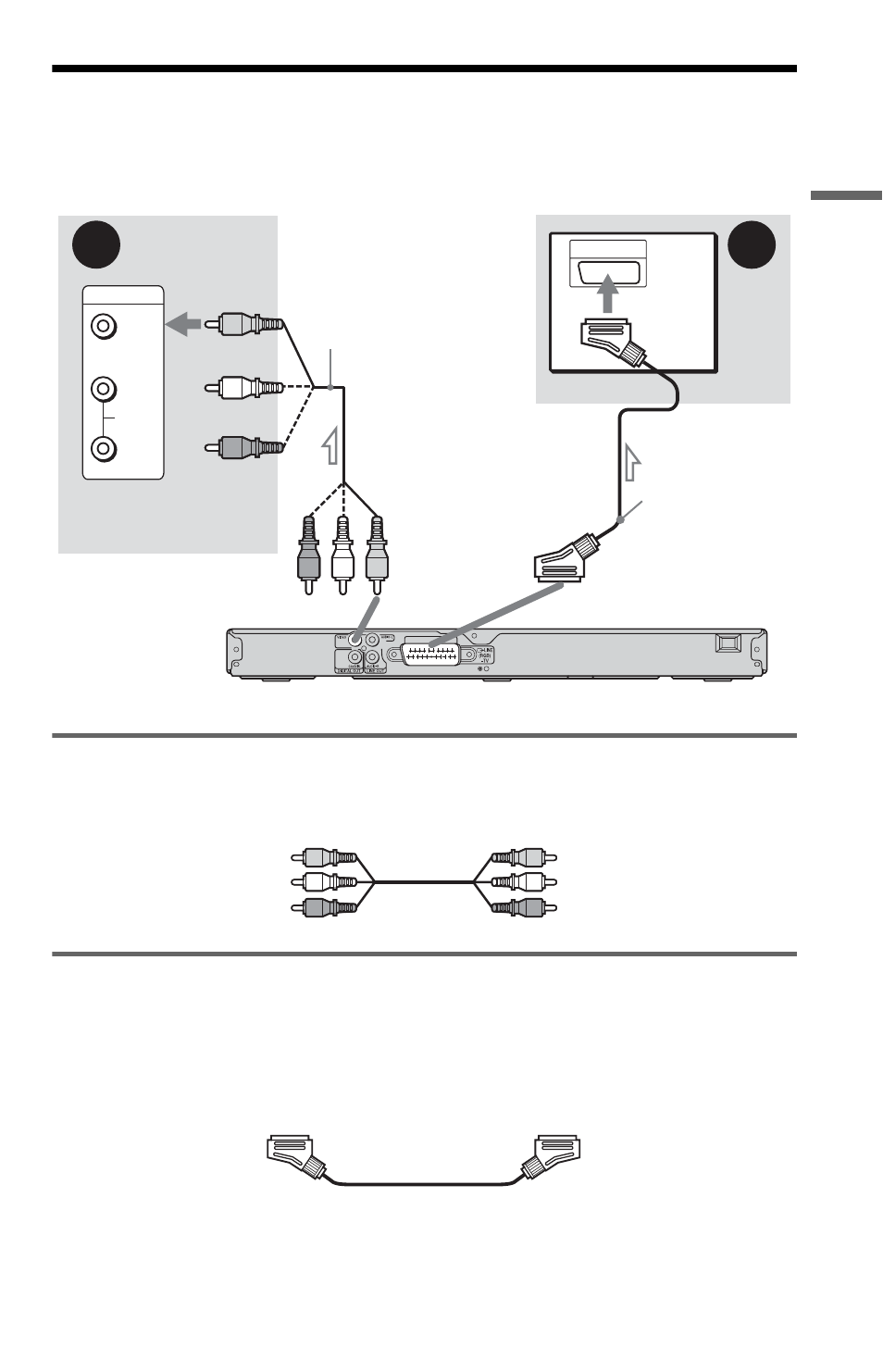

Step 3: Connecting the Video Cords
Connect this player to your TV monitor, projector, or AV amplifier (receiver) using a video cord.
Select one of the patterns A through B, according to the input jack on your TV monitor,
projector, or AV amplifier (receiver).
A
If you are connecting to a video input jack
Connect the yellow plug of an audio/video cord (supplied) to the yellow (video) jack. You will
enjoy standard quality images.
B
If you are connecting to a SCART input jack
Connect a SCART cord (not supplied). Be sure to make the connections firmly to avoid hum and
noise. When you connect using the SCART cord, check that the TV conforms to S video or RGB
signals. Refer to the operating instructions supplied with the TV to be connected. Also, when
you set “LINE” to “S VIDEO” or “RGB” under “SCREEN SETUP” in the Setup Display
(page 63), use a SCART cord that conforms to each signal.
A
VIDEO
AUDIO
INPUT
L
R
B
L C E N T E R
INPUT
Audio/video cord
(supplied)
(yellow)
TV, projector, or AV
amplifier (receiver)
to LINE OUT (VIDEO)
to LINE (RGB)-TV
TV
l : Signal flow
SCART cord
(not supplied)
(yellow)
CD/DVD player
Yellow
White (L)
Red (R)
Yellow
White (L)
Red (R)
, continued
