17
ASSEMBLY

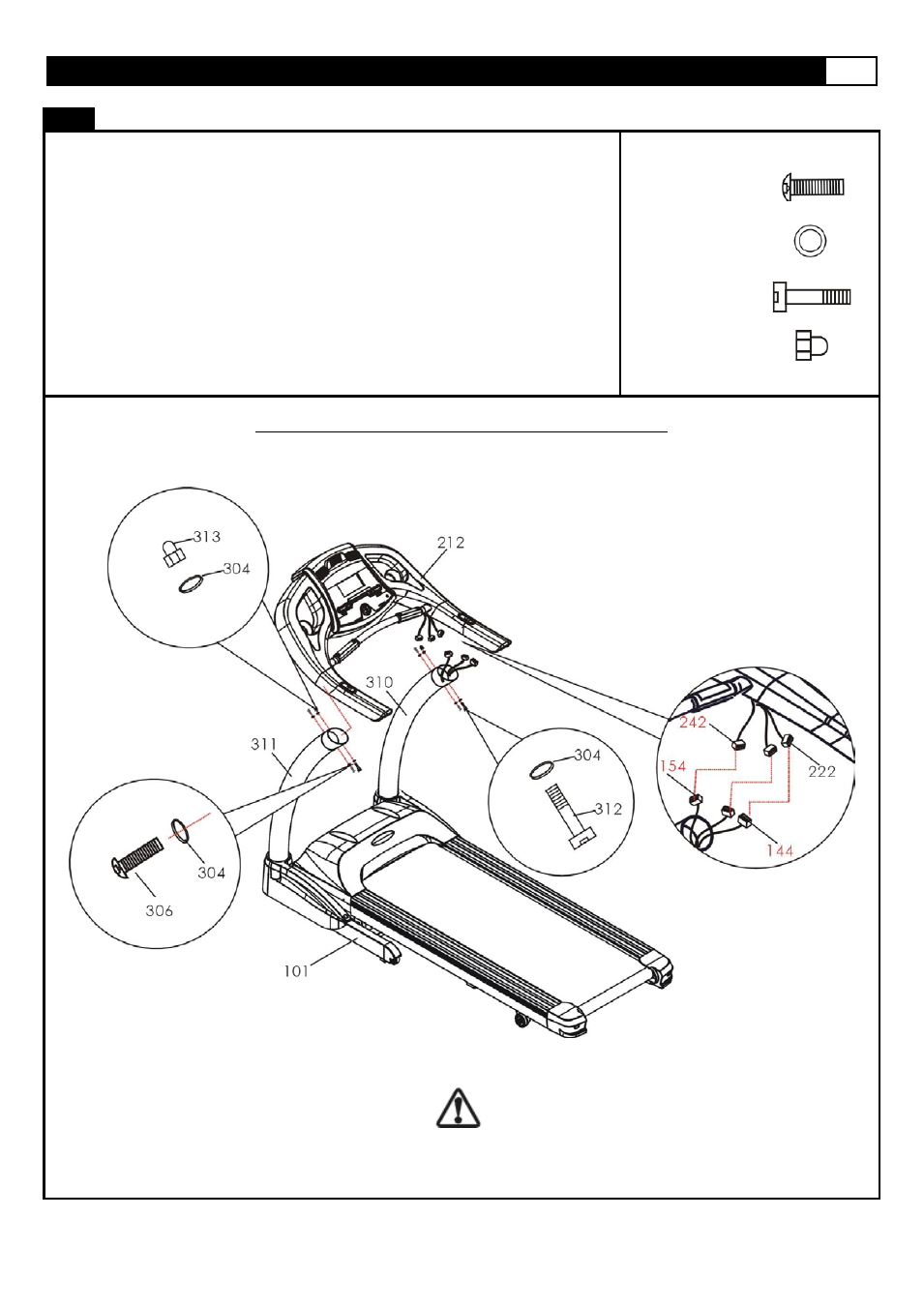

STEP 3: Attach the Console to Left and Right Uprights
(1) Connect Upper Console Wire (from console) and Lower Console Wire
(from Right Upright) as shown below (222 to 144). Connect the adaptor
wire (244 to 154).
(2) Place the console housing over the Left and Right Uprights and secure using
the 2 x M8x100mm Allen Head Bolt (312) with 2 x M8 Flat Washer (304)
Insert the bolt through the upper hole. Then attach the M8 Flat Washers (304)
and M8 Nut (313).
(3) Secure the lower bolt hole with the M8x15mm Allen Head Bolt (306) with
M8 Flat Washer (304).
TIGHTEN ALL BOLTS NOW
306
X4
304
X8
312
X2
313
X2
Caution Pinch point! Do not pinch wires between frame.
Tighten all bolts and fasteners now
