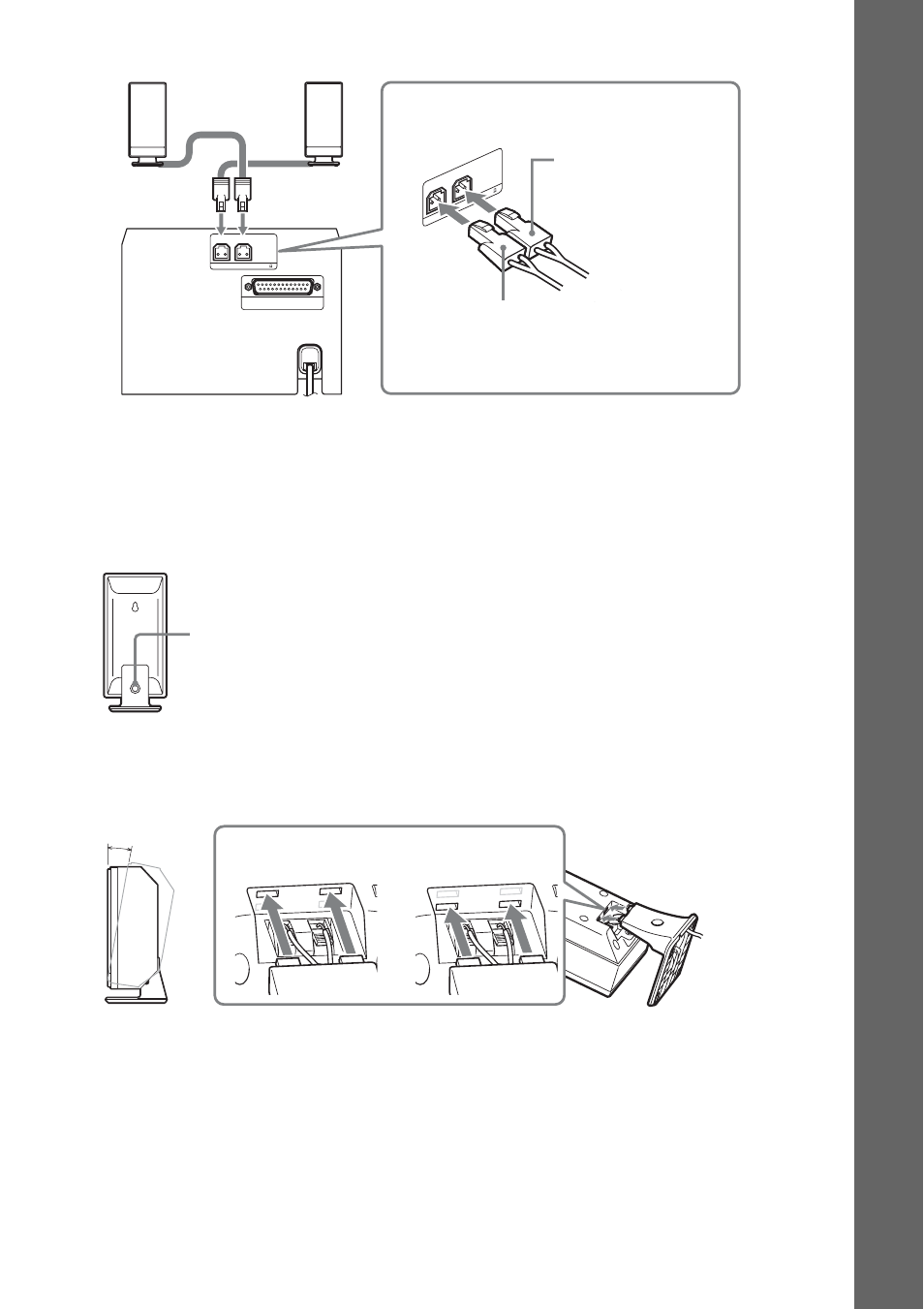

To set the speakers at an angle
You can select the angle for the front speaker: 0° and 10°. (The speakers are set to an angle of 10° at
shipping.)
1
Remove the screw (pre-installed) at the rear of the speaker.
2
Detach the speaker stand.
3
Reattach the speaker stand by engaging the protrusions on the stand in the holes for
either angle 0° or 10°.
SPEAKER
IMPEDANCE USE 3
FRONT R
FRONT L
SYSTEM CONTROL
ONLY FOR HCD-F200
SPE
AKE
R
IMP
EDA
NC
E U
SE 3
FRONT R
FRONT L
Bottom of the subwoofer
Red (Front speaker (R))
White (Front speaker (L))
Front speaker (R)
Front speaker (L)
Screw (pre-installed)
0° or 10°
Angle: 0° (vertical)
Angle: 10°
