English
Adjusting the sound quality
(Digital Sound Preset)
(See Fig.G,H)
You can make adjustments to the sound quality to suit your
taste, and then store two sets of these adjustments.
1 Press SOUND on the remote control repeatedly to select
“SOUND1” or “SOUND2.” (see Fig. H-A)
2 During playback, press SOUND on the remote control for 2
seconds or more (see Fig. H-A).
The player changes to the bass-setting mode. Pressing
SOUND for 2 seconds again changes the player to the treble-
setting mode.
3 Turn the control on the remote control repeatedly to adjust
the bass or the treble (see Fig. H-B).
When you press SOUND for more than 2 seconds while
adjusting the bass, the display switches to the treble (or vice-
versa).
When you press SOUND for a short time while adjusting the
bass or the treble, the setting for that sound is entered and
the display switches to the other sound setting.
4 Press RPT/ENT on the remote control.
The sound settings are stored and the playback display
appears again.
To select a preset sound
Press SOUND on the remote control repeatedly to select
“SOUND1,” “SOUND2.”
Selecting no display turns off the digital sound preset function.
Digital sound preset factory settings
The digital sound preset factory settings are as follows:
• “SOUND1”: bass +1, treble ±0
• “SOUND2”: bass +3, treble ±0
Tip
You can also set the digital sound preset when playback is momentarily
paused.
Notes
• Settings cannot be changed through the operation buttons on the
player.
• When you use the digital sound preset function, the sound may break
or become distorted depending on the settings or the track. In this
case, change the settings of the sound quality.
Protecting your hearing (AVLS)
(See Fig. G,I)
AVLS (Automatic Volume Limiter system) function keeps down
the maximum volume to protect your ears.
1 During playback, press DISPLAY on the remote control for 2
seconds or more.
2 Turn the control on the remote control repeatedly until
“AVLS” flashes in the display and press x on the remote
control.
3 Turn the control on the remote control repeatedly until
“AVLS ON” flashes in the display and press x on the
remote control.
“AVLS ON” appears in the display.
To set the AVLS function on the player
During playback, slide HOLD towards . , and then while
pressing VOL –, slide HOLD in the opposite direction.
To cancel the AVLS function
On the remote control, select “AVLS OFF” and press x on the
remote control in step 3. Or on the player, during playback,
slide HOLD in the direction of ., and then while pressing
VOL +, slide HOLD in the opposite direction.
Turning off the beep sound
(See Fig. G)
You can turn off the beep sound in the headphones/earphones.
1 Press DISPLAY on the remote control for 2 seconds or more.
2 Turn the control on the remote control repeatedly until
“BEEP” flashes in the display, and then press x on the
remote control.
3 Turn the control repeatedly until “BEEP OFF” flashes in the
display, and then press x on the remote control.
To turn on the beep sound
Select “BEEP ON” and press x on the remote control in step 3.
Locking the controls (HOLD) (See Fig. J)
1 Slide HOLD on the remote control in the direction of the
. to lock the controls on the remote control and slide
HOLD on the player in the direction of the . to lock the
controls of the player.
To unlock the controls
Slide HOLD to the opposite directions of the arrows.
B Additional information
Precautions
On safety
• Make sure to keep the player in the supplied carrying pouch. If the
terminals on the player, battery charging stand, or battery case are
accidently brought into contact with a metallic object, they may short-
circuit and begin to heat up.
• Keep the terminals on the player or on the battery case away from
metallic objects or surfaces. Such contact may short-circuit the
terminals and cause dangerous heat generation. When carrying the
player with you, always keep the battery case attached to the player
and the player in the supplied carrying pouch.
• When you carry the supplied rechargeable battery, be sure to put it in
the supplied rechargeable battery carrying case. Carrying the
rechargeable battery without the case may cause a short-circuit with
metallic objects such as coins, key rings, or necklace. As a result, heat
may be generated.
• Do not put any foreign objects in the DC IN 3V jack.
• Do not carry or store the dry battery or battery case in the same place
with metallic objects such as coins, key rings, or necklaces. This may
cause a short-circuit to occur and heat to generate.
• Incorrect battery usage may lead to leakage of battery fluid or bursting
batteries. To prevent such accidents, observe the following
precautions:
— Install batteries with the + and – poles aligned correctly.
— Do not charge dry batteries.
• If a battery leak should develop, carefully and thoroughly wipe away
battery fluid from the battery compartment before inserting new one.
• If you are not going to use this player for a long time, be sure to
disconnect the power supply (AC power adaptor, dry battery,
rechargeable battery, or battery charging stand). To remove the AC
power adaptor from the electrical outlet, grasp the adaptor plug itself;
never pull the cord.
On the AC power adaptor (for the supplied
battery charging stand)
• For use in your house: Use the supplied AC power adaptor
AC-E30HG. Do not use any other AC power adaptor since it may
cause the player to malfunction.
Polarity of the plug
• Position the player within easy reach of the electrical outlet. Should
you notice an abnormality in the player, disconnect the AC power
adaptor from the electrical outlet immediately.
On charging
• The supplied battery charging stand can be used only with the
MZ-E501. It cannot be used to charge all other models.
• Do not use the MZ-E501 to charge any other battery besides the one
designated for it.
• Though the battery charging stand and the battery may become hot
during the charging procedure, this poses no danger.
• Because of the battery’s character, the capacity of the battery may be
smaller than normal when it is used for the first time or after a long
period of disuse. In this case, charge and discharge the battery several
times. The normal battery life will be restored.
• If the capacity of the rechargeable battery becomes half the normal life,
replace it with a new one.
• As soon as charging is complete, remove the player from the battery
charging stand and disconnect the battery charging stand from the
electrical outlet. Leaving it connected may result in reduced battery
performance.
• The CHARGE lamp will go off about 6 hours of after you place the
player on the battery charging stand. If you remove the player from
the battery charging stand for 3 seconds or more while it is charging,
the CHARGE lamp will go off. It will then take about 6 hours for the
lamp to go off from the time you next place the player on the battery
charging stand.
On Handling
• Do not drop or bump the player. This may cause the player to
malfunction.
• Do not pull on the remote control or headphones/earphones cords.
• Do not place the player in the following places:
— An extremely hot place (over 60°C (140°F))
— A place exposed to direct sunlight or near a heater
— In a car with the windows rolled up (especially in the summer)
— In a damp place such as a bathroom
— Near a source of electromagnetic fields such as a magnet, speaker, or
TV
— In a dusty place
On heat build-up
Heat may build up in the player if it is used for an extended period
of time. This, however, is not a malfunction.
On mechanical noise
The player gives out mechanical noise while operating, which is
caused by the power-saving system of the player. This is not a
malfunction.
On installation
• Never use the player where it will be subjected to extremes of light,
temperature, moisture or vibration.
• Never wrap the player in anything when it is being used with the AC
power adaptor. Heat build-up in the player may cause malfunction or
injury.
On the remote control
The supplied remote control is designed for use with the MZ-E501
only. Note also that the player cannot be controlled by remote
controls for other models.
On the MiniDisc cartridge
• Do not touch the internal disc directly. Forcing the shutter open may
damage the internal disc.
• When transporting a minidisc, keep it in its case.
• Do not place the cartridge where it will be subjected to light,
temperature, moisture or dust.
• Do not affix the lable outside of the specified area on the MD. Make
sure the lable is placed within the recessed space on the disc.
On the headphones/earphones
Road safety
• Do not use headphones/earphones while driving, cycling, or operating
any motorized vehicle. It may create a traffic hazard and is illegal in
many areas. It can also be potentially dangerous to play your player at
high volume while walking, especially at pedestrian crossings. You
should exercise extreme caution or discontinue use in potentially
hazardous situations.
• If you experience an allergic reaction to the supplied headphones/
earphones, stop using them at once and consult a doctor or a Sony
service center.
Preventing hearing damage
Avoid using headphones/earphones at high volume. Hearing
experts advise against continuous, loud and extended play. If you
experience a ringing in your ears, reduce the volume or discontinue
use.
Caring for others
Keep the volume at a moderate level. This will allow you to hear
outside sounds and to be considerate of the people around you.
On the battery case
The supplied battery case is designed for use with the MZ-E501 only.
On cleaning
• After wiping the player casing with a soft cloth slightly moistened with
water, wipe it again with a dry cloth. Do not use any type of abrasive
pad, scouring powder or solvent such as alcohol or benzene as it may
mar the finish of the casing.
• Wipe the disc cartridge with a dry cloth to remove dirt.
• Dust on the lens may prevent the unit from operating properly. Be
sure to close the disc compartment lid after inserting or ejecting an
MD.
• A dirty plug may cause noise or intermittent breaks in the sound
during playback. To maintain good sound quality, use a soft cloth to
clean the plugs of the headphones/earphones and remote control.
On maintenance (see Fig. K )
If you have any questions or problems concerning your player,
please consult your nearest Sony dealer. (If a trouble occured when
the disc was in the player, we recommend that the disc be left in the
player when you consult your Sony dealer so that the cause of
trouble may be better understood.)
Troubleshooting
The player does not work or works poorly.
• You tried to play with no disc in the player (“NO DISC” flashes
on the remote control).
b Insert an MD.
• The hold function is activated and the controls are locked. (If you
press any of the operation buttons on the player, “HOLD” flashes
on the remote control.)
b Slide HOLD against the direction of the arrow to release the
hold function.
• When the remote control is enabled for the making settings
(“MENU” appears on the remote control when the buttons on the
player are pressed.)
b End the procedure for making settings using the remote
control or disconnect the remote control plug.
• Moisture has condensed inside the player.
b Take the MD out and wait for several hours until the moisture
evaporates.
• The rechargeable battery or dry battery is weak (“LOW BATT”
flashes on the remote control).
b Replace a new dry battery or recharge the battery.
• The rechargeable battery or dry battery has been installed
incorrectly.
b Install the battery with correct polarity.
• An MD with no recording on it is inserted (“BLANKDISC”
flashes on the remote control).
b Insert a recorded MD.
• The player cannot read the disc. (it’s scratched or dirty)
(“DISC ERR” flashes on the remote control.)
b Reinsert or replace the disc.
• While operating, the player received a mechanical shock, too
much static, abnormal power voltage caused by lightning etc.
b Restart as follows.
1 Disconnect all the power sources.
2 Leave the player for about 30 seconds.
3 Connect the power source.
The MD does not play normally.
• The player is set to repeat mode. (“ ” is displayed on the remote
control.)
b Press PLAYMODE repeatedly until “ ” disappears, then
start playing.
• The disc is playing in group mode.
b Turn off group mode.
The digital sound preset function does not function.
• The digital sound preset function is off.
b Press SOUND on the remote control repeatedly to select
“SOUND1” or “SOUND2.”
Playback sound skips.
• The player is placed where it receives continuous vibration.
b Put the player on a stable place.
• A very short track may cause sound to skip.
Sound has a lot of static.
• Strong magnetism from a television or such device is interfering
with operation.
b Move the player away from the source of strong magnetism.
Momentary noise is heard.
• The sound was recorded in LP4 stereo mode.
b Because of the nature of the compression method used in LP4
mode, noise may be heard on very rare occasions when
playing back sound recorded in this mode.
The rechargeable battery does not start charging.
• The terminal of the battery charging stand is dirty.
b Wipe the terminal with a dry cloth.
• The rechargeable battery is not inserted in the player. (When the
player is on the battery charging stand, “NO BATT” appears on
the remote control when you press one of the operation buttons
on the player or the remote control in order to check the battery
level.)
b Insert the rechargeable battery into the player.
The CHARGE lamp does not turn on.
• The rechargeable battery is not inserted in the player.
b Insert the rechargeable battery into the player.
The player does not operate properly.
• The player is operating while placed on the battery charging
stand.
b Remove the player from the battery charging stand.
• An attempt was made to enter group mode with program play
selected.
b Change to group mode before selecting program play.
No sound comes through the headphones/earphones.
• The headphones/earphones plug is not firmly connected.
b Connect the headphones/earphones plug firmly to the remote
control.
b Connect the headphones/earphones plug firmly to the i jack.
• AVLS is on.
b Cancel the AVLS function. For more details, see “To cancel
the AVLS function” in “Protecting your hearing.”
The group function (group mode/group skip mode) does not
function.
• An attempt was made to enter group mode while using a disc
that has no group settings. (“NO GROUP” appears on the
remote control.)
b Use a disc with group settings.
• An attempt was made to enter group mode while playing a track
that belongs to no group. (“Invalid GP” appears on the remote
control.)
b The group function cannot be used while a track that belongs
to no groups is playing. Select the track that belongs to group
using group skip mode. For more details, see “Selecting and
playing desired groups.”
• An attempt was made to enter group mode with program play
selected.
b Change to group mode before selecting program play.
Specifications
Audio playing system
MiniDisc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength:
λ = 790 nm
Emission duration: continuous
Laser output: less than 44.6 µW*
* This output is the value measured at a distance of 200 mm from the
objective lens surface on the optical pick-up block with 7 mm aperture.
Revolutions
Approx. 300 rpm to 2,700 rpm
Error correction
ACIRC (Advanced Cross Interleave Reed Solomon Code)
Sampling frequency
44.1 kHz
Coding
ATRAC (Adaptive TRansform Acoustic Coding)
ATRAC3: LP2
ATRAC3: LP4
Modulation system
EFM (Eight to Fourteen Modulation)
Number of channels
2 stereo channels
1 monaural channel
Frequency response
20 to 20,000 Hz ± 3 dB
Wow and Flutter
Below measurable limits
Outputs
Headphones/earphones: stereo mini-jack, maximum output level 5 mW +
5 mW, load impedance 16 ohms
Power requirements
Nickel metal hydride rechargeable battery
One NH-14WM (supplied): 1.2V, 1,350 mAh (MIN)
One LR6 (size AA) battery (not supplied)
External power jack: Power rating 3V DC
Battery operation time
See “When to replace or recharge the battery”
Dimensions
Approx. 74.5 Ч 80.5 Ч 17.9 mm (w/h/d) (3 Ч 3 1 / 4 Ч 23 / 32 in.)
(not including projecting parts and controls)
Mass
Approx. 80 g (2.8 oz) (the player only)
Supplied accessories
Headphones/earphones with a remote control (1)
Battery charging stand (assembly needed)(1)
AC power adaptor (1)
Rechargeable battery (1)
Rechargeable battery carrying case (1)
Dry battery case (1)
Carrying pouch (1)
AC plug adaptor (1) (world model only)
US and foreign patents licensed from Dolby Laboratories.
Design and specifications are subject to change without notice.

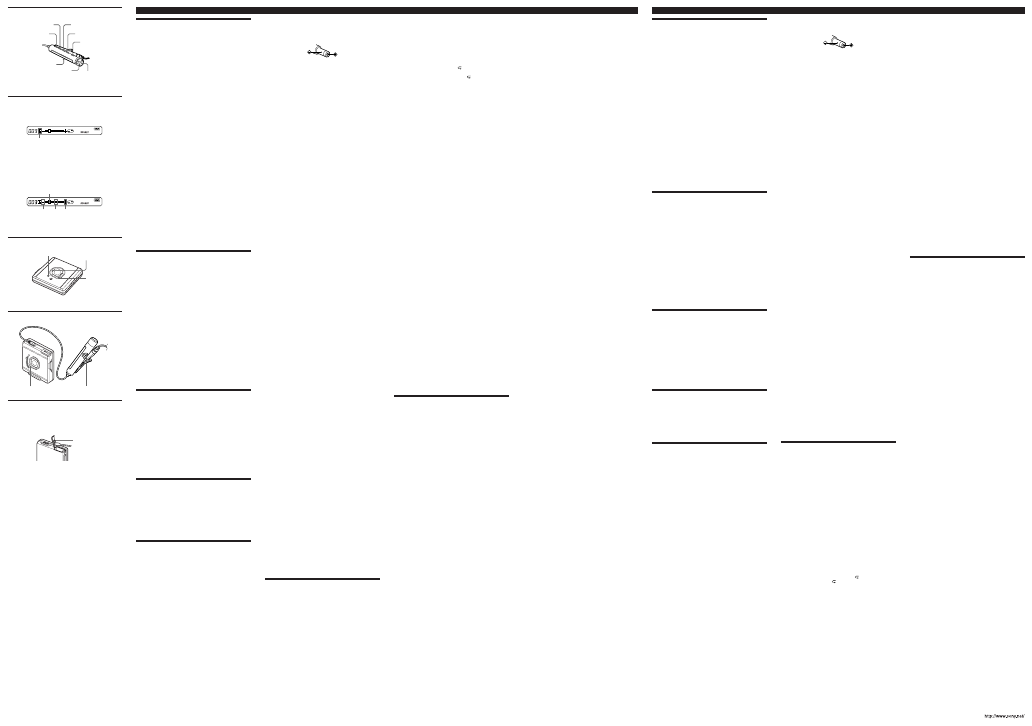

G
./N>
VOL +/–
HOLD
DISPLAY SOUND
PLAYMODE RPT/ENT
x
X
H
A
When you select bass-setting mode, “B” appears. When you
select treble-setting mode, “T” appears.
B
Example: While adjusting the bass,
the cursor moves. (Position: –2)
–
–4 ±0 +3
The sound can be adjusted in eight steps, from –4 to +3.
– +
I
GROUP
HOLD
J
HOLD HOLD
K
Clean the terminals periodically with a cotton swab or a
soft cloth as illustrated.
3 Color Info-LED
Optional accessories
NH-14WM Nickel metal hydride rechargeable battery
CPA-9C Car connecting pack
MDR series stereo headphones/earphones*
SRS series Active Speakers
Carrying pouch
* Whether you should plug the headphones/earphones directly to the i
jack on the main unit or to a remote control, use only headphones/
earphones with stereo mini plugs. Headphones/earphones with a
microplug cannot be used.
Your dealer may not handle some of the above listed accessories. Please
ask the dealer for detailed information about the accessories in your
country.
Terminals
G H
1
H A
2 H
A
3 H B
4
• + ±
• + ±
•
•
G I
1
2
x
3
x
. –
x
.
+
G
1
2
x
3
x
x
J
1 .
.
B
•
•
•
•
•
•
+ –
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
K
•
b
•
b
•
b
•
b
•
b
•
b
•
b
•
b
•
b
1
2
3
•
b
•
b
•
b
•
b
•
•
b
•
b
•
b
•
b
•
b
•
b
•
b
•
b
b
i
•
b
•
b
•
b
•
b
±
i
