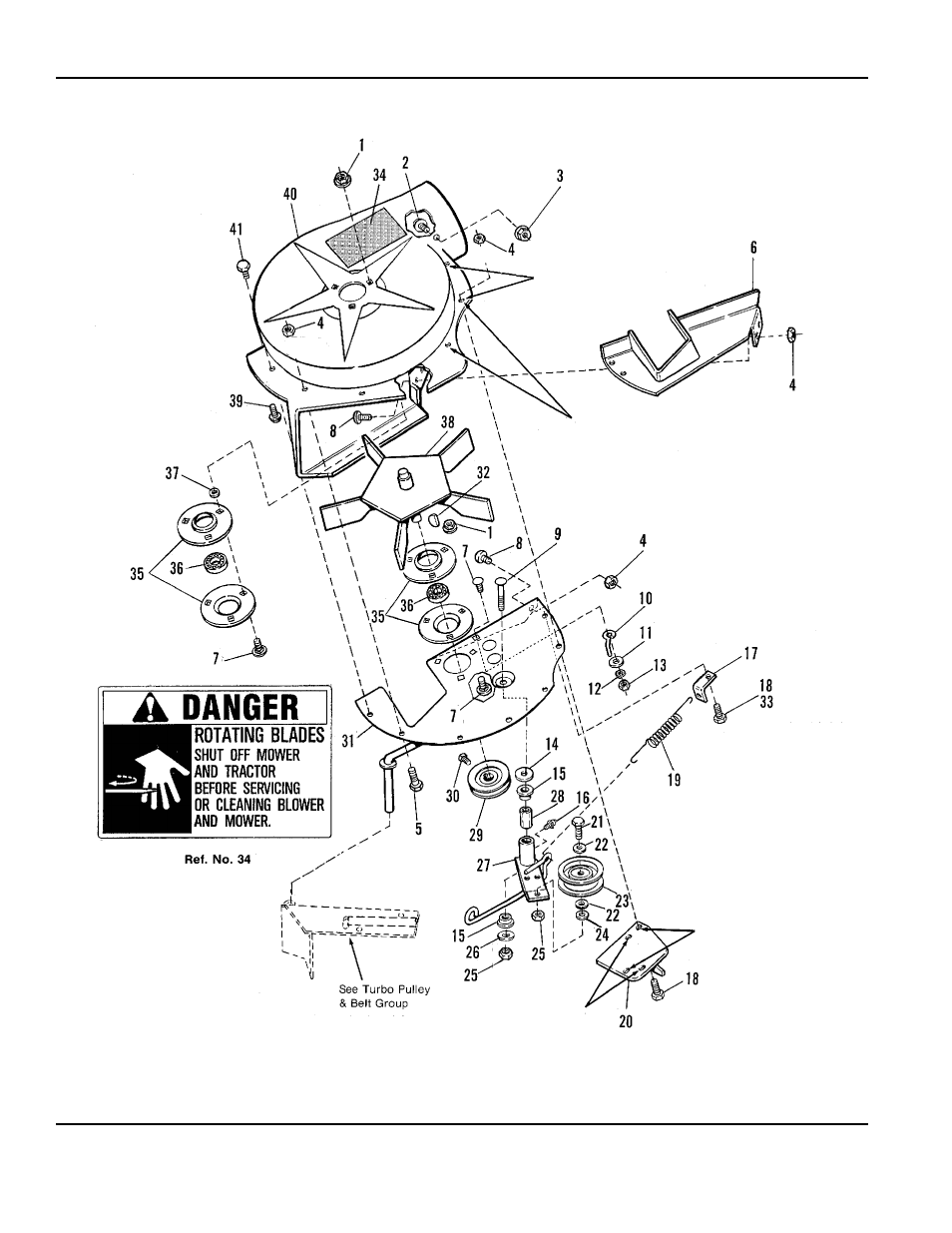

50” Turbo, Blower Group - 1693228
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-AT43216A
The above parts group applies to the following Mfg. Nos.:
1693228, 50” Turbo
Mounting Holes for 44”
& 50” Turbo Bracket
Assy, Ref. No. 20
Mounting Holes for 38”
Turbo Bracket Assy,
Ref. No. 20
Mounting Holes
for 38” Turbo
Mounting Holes for
44” & 50” Turbo
NOTE: All original mower deck
parts are shown as phantom parts.
(38”)
(44”)
