F N - 3 C R O S S O V E R
FN-3
2 w a y C r o s s o v e r
INPUT
WOOFER
TWEETER
+
-
-
-2dB
+
0dB
-

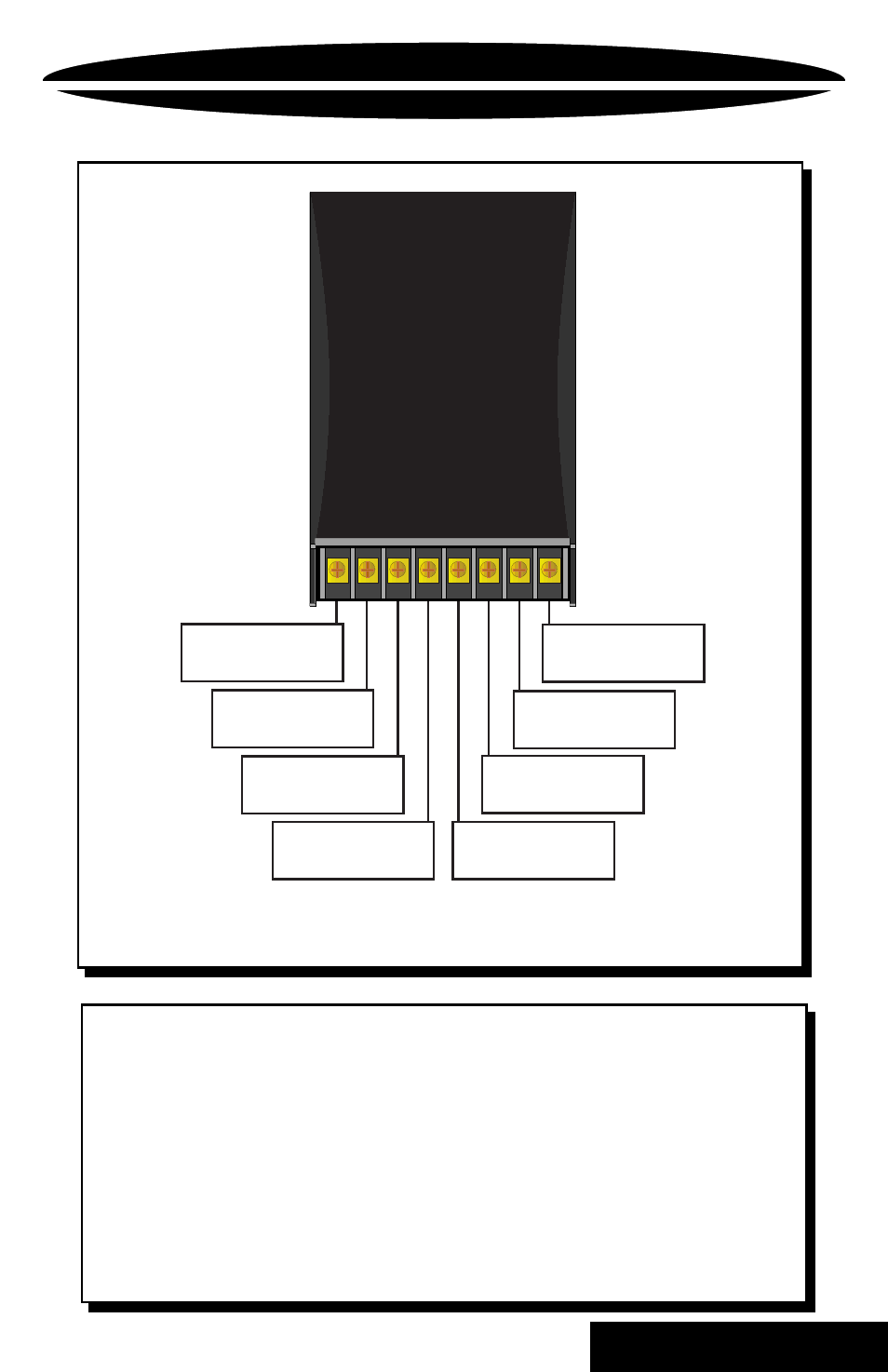

Connect to the amplifier
(+) POSITIVE
speaker output
Connect to the amplifier
(-) NEGATIVE
speaker output
Connect to the Midrange
(+) POSITIVE
speaker terminal
Connect to the Midrange
(-) NEGATIVE
speaker terminal
Connect to the Tweeter
(+) POSITIVE speaker
terminal [no attenuation]
Connect to the Tweeter
(+) POSITIVE speaker
terminal [-2dB attenuation]
Connect to the Tweeter
(-) NEGATIVE
speaker terminal
This Terminal
Is Not Used
F N - 3 C R O S S O V E R
S P E C I F I C AT I O N S
Mounting Length
5.115”
Mounting Width
3.335”
Mounting Depth
1.515”
F R E Q U E N C I E S
Tweeter High Pass
4 kHz
Woofer Low Pass
2.2 Hz
Make sure all connections are tight to prevent electrical shorts.
