20 SV35 Series SATA Product Manual, Rev. D

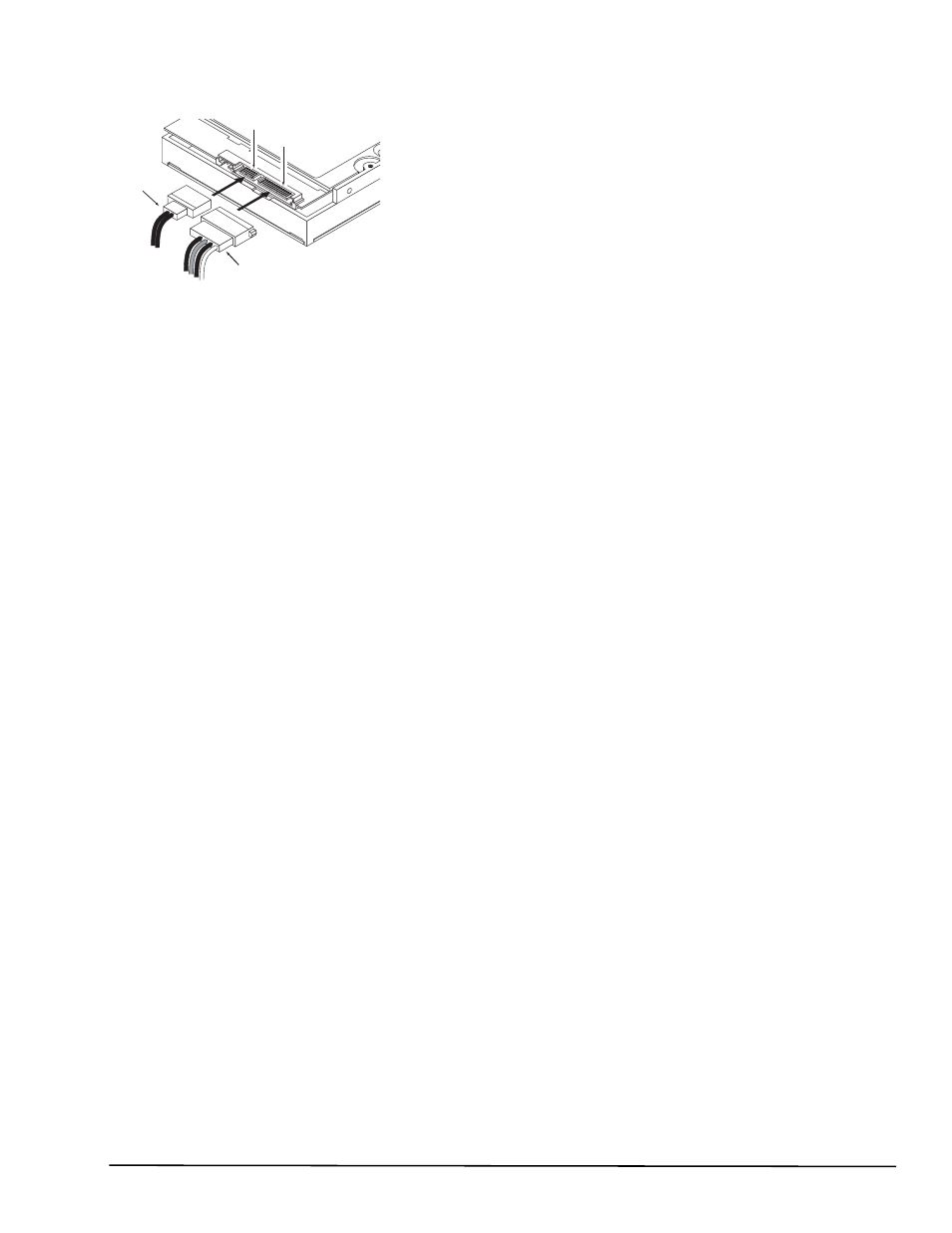

Figure 3. Attaching SATA cabling
Power cable
Signal cable
Signal connector
Power connector
Each cable is keyed to ensure correct orientation. SV35 Series SATA drives support latching SATA connectors.
3.4 Drive mounting
You can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bot-
tom-mounting holes. See Figure 4 for drive mounting dimensions. Follow these important mounting precautions
when mounting the drive:
• Allow a minimum clearance of 0.030 inches (0.76mm) around the entire perimeter of the drive for cooling.
• Use only 6-32 UNC mounting screws.
• The screws should be inserted no more than 0.150 inch (3.81mm) into the bottom or side mounting holes.
• Do not overtighten the mounting screws (maximum torque: 6 inch-lb).
