Chapter 2
Location and Function of Parts
Chapter 2 Location and Function of Parts
2-1
Chapter
2
Location and Function
of Parts

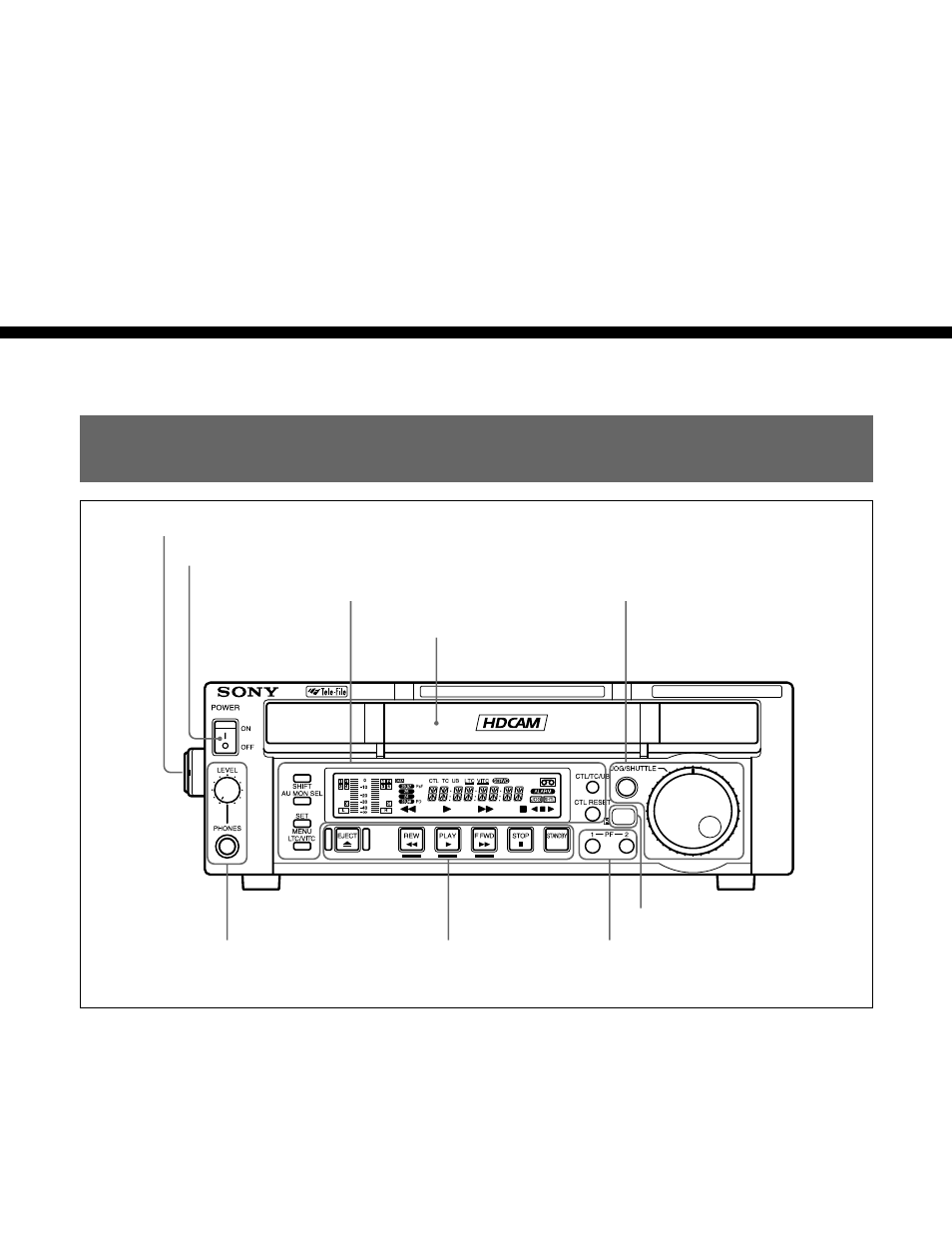

2-1 Control Panel
1 Carrying handle
Use this handle to carry the unit or to stand the unit
vertically.
2 POWER switch
Press the side of the POWER switch marked “ON” to
turn the unit on. The fluorescent display on the control
panel lights.
Press the side of the POWER switch marked “OFF” to
turn the unit off.
3 Cassette compartment
Insert an S or L cassette into this compartment.
1 Carrying handle
2 POWER switch
3 Cassette compartment
6 PHONES (headphones)
jack and control knob
Display section
(See page 2-2) Search control section
(See page 2-5)
Tape transport control
section (See page 2-6)
4 Remote control detector
5 PF-1/2 (PROGRAMMABLE
FUNCTION-1/2) button
This illustration shows the J-H3.
