– 9 –
4.4 Presenter Motor General Specifications
Model: Mabuchi Motor FK-180SH
Rated Voltage: 24.0 V
Voltage Range for Use: 21.6 V to 26.4 V (24.0 V ±10%)
Peak Current: Approximately 1.0 A (24 VDC, 25
°
C)
Average Current: Approximately 0.2 A (24 VDC, 25
°
C, including at startup.)
Usage Temperature Range: -15
°
C to +60
°
C
No Load Current: Max. 30 mA
No Load Revolutions: 6600
±
850 rpm
Rated Load Current: Max. 110 mA
Rated Load Revolutions: 5000
±
650 rpm
Direction of Rotation: At Discharge: CW (Clockwise direction when looking from the motor output
shaft.)
At Recovery: CCW (Counterclockwise when looking from the motor
outputshaft.)
DC Motor Drive
Speed Control: None
Drive and Control: Voltage (24.0 V) is applied to the DC motor when stopped to start it.
Brake Control: Stops by shorting terminals. Shorting time is 200 ms.
Paper Discharge Speed: 300 mm/sec
Note 1: The above paper discharge speed reflects the value for recommended paper (thickness
of 65 mm) and a receipt length of 75 mm.
Note 2: The above paper discharge speed varies according to the environment of use (tempera-
ture, humidity, power voltage fluctuations, etc.).

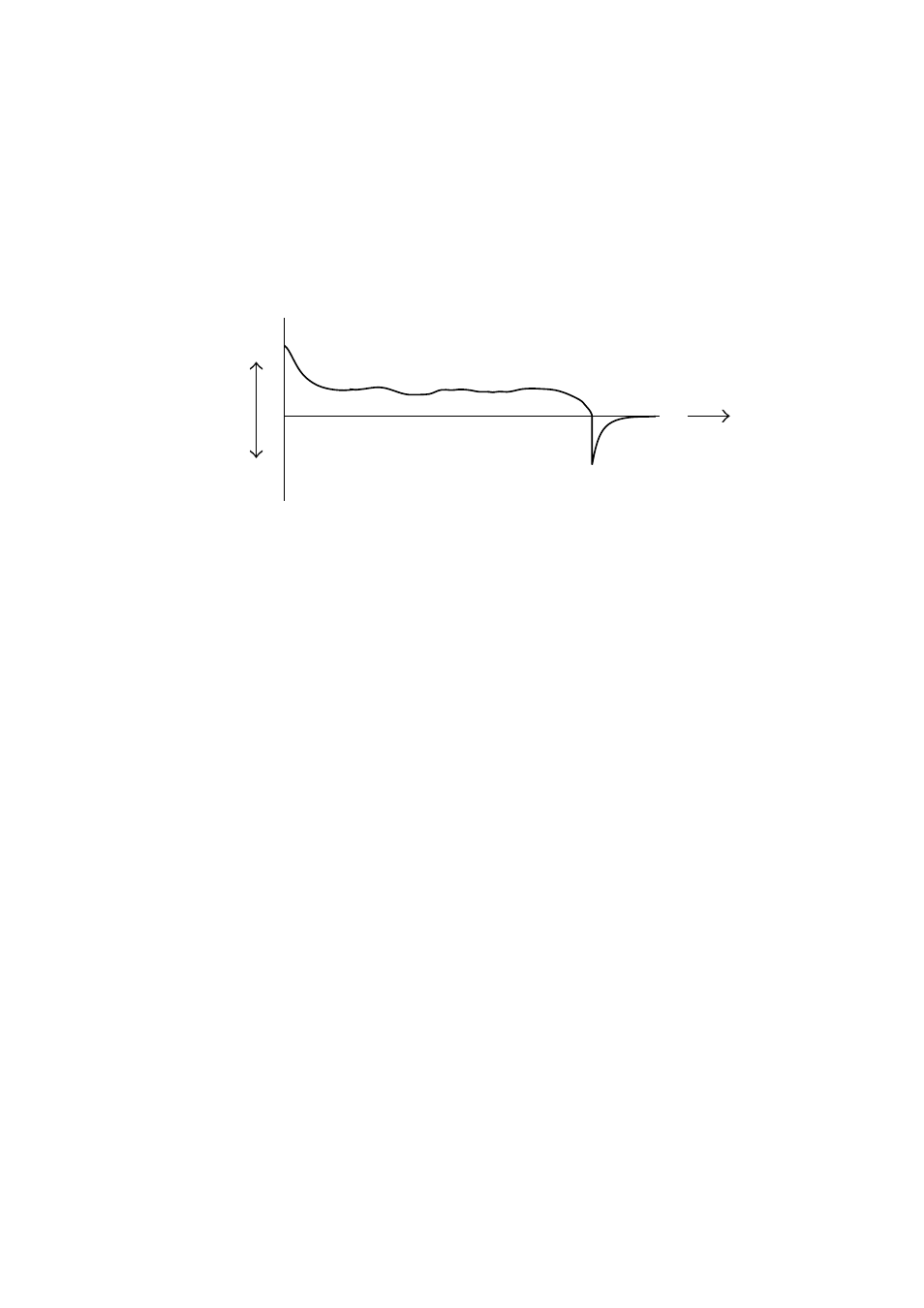

Current (A)
Time (T)
