A
DVANCED
S
ETUP
4-23

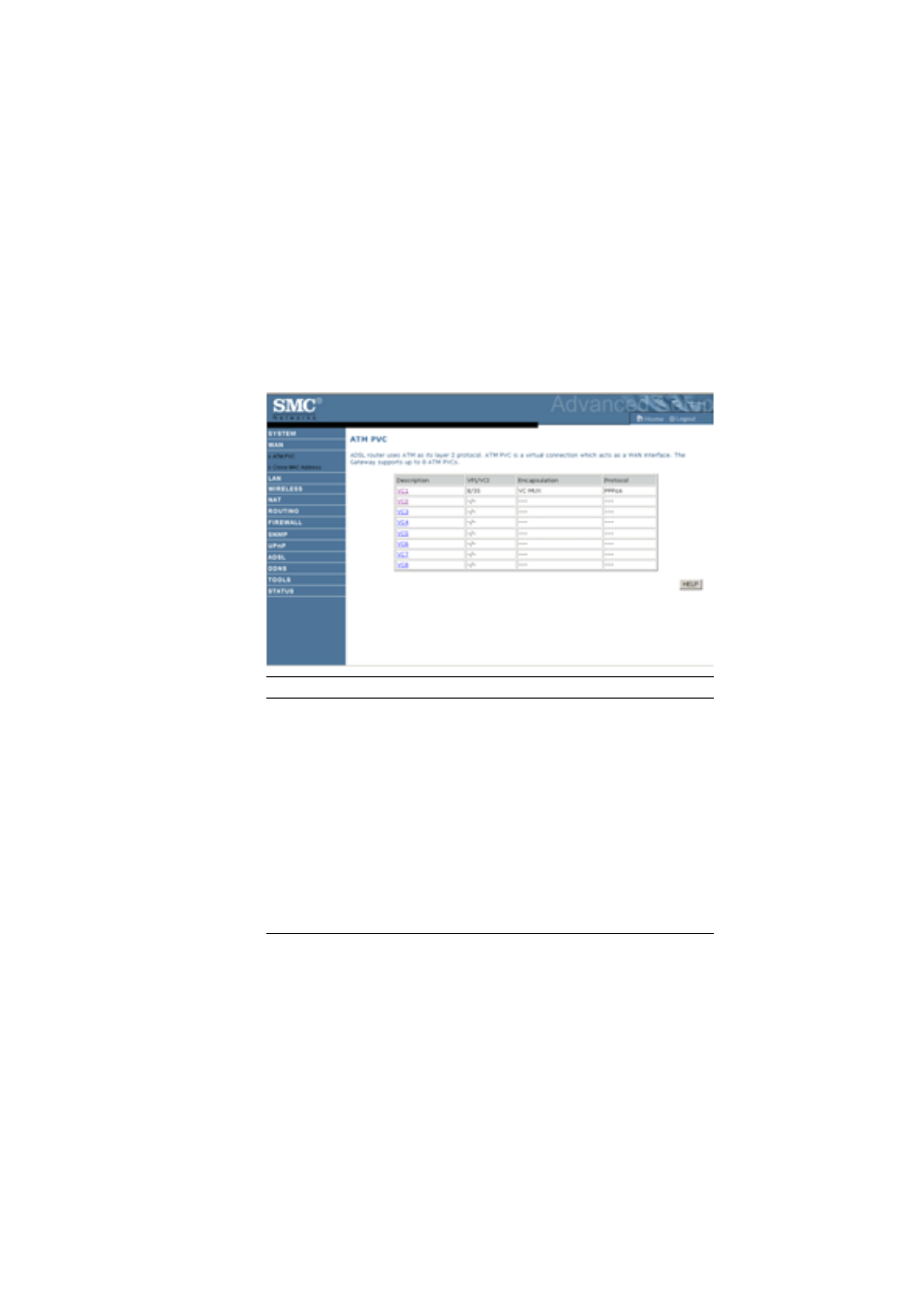

ATM PVC
Enter the ATM (Asynchronous Transfer Mode) virtual connection
parameters here.
Parameter Description
Description Click on the VC to set the values for the connection.
VPI/VCI Virtual Path Identifier (VPI) and Virtual Circuit Identifier
(VCI).
Encapsulation Specifies how to handle multiple protocols at the ATM
transport layer.
• VC-MUX: Point-to-Point Protocol over ATM Virtual
Circuit Multiplexer (null encapsulation) allows only
one protocol running per virtual circuit with less
overhead.
• LLC: Point-to-Point Protocol over ATM Logical Link
Control (LLC) allows multiple protocols running over
one virtual circuit (using slightly more overhead).
Protocol Protocol used for the connection.
