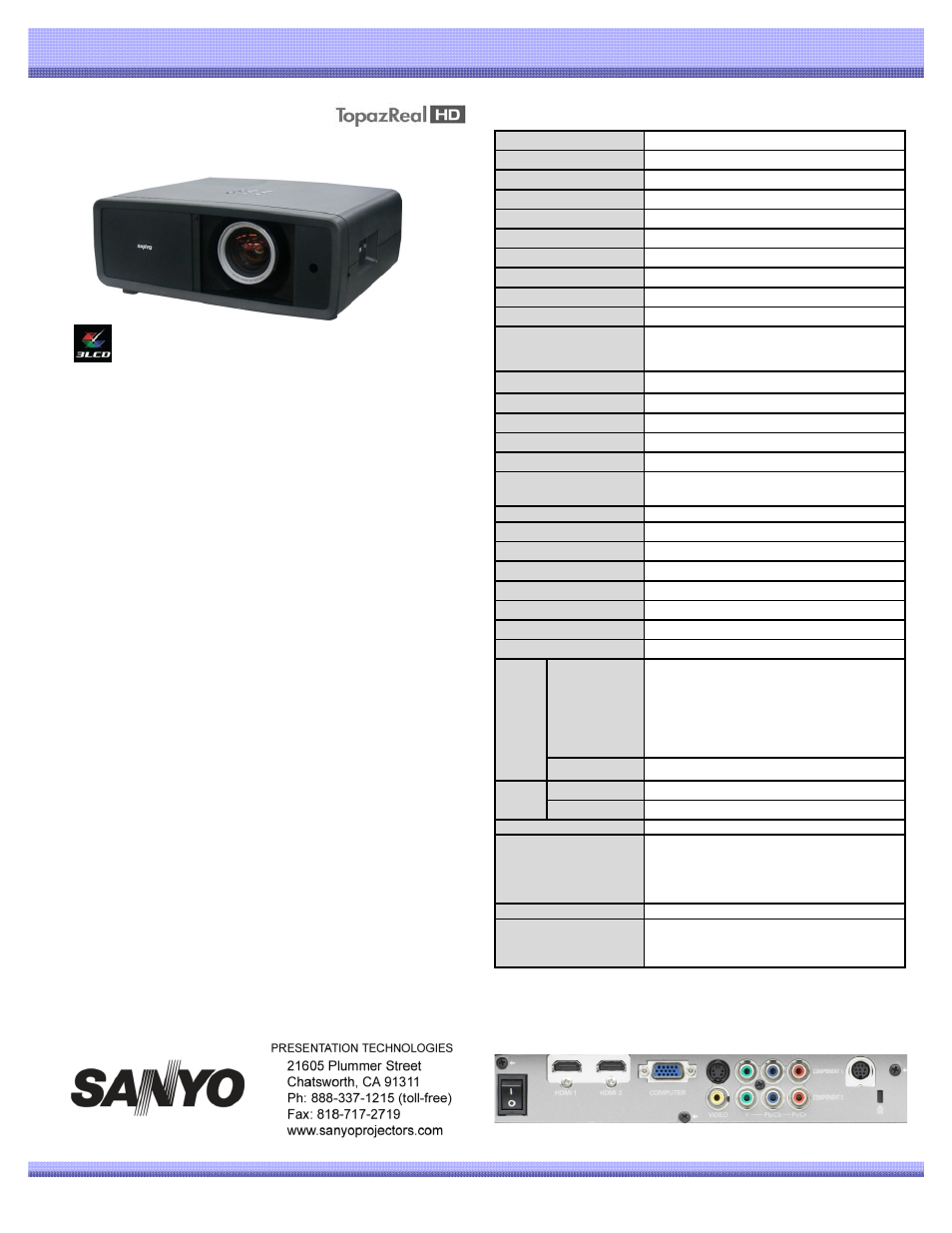

Sanyo TOPAZREAL HD PLV-Z4000 User Manual

Plv-z4000, Home entertaiment projector

PLV-Z4000

1200 ANSI LUMENS

z 1080P HD z HOME ENTERTAIMENT PROJECTOR

HOME ENTERTAIMENT PROJECTOR

Resolution

1080p HD(1920 x 1080)

Brightness (typical)

1200 lumens

Contrast Ratio

65000:1

Image Size

40"-300"

Aspect Ratio

16:9

Projection Lamp

165W

Scanning Frequency

H:15-80kHz, V:50-100Hz

Fan Noise

19 dBA (Eco)

Voltage

100V-240V AC; 50/60Hz (auto voltage)

Power Consumption

257W(Normal), 201W(Eco)

ECO-FRIENDLY SAVES YOUR MAINTENANCE AND COST
When it is no longer in use or standby mode, a slide door comes over the
lens, thus protecting it against dust and damage. And also the PLV-Z4000
has a low power drain of 0.3 Watt in Eco-standby mode. This provides a
simple and cost effective means of ensuring that rich quality images must

3LCD

(

)

Input signal compatibility

SXGA+/SXGA/WXGA/XGA/SVGA/VGA/MAC/480i/480p

/575i/575p/720p/1080i/1080p(HDMI/Component)

1080/24(HDMI)

Color System

NTSC / PAL / SECAM / NTSC4.43 / PAL-M/N

Projection Lens (inch)

F2.0 ~ 3.0 / f0.9” ~ 1.8”

Throw Ratio

1.35 ~ 2.76:1

Throw Distance (feet)

3.9’ ~ 60.4’

Zoom / Focus

Manual

be maintained for a long time.

FULL HIGH-DEFINITION RESOLUTION – 1080p
The PLV-Z4000 unleashes the full 1920 x 1080 high-definition potential
from today’s advanced full HD sources. This means rich, deep and
accurate colors from SANYO’s exclusive TopazReal HD. TopazReal HD
brings together a team of technologies including a variable iris and lamp
reactivity, a 14-bit digital signal processing, real-focus HD lens system,
and, most importantly, a color management system that addresses
changes in color phase and color level to obtain perfect color

Up / Down Ratio

Up/Down: 3: -1 ~ -1:3 (-1V/Center/+1V)

Left/Right: 10:0 ~ 0:10 (-0.5H/Center/+0.5H)

Digital Keystone Correction

Zoom Ratio

1:2.0

Speaker Output

Weight (lbs)

16.5 lbs

Dimensions (inch) W,H,D

15.7” x 5.7” x 13.6”

Replacement Lamp

# 610 344 5120

reproduction. PLV-Z4000 uses 120Hz super-fast Full HD panel, which
can increase smoothness in videos due to doubled frame rate from 60
frames/second to 120 frames/second using interpolation frame
generation technology. The optimization of deep color from the color
management system is supported via the projector’s two HDMI 1.3 inputs.

LENS MAXIMIZATION OF IMAGE DETAIL
Rated at 1200 lumens, the PLV-Z4000 is capable of an incredible
65,000 : 1 contrast ratio for superlative black levels, even in ambient light.
Plus it has a newly-developed, high-efficiency lens that maximizes image

Replacement Remote

# 645 092 8710

Lamp Life * (hours)

3000h (Eco)

Input

PC/Video

D-sub 15 x1 (RGB)
Mini DIN 4pin x1 (S-Video)
RCA x1 (Composite Video)
RCA x3 (Component 1)
RCA x3 (Component 2)
HDMI x2 (Ver.1.3b)

details for exceptional optical performance.

ADVANCED LENS SHIFT FOR VARIOUS ROOM ENVIRONMENTS
The PLV-Z4000 is outfitted with the industry’s most advanced lens shifting
function. When coupled with the projector’s short throw capability and 2x
zoom, the PLV-Z4000 can create a large screen image in any size room
and from virtually any location. The lens shifting function allows wide-
range shifting up or down to three screen sizes and left to right to two
screen sizes. The throw design of the PLV-Z4000, which is capable of
projecting a 100-inch diagonal image from 10 to 20 feet away makes it

Audio

N/A

Output

PC/Video

N/A

Audio

N/A

Other Feature

Mini 8-pin x1 (RS232C)

Included Accessories

Power cord
VGA cable
Air blower
Remote control

Quick Reference guide
Owner’s Manual(CD-Rom)
AA battery x 2

Optional Accessories

POA MCSRL

(Serial Control Cable)

projecting a 100 inch diagonal image from 10 to 20 feet away, makes it
extremely suitable for small to mid-size home theaters.

VIRTUALLY SILENT FAN DESIGN
To promote greater enjoyment of the film and to reduce noise levels
during quiet passages of a film, the PLV-Z4000 is equipped with very
quiet fan, a large aperture, low noise Sirocco cooling fan that never rises
above 19dB in the economy mode.

Because its products are subject to continuous improvement, SANYO reserves the right to modify
product design and specifications without notice and without incurring any obligations.

* Lamp life may vary due to room conditions, usage, and maintenance. The replacement time is a
general estimate. The brightness of a lamp usually decreases over time and use.

Optional Accessories

POA-MCSRL

(Serial Control Cable)

Warranty

Three years parts and labor; 90 days original lamp;
Quick Repair Program under warranty

Back Panel
