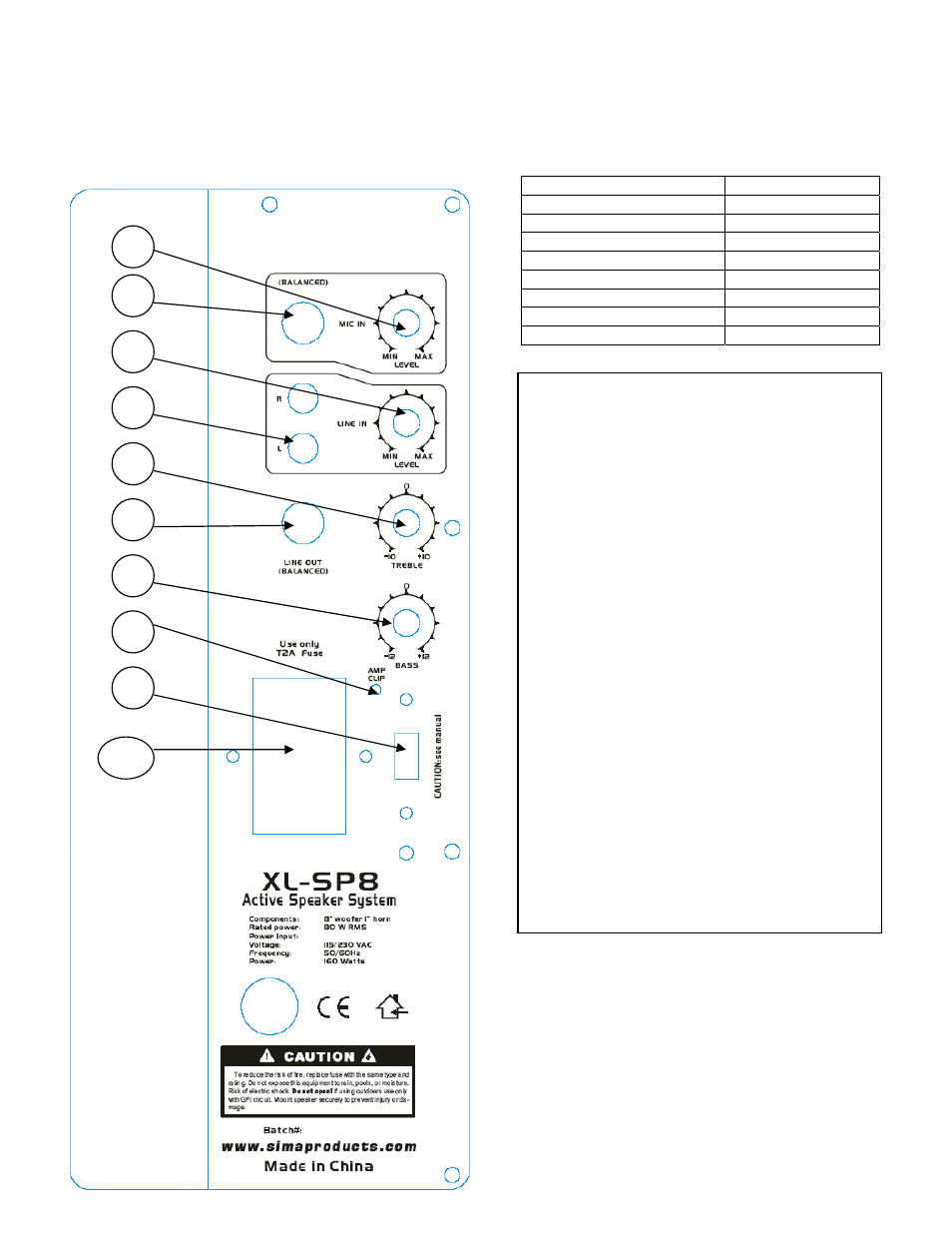

Speaker Specifications and Drawing - XL-SP-8 cations and Drawing - XL-SP-8
Page 17
1
2
3
4
5
6
7
9
10
Model XL-SP-8
Woofer Size
8”
Wattage 80w
Frequency Response
55Hz-18kHz
Dimensions (in.) 18.1x12.2x10.6
Weight (lbs) 19.8 lbs.
Microphone Input YES (1/4”)
Stereo Input YES
Ground Stands Included NO
1. MIC LEVEL – Used to adjust the volume of
the microphone input.
2. MIC INPUT CONNECTOR – ¼” balanced
Input for connecting low impedance
microphones to the Low-Noise preamp.
3. LINE LEVEL – Used to control the level of
the line input.
4. LINE INPUT CONNECTOR - RCA Input for
connecting line level signals.
5. TREBLE CONTROL - Controls the high
band of the Channel Equalizer, +/- 10 dB at
3.5kHz.
6. LINE OUTPUT – ¼” balanced output
connector used to link multiple XL-SP8s
together.
7. BASS CONTROL - Controls the low band of
the Channel Equalizer, +/- 12 dB at 100Hz.
8. AMP CLIP LED - LED lights when the amp is
at maximum and about to clip.
9. VOLTAGE SELECTOR – Set this switch to
either 115VAC or 220VAC to match your
power source.
10. AC POWER INLET – Connect the supplied
standard IEC AC power cable here.
• On / Off Switch with indicator light
• Extra Replacement Fuse included,
use only T2A fuse
