Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all
packing materials from your area and place them back into the box. Do not dispose of the packing materials
until assembly is completed. Read each step carefully before beginning. If you are missing a part please
call our toll-free number for assistance 1 (800) 375-7520 or e-mail us at:

[email protected]

6

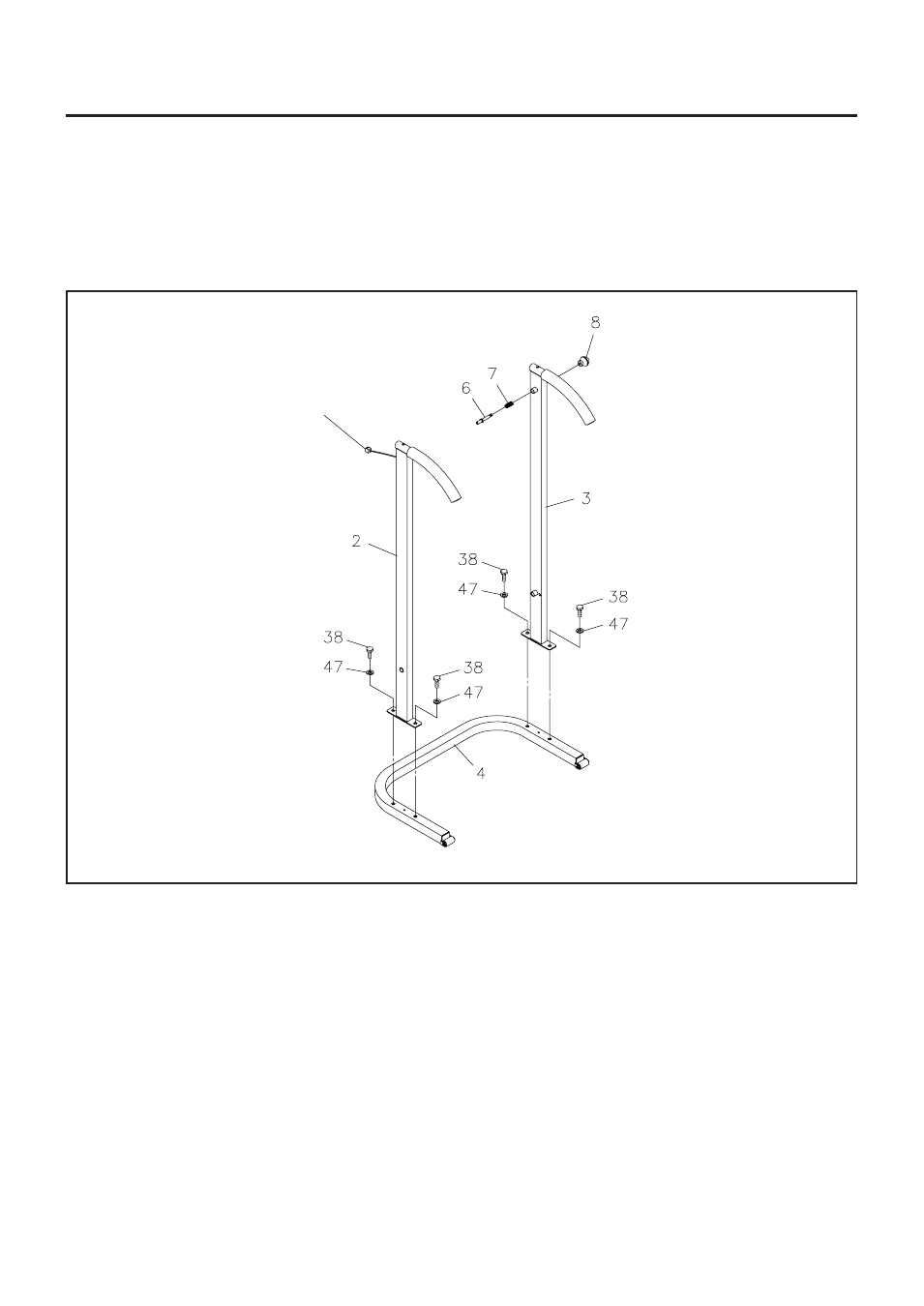

ASSEMBLY INSTRUCTIONS

Sensor Wire

STEP 1
NOTE:

The

LEFT UPRIGHT(2)

is the one with the Sensor Wire.

Attach the

LEFT

and

RIGHT UPRIGHTS(2, 3)

to the

UPRIGHT SUPPORT(4)

with

HEX BOLTS

(M10 x 20mm)(38)

and

WASHERS(M10)(47).

STEP 2

Slide the

SPRING(7)

onto the

SPRING PIN(6).

Insert the threaded end of the

SPRING PIN(6)

through

the collar on the

RIGHT UPRIGHT(3)

and screw the

BALL KNOB(8)

onto the thread end of the S

PRING

PIN(6).

Tighten the

BALL KNOB(8)

as tight as you can by hand.
