SECO-LARM USA Enforcer RF Receivers SK-910R-4 User Manual
Page 3

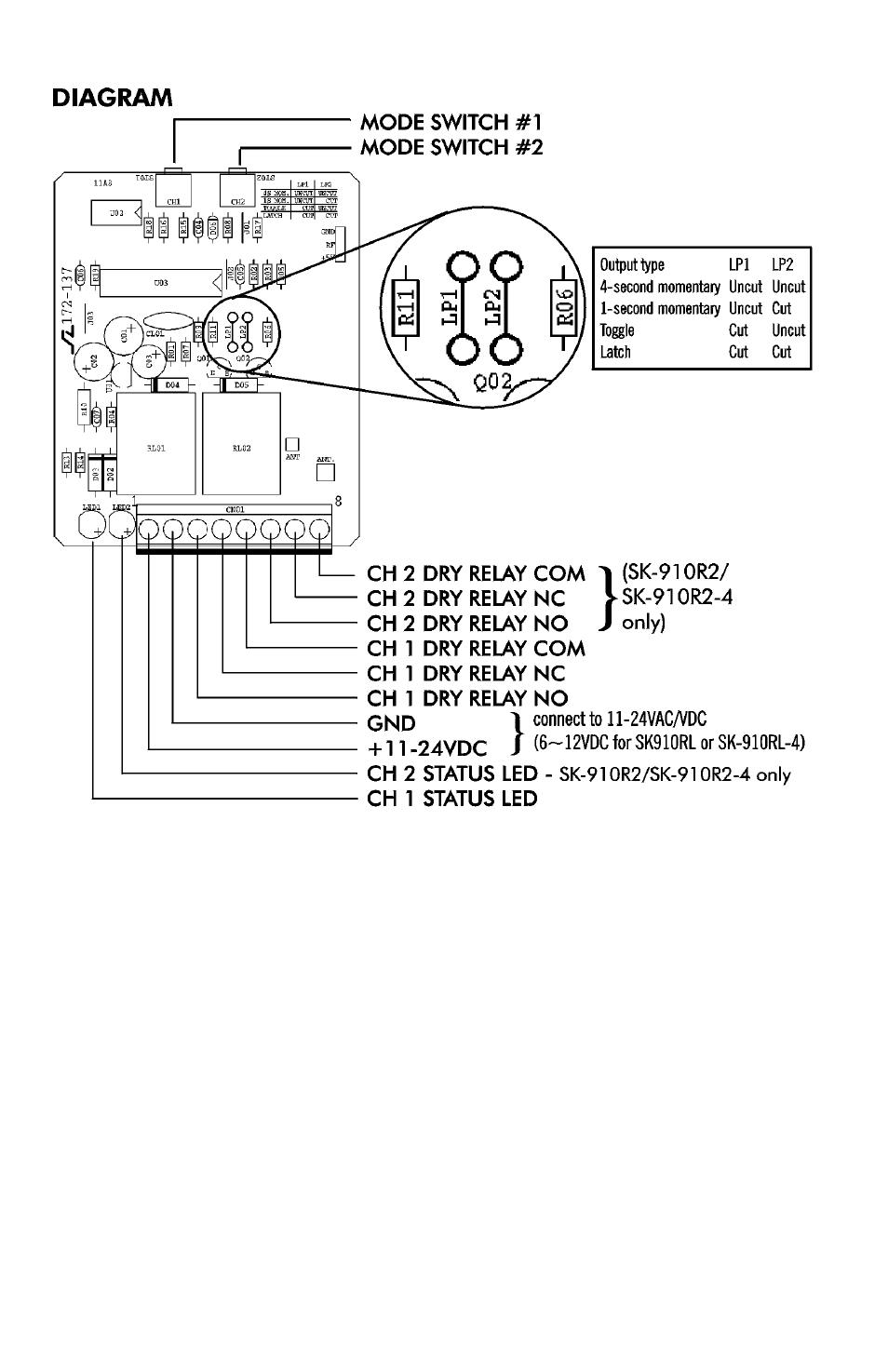

Mode Switch Operation (one per channel)
•
Learn mode — Press and hold the switch for three seconds.
•
Clear memory — Press three seconds, then when the LED starts flashing, press again for three seconds to
delete all previously learned codes.
•
Reset latched output — If this channel was programmed for latch output, once the relay is turned on with a
transmitter button, press the mode switch to turn the relay off.
•
Memory Display — Press and release the mode switch to show number of codes stored. LED will flash a number
of times to correspond to the number of codes stored.
LED Indication (one per channel)
•
Steady on — Senses signal from a transmitter button whose code was already learned.
•
Fast flash — In the code-learning mode.
•
One flash — A transmitter button code was learned.
•
Two flashes — All previously learned transmitter button codes were deleted.
