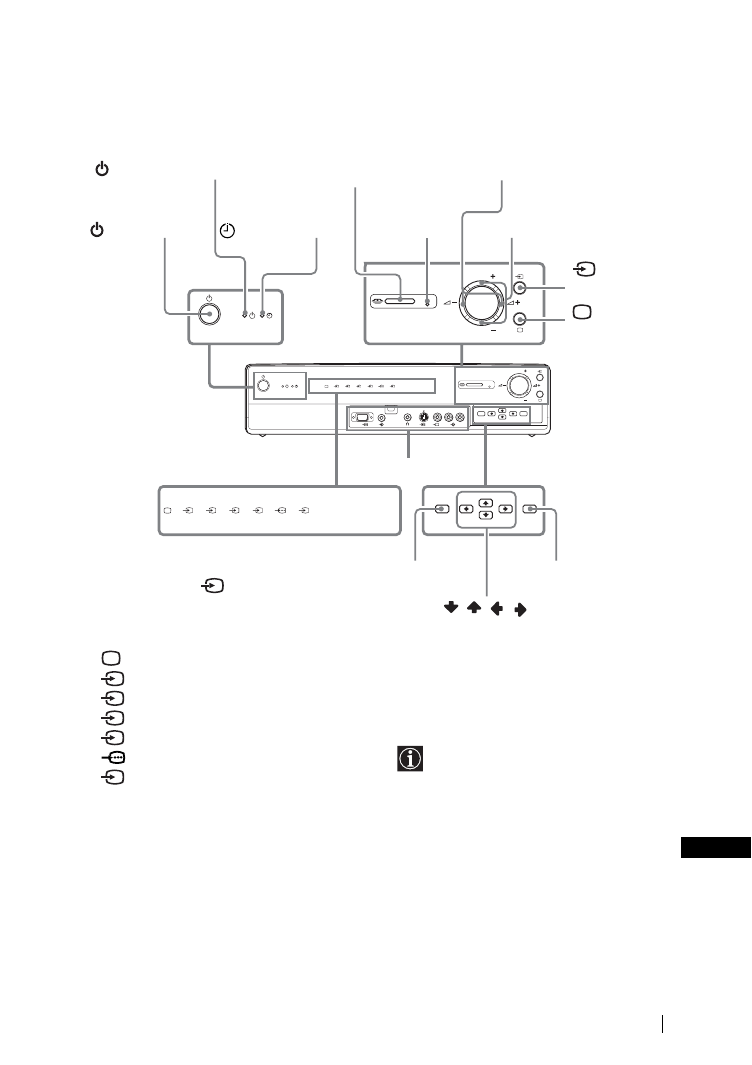

Overview of the Media Receiver Unit Buttons and
Indicators
6 5 4 3 2 1
6 6 6
PC MEMORY STICK
PROG
PROG
MENU
PC
OK
L/G/S/I R/D/D/D
MENU OK
PROG
PROG
6 4 3 2 1 PC MEMORY STICK 5
(Power on/standby) indicator
(Power) switch (Timer) indicator
“Memory Stick” slot
“Memory Stick”
access lamp
PROG (channel)
+/– buttons
2(Volume) +/–
buttons
(Input
select) button
(TV mode)
button
Input select indicators
To watch the picture of connected
equipment, press
repeatedly until the
correct input indicator lights up. For more
details, refer to “Using Optional
Equipment” on page 63.
TV indicator
1 Input 1 indicator
2 Input 2 indicator
3 Input 3 indicator
4 Input 4 indicator
5 Input 5 indicator
6 Input 6 indicator
PC PC indicator
MEMORY Memory Stick indicator
STICK
Menu button
/ / /
buttons
OK button
Front connectors*
* For more details of the front
connectors, refer to “Connecting
Optional Equipment” on page 59.
