Install Upright Support & Bag Support Bracket
7

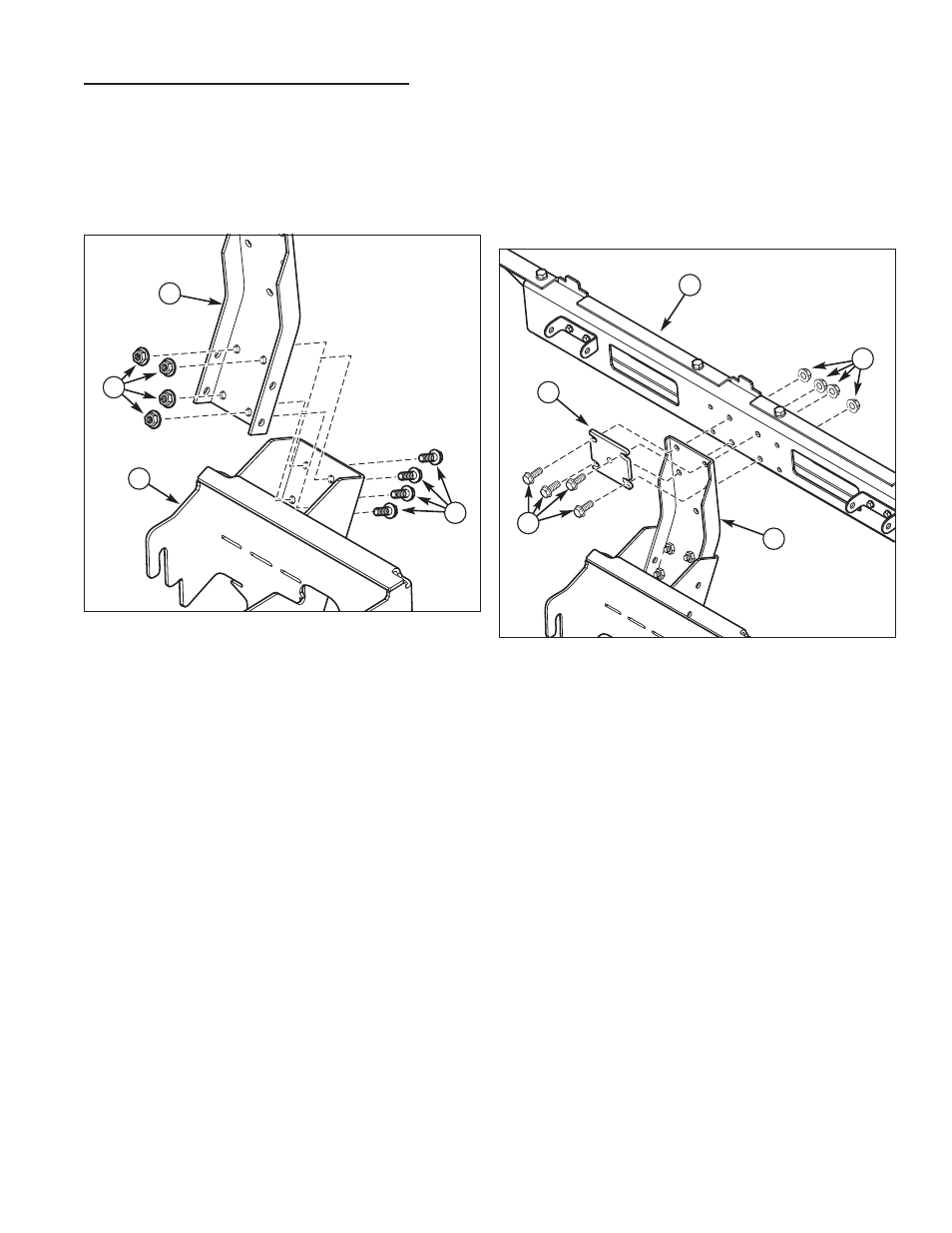

Figure 8. Install Upright Support
A. Hitch
B. Upright Support
C. Capscrews, 3/8-16 x 1
D. Locknuts, 3/8-16
A
INSTALL UPRIGHT SUPPORT TO HITCH
1. Install the upright support (B, Figure 8) to hitch (A)
and secure with 3/8-16 x 1 capscrews (C) and lock-
nuts (D) as shown.
B
INSTALL BAG AND COVER SUPPORT
1. Install the bag and cover support (B, Figure 9) to
upright support (A) using reinforcement plate (C) and
3/8-16 x 1 capscrews (D) and 3/8-16locknuts (E) as
shown.
A
C
B
Figure 9. Install Bag and Cover Support
A. Upright Support
B. Bag and cover Support
C. Reinforcement Plate
D. Capscrews, 3/8-16 x 1
E. Locknuts, 3/8-16
C
D
E
D
