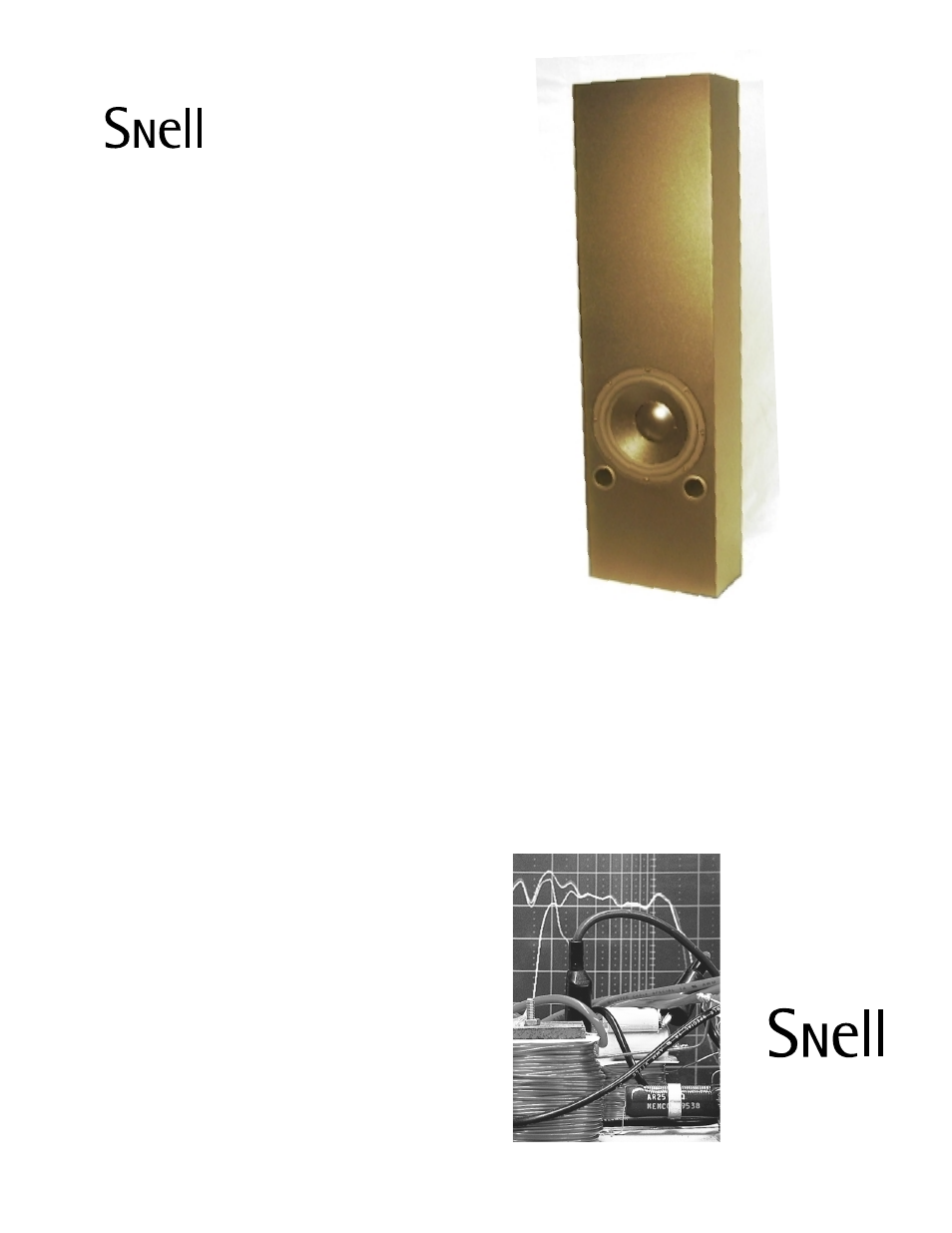

Snell Acoustics AMC Sub 10 User Manual

Amc sub

143 Essex Street
Haverhill, MA 01832
978-373-6114

phone

978-373-6172

fax

Covered by patents issued and or
pending. Specifications subject to
change. ©1999 Snell Acoustics.

AMC Sub

Hand Tuning

Our technicians rigorously match
our systems to within ±0.5dB of
the Master Reference

Frequency Response
38Hz-200Hz ±3dB

Recommended Amplifier Power
75 to 200 watts

Nominal Impedance
8 ohms

Sensitivity
88dB

Bass Unit
10-inch cast chassis extension
woofer in fourth order enclosure

Cabinet Construction

1/2

-inch MDF

SPECIFICATIONS

Input connections
5-way gold plated terminals,
accepts spades up to

-inch,

pins, banana plugs and bare
wire to 12 gauge

Dimension (HxWxD)
53 x 14

x 3

inches

Grille
White or Black cloth over Metal
frame (Optional)

Weight (Shipping)
42lbs.

Finish
Black Utility, sanded and painted
by hand

Fully Enclosed In-Wall Subwoofer for Standard 2x4 Walls

In-Wall Home Theater speakers are a joke. They lack impact, don’t

image, and they make boomy bloated bass. In-Wall speakers

mount flush to the wall and rely on the wall cavity to replace the

speaker enclosure. But the wall as an enclosure is a poor

substitue for a well designed cabinet...when was the last time you

heard a speaker made of drywall and 2x4s. Snell solved the

problem in 1990 with the world’s first In-Wall THX system,

where we cleverly designed a cabinet that fit inside the wall. And

we have solved the problem again, this time we have developed a

subwoofer in an enclosure that installs in a standard 2x4 stud

wall. Delivering amazing bass to below 40Hz, the AMC Sub10 is a

designer’s dream come true. Snell duplicates the remarkable

performance of its conventional subwoofers for an in-wall

application by designing the AMC Sub10 in its own enclosure,

steering clear of the “sound leakage”, vibrations, and boominess

caused by “open-back” designs. Its motor structure and specially

designed 10 Inch cast frame woofer permits extremely long

linear excursions. The result is excellent dynamic performance for

bass that can be felt as well as heard. The AMC Sub10 is the only

subwoofer available that offers the performance of a

freestanding subwoofer, invisibly!

AMC SUB

IN-WALL

NON-POWERED

SUBWOOFER
