Controls
Operation
SNOWTHROWER CONTROLS
Auger Control
A. Auger Control -This control engages and disen-
gages the auger. Pull the control back against handle
to engage the auger, (this will pull snowthrower for-
ward if auger is in contact with the ground). Release
the Auger Control to stop rotation of auger.
Deflector Controls
B. Chute Direction Control -The Chute Direction
Control (B, Figure 4) allows the discharge chute to be
rotated to throw snow in the desired direction. Snow
may be thrown at any angle from straight left to
straight forward, to straight right.
C. Chute Deflector Controls the distance snow is
thrown. Tilting the Chute Deflector (C, Figure 4) UP
provides a higher stream and greater distance, while
tilting the deflector DOWN provides a lower stream
and less distance.

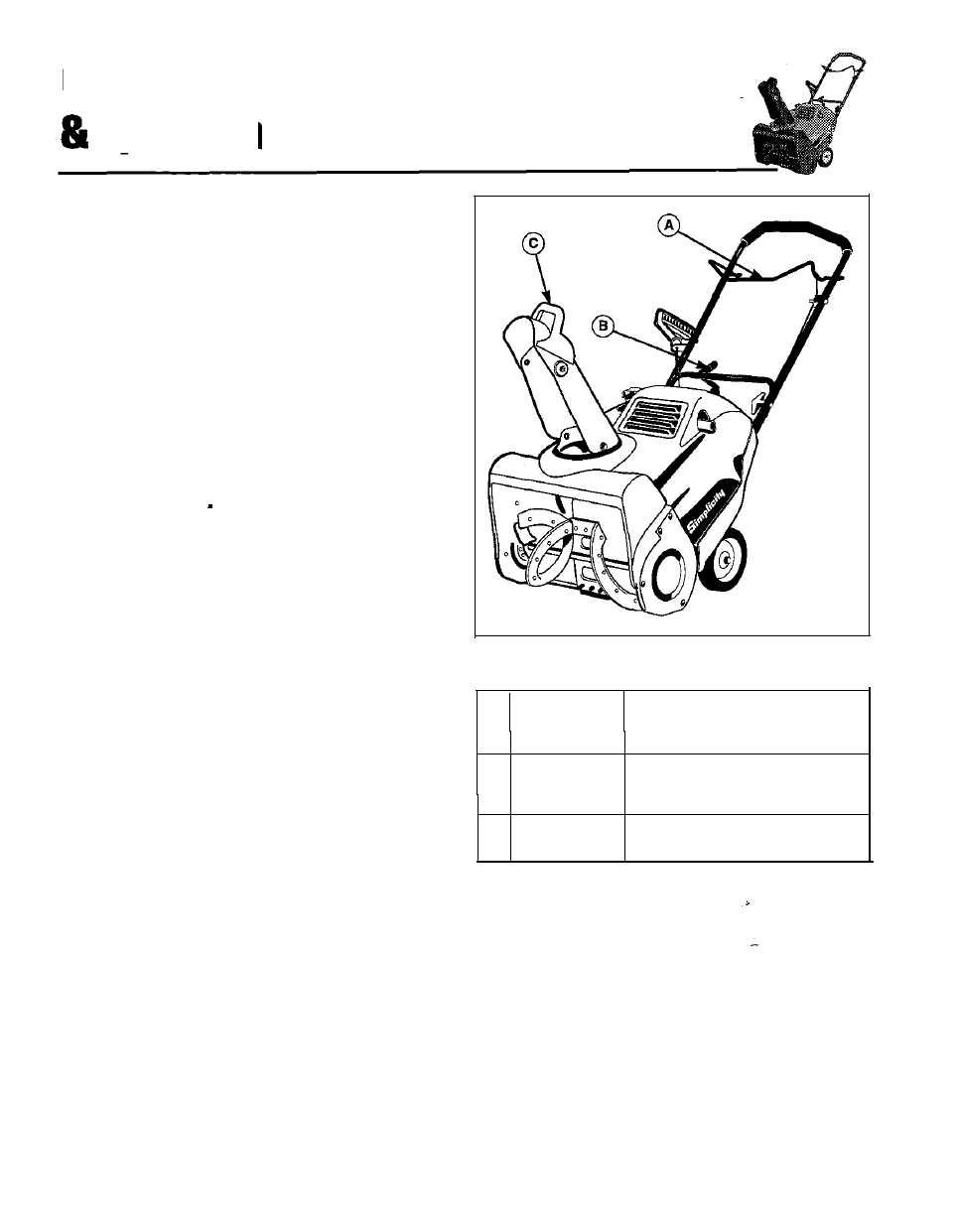

Figure 4. Snowthrower Controls
A Auger
Control
Engages auger when pulled
back, and disengages auger
when released.
B Chute Rotates discharge chute to
Direction desired direction
Control
C Chute
Deflector
Controls vertical angle snow is
thrown.
