Smooth Fitness 5.25E User Manual
Page 21
www.smoothfitness.co.uk
21
ASSEMBLY

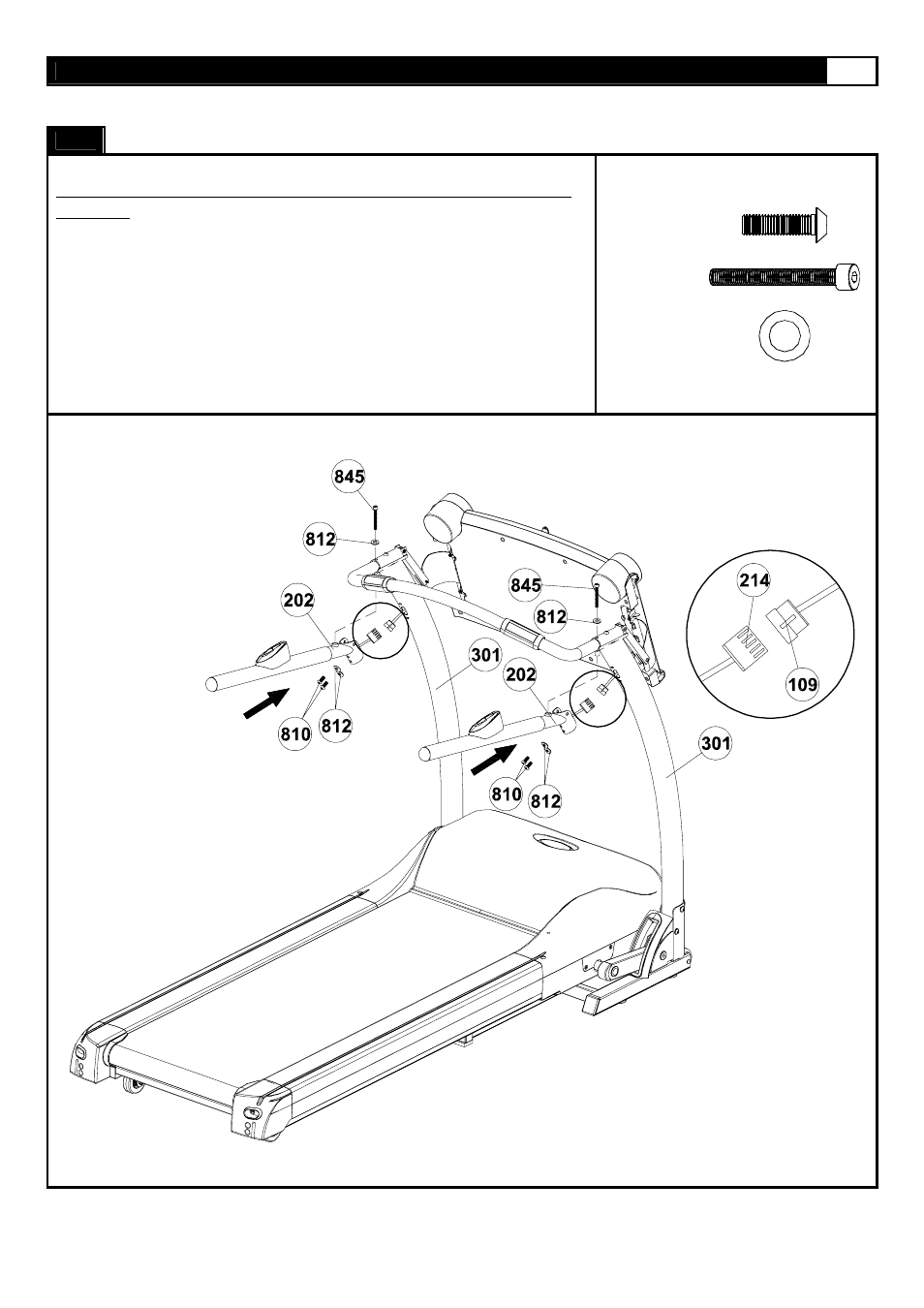

STEP 4
:
Assemble The Side Handlebars
NOTE: Side rails are interchangeable for use on both right and
left sides
A ) Attach one handlebar (202) to the left upright (301),and
connect the motion control sensor wire (214) and wire (109).
B) Secure the Side Handlebar with one M8 x75 mm bolt (845)
and one # 8 washer , through the top of front handle bar into the
side handle bar .
C) Insert two M8x18 mm (810) and two # 8 washer through the
side handrail plate and thread into the upright .
D) Repeat the above process for the right side .
E) Tighten all bolts with Allen Wrench .
810
X4
845
X2
812
X6
