Functional Description and Specifications
Disconnect battery pack from tool or place the switch in the locked or
off position before making any assembly, adjustments or changing
accessories. Such preventive safety measures reduce the risk of starting the tool
accidentally.
!
WARNING

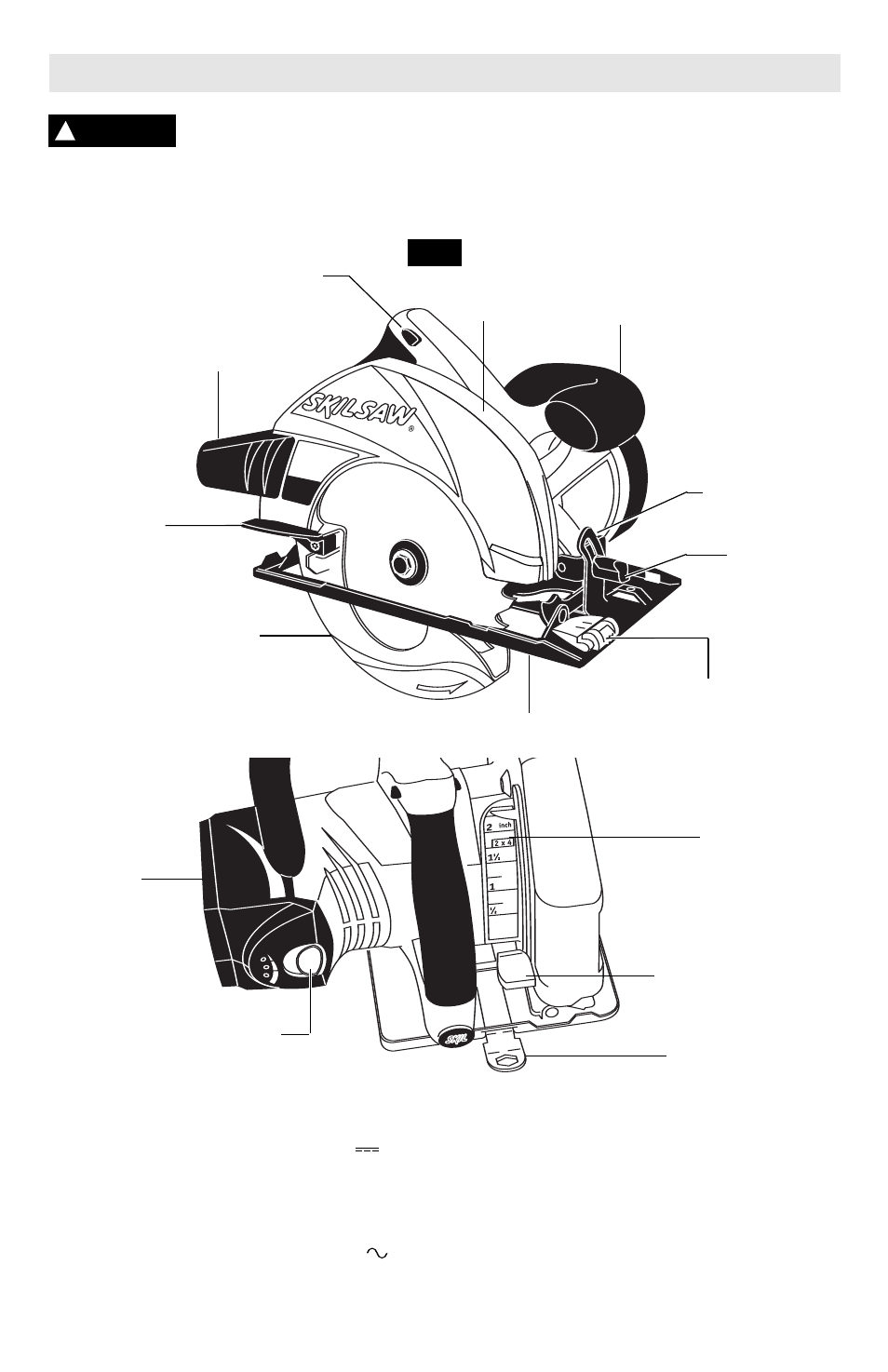

FIG. 1
LOWER
GUARD
FOOT
LOWER
GUARD LIFT
LEVER
AUXILIARY
HANDLE
ADJUSTABLE LINE GUIDE
BEVEL
ADJUSTMENT
KNOB
CALIBRATED
BEVEL QUADRANT
SAFETY SWITCH
UPPER
GUARD
DUST PORT ADAPTER
(Not included,
available as accessory)
Cordless Circular Saw
[51mm]
[38mm]
[25mm]
[25mm]
DEPTH ADJUSTMENT
LEVER
DEPTH
SCALE
BLADE WRENCH &
STORAGE AREA
BATTERY
PACK
BATTERY
RELEASE BUTTON
Tool
Model number
5850
Voltage rating
18 V
Charge time
1 hr
Battery pack
SB18A
Charger
SC118
Voltage rating
120 V 60 Hz
Maximum Capacities
Blade
7-1/4"
Blade arbor hole
Round
Depth of cut at 90°
2-7/16"
Depth of cut at 45°
1-15/16"
NOTE: For tool specifications
refer to the nameplate on your
tool.
