High Performance
The Si5324 is the industry’s lowest jitter
genlock clock IC. The device provides any-
rate frequency synthesis simplifying HD
video and audio clock generation. With
jitter performance of 5 ps pk-pk, the Si5324
delivers significant jitter margin in 3G-SDI
serializer applications, reducing design risk
and improved link performance.
Highly Integrated
The Si5324 offers the industry’s most
highly integrated video clock generator IC
requiring no external PLL components (low
pass filter, charge pump, or VCXO). Because
all PLL components are integrated, board-
level noise immunity is improved reducing
design risk versus traditional video clock IC
solutions.
Any-Rate Frequency Flexibility
The Si5324’s any rate frequency flexibility
enables a single device to generate all
common genlock reference frequencies
required in next-generation SD/HD video
and audio equipment. The Si5324 is easily
reconfigurable via I2C/SPI interface and
requires no component changes for different
frequency plans, simplifying design reuse.
A N Y - R A T E F R E Q U E N C Y
F L E X I B I L I T Y
www.silabs.com/Timing
Any-Rate Jitter Attenuating Clock Multipliers, Clock Generators and Buffers
DSPLL, Silicon Laboratories and the Silicon Labs logo are trademarks of Silicon Laboratories Inc. All other product or service names are the property of
their respective owners. For the most up to date information please see your sales representative or visit our website at www.silabs.com.
100, August 09, Rev A SOL-VTS-2009A
Silicon Laboratories Inc.
400 West Cesar Chavez • Austin, TX 78701
Toll Free: (877) 444-3032
Email: [email protected] or
[email protected]
Web site: www.silabs.com
Single and Multi-Frequency Crystal-Based XO/VCXO
2 WEEK
LEAD
TIMES
Built to Order Samples
Silicon Labs offers an easy-to-use web utility to build and confi gure the
right XO/VCXO for your application. Samples of any frequency XO/VCXO
are available in less than two weeks. www.silabs.com/BuyXO
Part
Number
Input/
Output
Clocks Control Input Frequency Output Frequency Jitter
Minimum
PLL
Bandwidth
Jitter
Attenuation
Clock
Generation
Clock
Distribution
Package
Si5324 2/2 Diff I 2 C or SPI 2 kHz to 710 MHz 2 kHz to 1.4 GHz 5 ps pk-pk 4 Hz • • • 36-QFN
Si5368 4/5 Diff I 2 C or SPI 2 kHz to 710 MHz 2 kHz to 1.4 GHz 8 ps pk-pk 60 Hz • • • 100-TQFP
Si5338 4/4 Diff I 2 C or SPI
8 to 30 MHz (xtal)
160 kHz to 710 MHz (clock)
160 kHz to
710 MHz
36 ps pk-pk 1.6 MHz • • 24-QFN
Si5330
1:4 Diff
1:8 SE
Pin
5 to 710 MHz Diff
5 to 350 MHz SE
5 to 710 MHz Diff
5 to 350 MHz SE
55 fs rms — • 24-QFN
Part Number Type Frequency Control Frequency Range Jitter Stability/APR Options (ppm) Kv Options (ppm/V) Package
Si530/1 XO Single Pin 10 to 945 MHz
970 to 1134 MHz
1213 to 1417 MHz
0.3 ps rms
±20
±31.5
±61.5
N/A 6-pad
Si532/3 XO Dual Pin N/A 6-pad
Si534 XO Quad Pin N/A 8-pad
Si550 VCXO Single Pin
10 to 945 MHz
970 to 1134 MHz
1213 to 1417 MHz
0.5 ps rms ±12 to ±375 33 to 356
6-pad
Si552 VCXO Dual Pin 6-pad
Si554 VCXO Quad Pin 8-pad
Si570 XO Programmable Any-Rate I 2 C
10 to 280 MHz
10 to 810 MHz
10 to 1417 MHz
0.3 ps rms ±31.5; ±61.5 N/A 8-pad
Si571 VCXO Programmable Any-Rate I 2 C 0.5 ps rms ±12 to ±375 33 to 356 8-pad
Si590/1 XO Single Pin
10 to 525 MHz
0.7 ps rms ±30; ±50; ±100 N/A 6-pad
Si595 VCXO Single Pin 0.7 ps rms ±10 to ±370 45 to 380 6-pad
Video Timing Solutions
Recommended Silicon Labs Timing Solutions for Video
Si534 XO/Si554 VCXO
• Eliminates multiple oscillators,
reduces system cost
• Simplifies BOM and saves board
space and inventory
• Ideal for multi-rate FPGA-based PLLs
Industry’s Only Quad and Any-Rate Frequency XO/VCXOs
3G-SDI
Clock
Jitter
Cleaner
VCXO
Loop
Filter
Video
PLL with
Genlock
Crystal
HSYNC
SDI
Reference

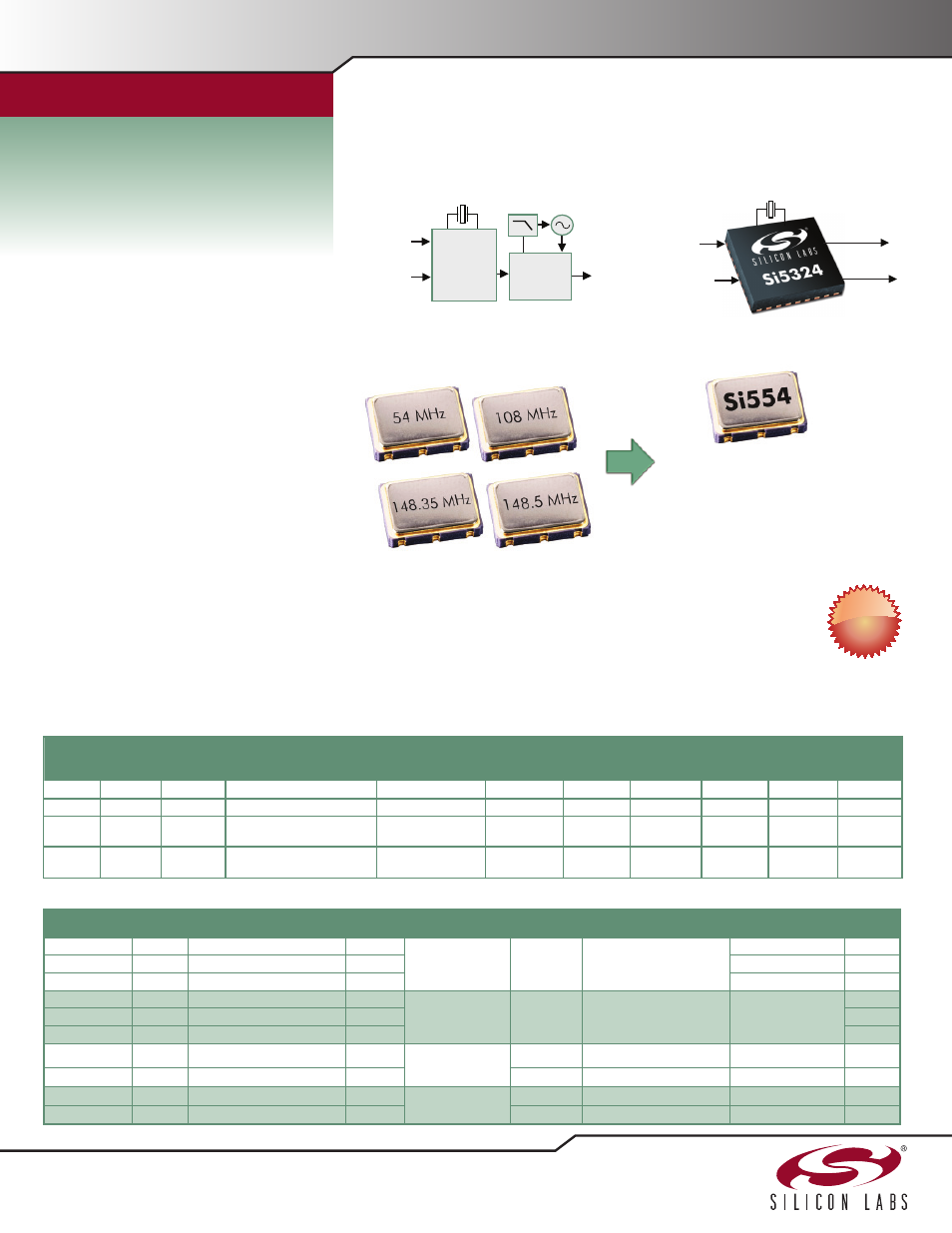

Traditional Video Clock Solution Silicon Labs Solution
HSYNC
SDI
Reference
3G-SDI
Clock
SD
Clock
Crystal
vs.
Industry’s Most Integrated Genlock Solution
Silicon Labs’ Si5324 replaces multi-component video clock ICs, external loop fi lter and
VCXO components with a single IC, simplifying genlock designs.
