- 14 -
◆ Install the Indoor Unit

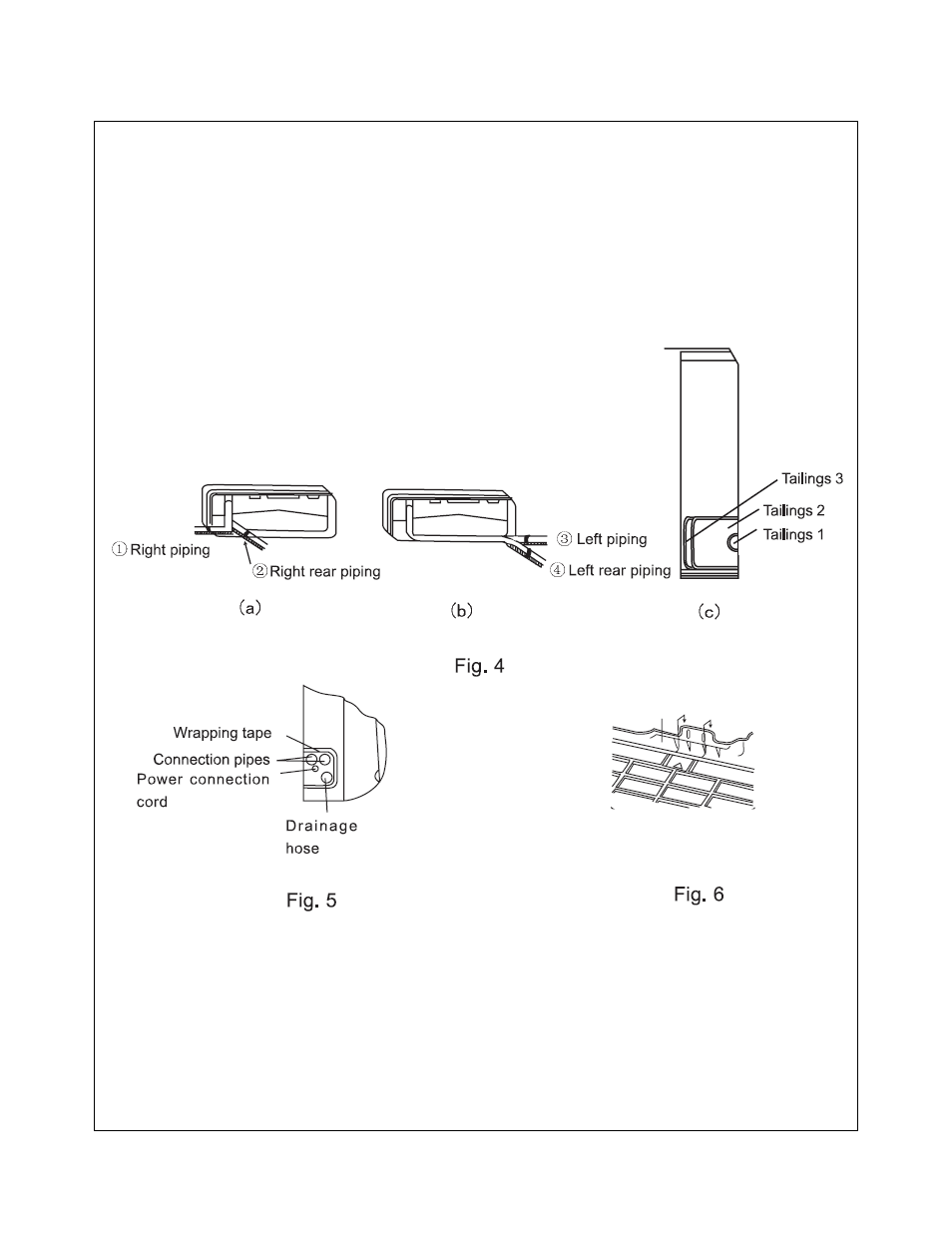

1. When routing the piping and wiring from the left or right side of the indoor unit, cut off the tailings from
the chassis in necessary (shown in Fig.4 (a), (b) and (c)).
(1) Cut off the tailings 1 when routing the wiring only.
(2) Cut off the tailings 1 and tailings 2 (or tailings 1, tailings 2 and tailings 3) when routing both the
wiring and piping.
①
, ②, and ③ in Fig. 4 are the recommended piping.
2. Wrap the piping and wiring and pull them through the cut-off-tailings hole (Shown in Fig.5).
3. Hang the mounting slots of the indoor unit on the upper tabs of the rear panel and check if it is secured.
4. The height of the installed location should be 6.56 feet or more from the floor.
