6
Product overview

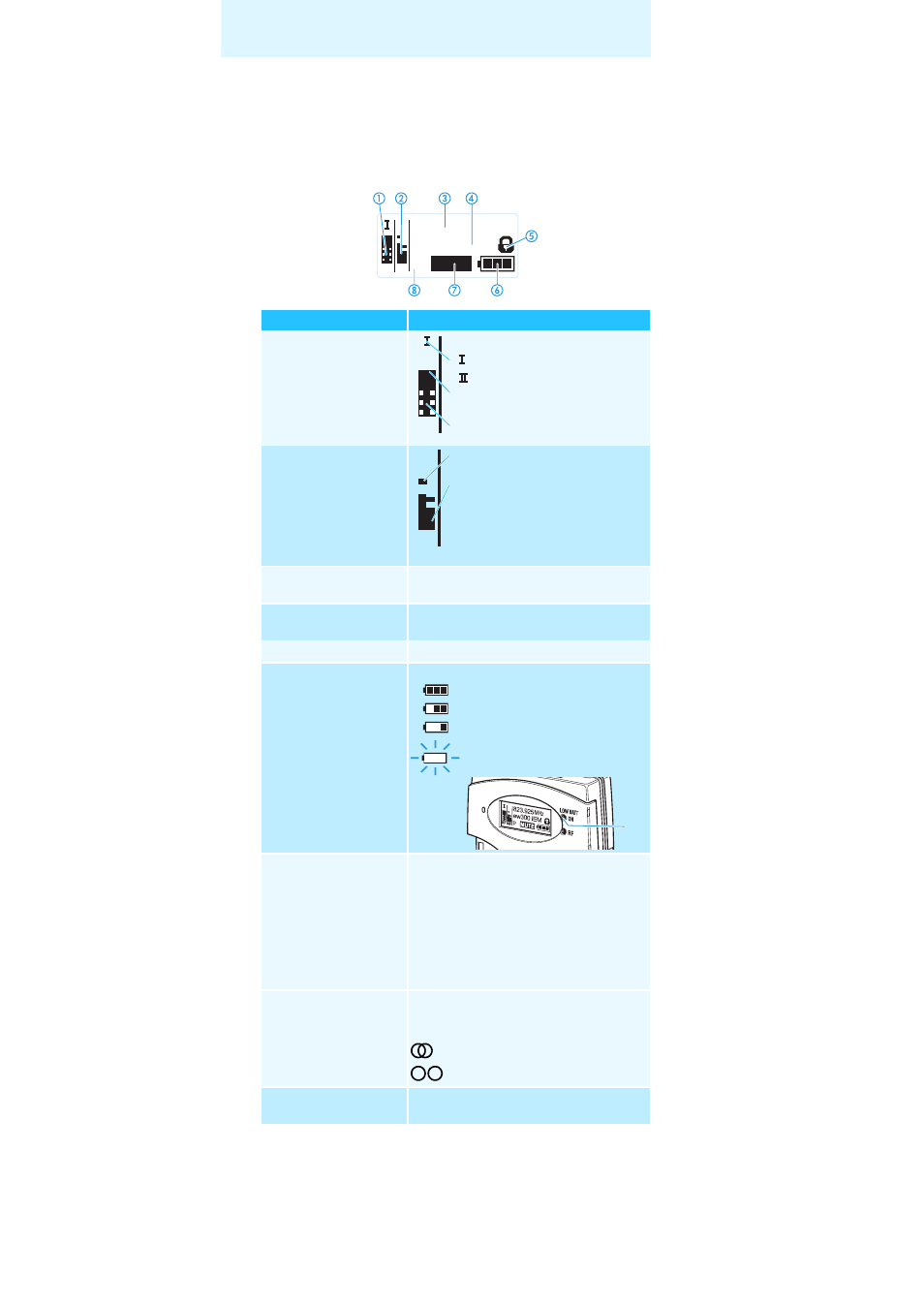

Overview of the displays
After switch-on, the diversity receiver displays the “ Frequency/Name ”
standard display. For further illustrations and examples of the different
standard displays, refer to page 10.
The display backlighting is automatically reduced after approx. 20 seconds.
Display Meaning
ቢ
RF level “ RF ”
(Radio Frequency)
Diversity display:
Antenna input I is active
Antenna input II is active
RF signal level:
Field strength of the received signal
Squelch threshold level
ባ
Audio level “ AF ”
(Audio Frequency)
Peak hold function
Modulation of the transmitter
(channel-separated when the
transmitter is set to stereo mode)
When the display shows full deflec-
tion, the audio input level is exces-
sively high.
ቤ Frequency Current receiving frequency
(see page 17)
ብ Name Freely selectable name of the receiver
(see page 15)
ቦ Lock mode icon Lock mode is activated (see page 10)
ቧ Battery status Charge status:
approx. 100%
approx. 70%
approx. 30%
charge status is critical, the red
LOW BATT LED ¿ is flashing:
ቨ Muting function
“
MUTE ”
“ Mute ” is only displayed on the “ Frequency/
Name ” standard display (see page 10)
• when the transmitter’s RF signal is
deactivated or
• when the transmitter is set to mono mode
and therefore does not transmit a pilot
tone but the receiver’s pilot tone evalua-
tion is activated.
or audio channels The audio channels are only displayed on the
“
Frequency/Limiter ” and “ Frequency/High
Boost ” standard displays (see page 10)
Stereo
Focus
ቩ Pilot tone “ P ” Activated pilot tone evaluation
(see page 18)
MHz 823.925
ew300 IEM
P AF RF
MUTE
RF
AF
¿
