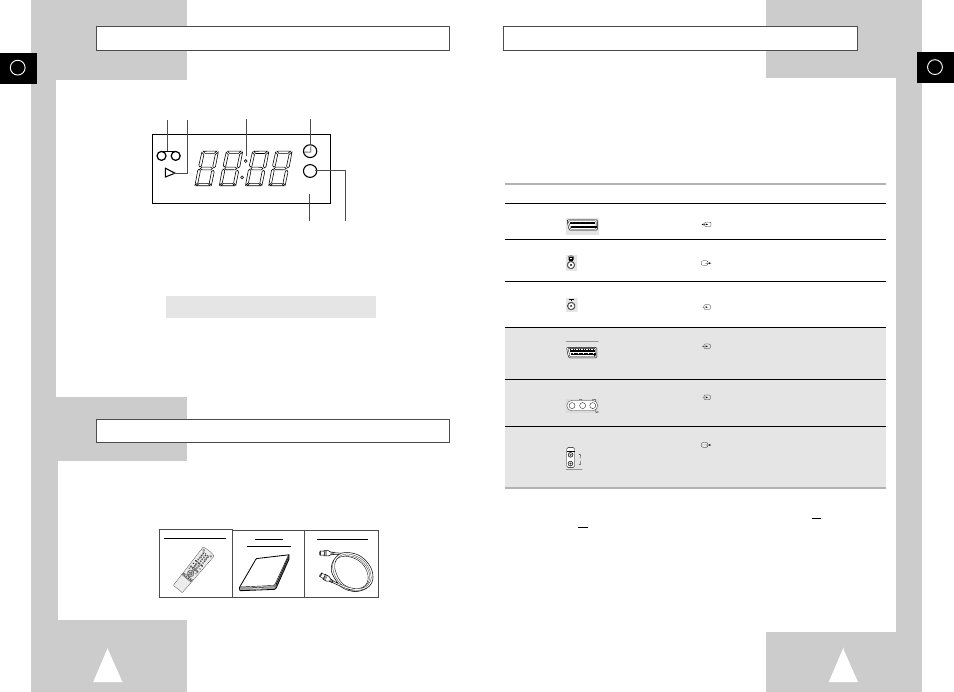

Deciding How to Connect Your VCR
You must take into account various factors when connecting audio or video systems:
◆ Types of connectors available on your systems
◆ Systems connected permanently to the VCR (satellite receiver for example) or temporarily
(camcorder for example)
Your VCR is equipped with the following connectors.
Connector Location Type Direction Recommended Use
AV1 (EURO AV) Rear SCART In/Out ◆ Television
◆ Satellite receiver
◆ Other VCR
OUT TO TV Rear 75 Ω Out ◆ Television
coaxial
IN FROM ANT. Rear 75 Ω In ◆ Aerial
coaxial ◆ Cable television network
◆ Satellite receiver
AV2 Rear SCART In ◆ Satellite receiver
(SATELLITE) ◆ Other VCR
★
(SV-665B/SV-661B/SV-662B/SV-661I Only)
AUX Front Audio/Video RCA In ◆ Audio Hi-Fi system
◆ Camcorder
★ (SV-665B/SV-661B/SV-662B/SV-661I Only)
Audio output Rear Audio RCA Out ◆ Audio Hi-Fi system
★ (SV-665B/SV-661B/SV-662B/SV-661I Only)
☛
Whenever you connect an audio or video system to your VCR, ensure that all elements are
switched off.
Refer to the documentation supplied with your equipment for detailed connection instructions
and associated safety precautions.
R/D
L/G
AUDIO
OUT/SORTIE
AV2 (SATELLITE) IN
TV
AV1 (EURO AV)
Display Indicators
Accessories
You have just purchased a SAMSUNG Video Cassette Recorder (VCR).
Together with your VCR, you will find the following accessories in the box.
OK
STANDBY/ON
EJECT SLOW SHUTTLE V-LOCK CLR/RST F.ADV INDEX A.TRK IPC INPUT REPEAT TRK PROG
AUDIO
REC
MENU SPEED DUB TV/VCR TIMER
DISPLAY
REMOTE CONTROL OWNER’S
INSTRUCTIONS
COAXIAL CABLE
VIDEO STEREO
5 6
1 2 3 4
1 Cassette loaded indicator
2 PLAY indicator
3 Multi-function display
4 Timer indicator
5 STEREO indicator
★ (SV-665B/SV-661B/SV-662B/SV-661I ONLY)
6 Rec indicator
