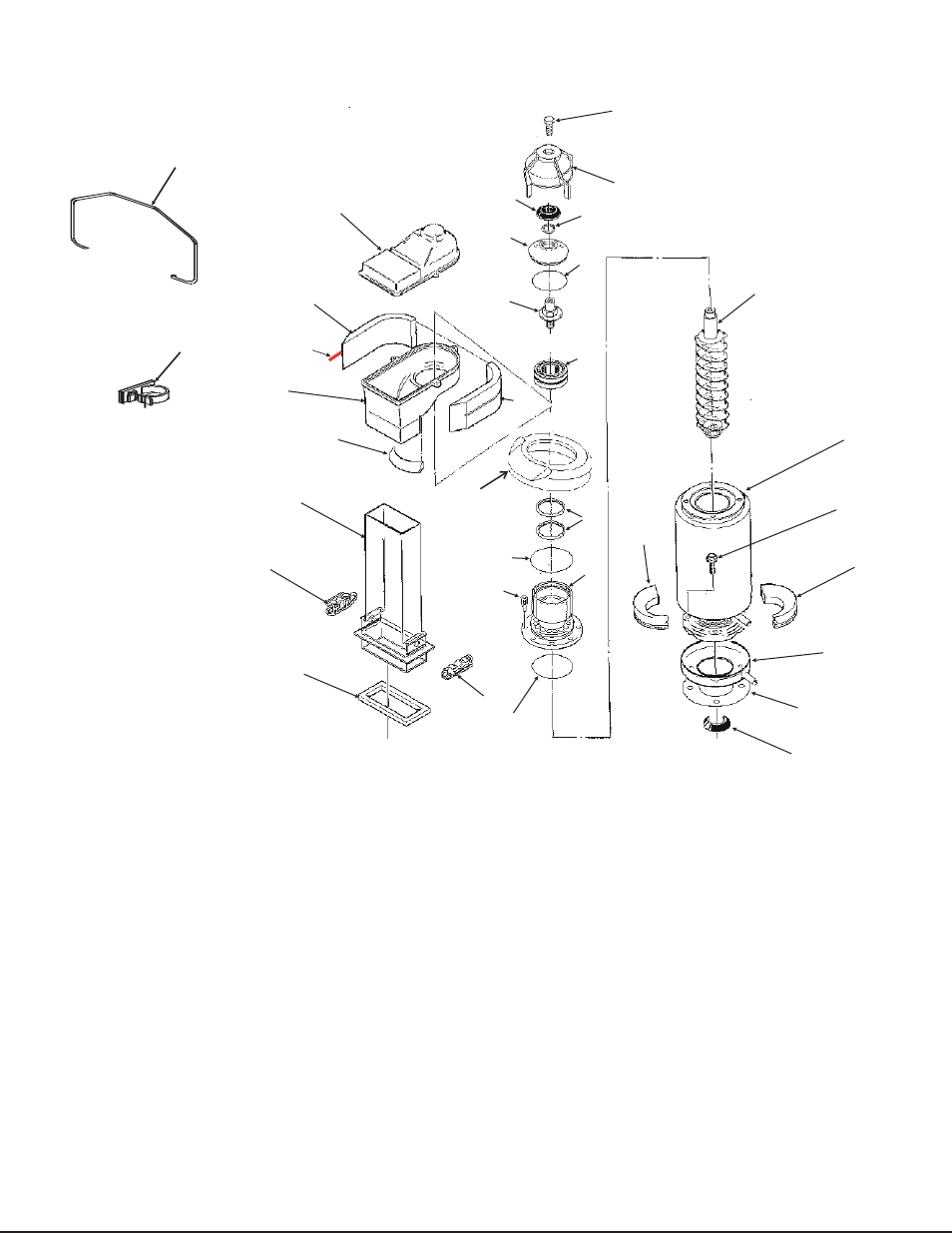

NME Evaporator
17. 13-0868-01 Water Shed
18. A34559-020 Bearing
19. 02-2977-01 Lip Seal
20. 13-0704-00 Drip Pan Gasket
21. 13-0617-54 O-Ring
22. 02-3837-01 Drip Pan
23. 13-0617-45 O-Ring
24. 03-1544-08 Soc. Head Screw
25. A32900-020 Breaker
(includes 18 & 19)
26. A38071-022 Auger
27. A32890-020 Evaporator
28. 03-1420-03 Cap Screw
29. A32962-001 Insulation Bot. (half)
30. 13-0929-02 Insulation donut*
* Insulation changed Oct. 2000. Item 4, 6 and 6a
no longer used. Item 5 changed. Item 30 added.
1
2
4
22
29
28
27
26
29
23
25
21
24
19
18
16
15
14
13
12
11
10
8
9
8
7
6
5
4
3
17
6a
20
ITEM PART
NUMBER NUMBER DESCRIPTION
1. A34969-001 Bail clip
2. 02-3268-01 Drain tube holder
3. 02-2930-04 Ice Chute Cover
4. A32963-001* Insulation Top (half)
5. 02-3841-01* Ice Chute Body, includes
insulation, repl item 4
6. A33102-001* Insulation Collar Inside
6a A35419-020* Strap kit
7. 02-2929-04 Ice Chute Lower
8. A37708-021 Bin Controls Kit.
(set of 2)
9. A32930-001 Chute Gasket
10. 03-1405-52 Hex Cap Screw
11. 02-3001-01 Ice Sweep
12. 13-0871-01 Water Shed
13. 02-2978-01 Lip Seal
14. 02-3128-20 Breaker Cover
15. 13-0617-52 O-Ring
16. 08-0660-01 Auger Stud & washer
30
NME954 & FME1204 SERVICE PARTS
April 2005
