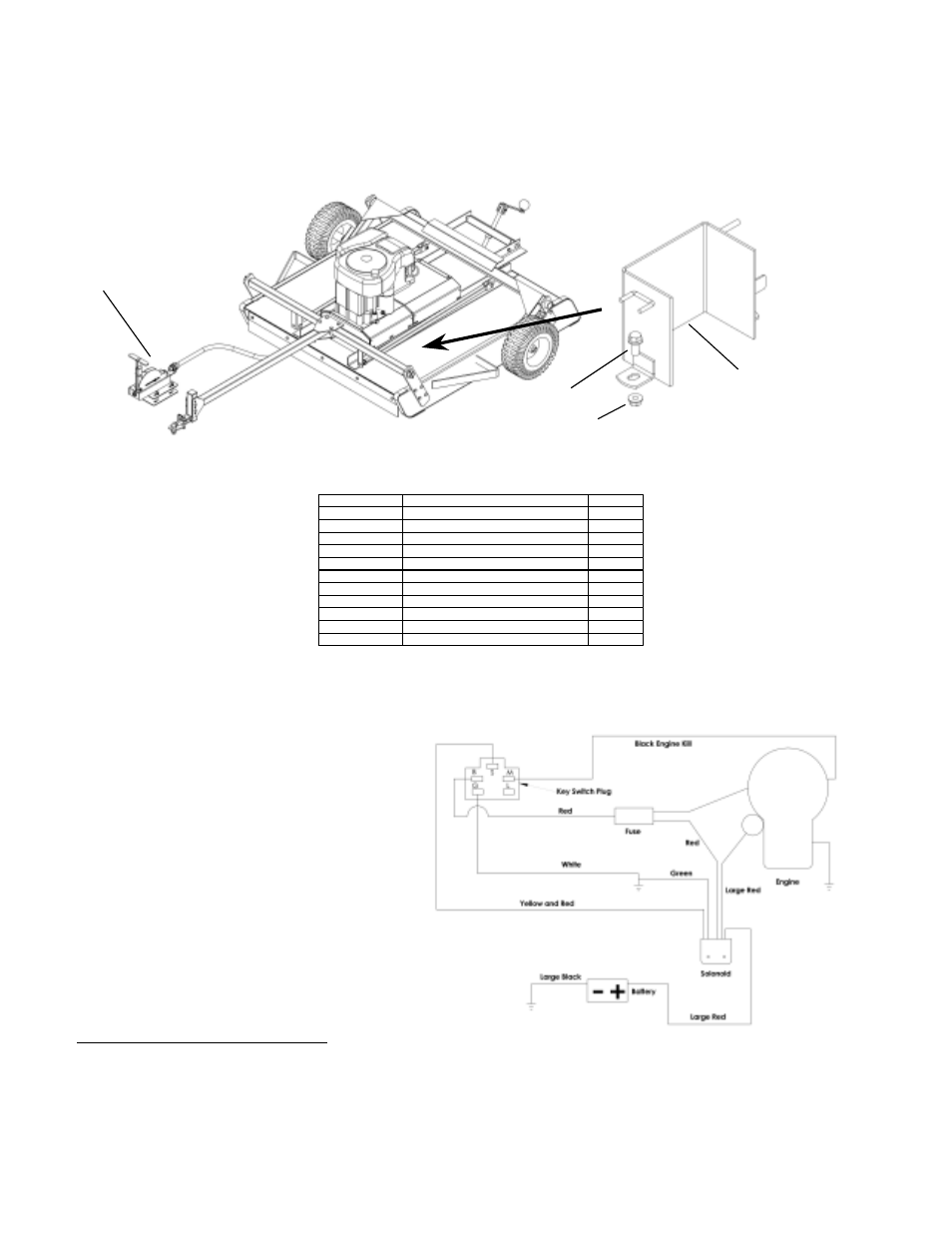

Rough Cut 44 12 Volt Start Replacement Parts
3
SEE FIGURE 8
2
1
WIRING DIAGRAM
FIGURE 11
Item # Description Part #
1 Battery Bracket Weldment 4909TK
2 5/16-18 X 3/4 Serr Flg Bolt NB596
3 5/16-18 Serrated Flange Nut NB170
Not Shown M6-1.0 Nut Yellow Zinc NB600
Not Shown Solenoid Assembly 9043
Not Shown Battery Hold Down, 15" Tarp Strap BHOLD
Not Shown Battery Cable (Black 10") BCS
Not Shown Battery Cable (10" Red) BCSR
Not Shown Battery Cable Small Rubber Boot BCBT
Not Shown Lower Wiring Harness 11764
Not Shown Battery Pad BATPAD
When ordering replacement parts
* = USE PAINT CODE:
TC=TEX.RED,S=SLIVER,TK=TEX.BLACK
