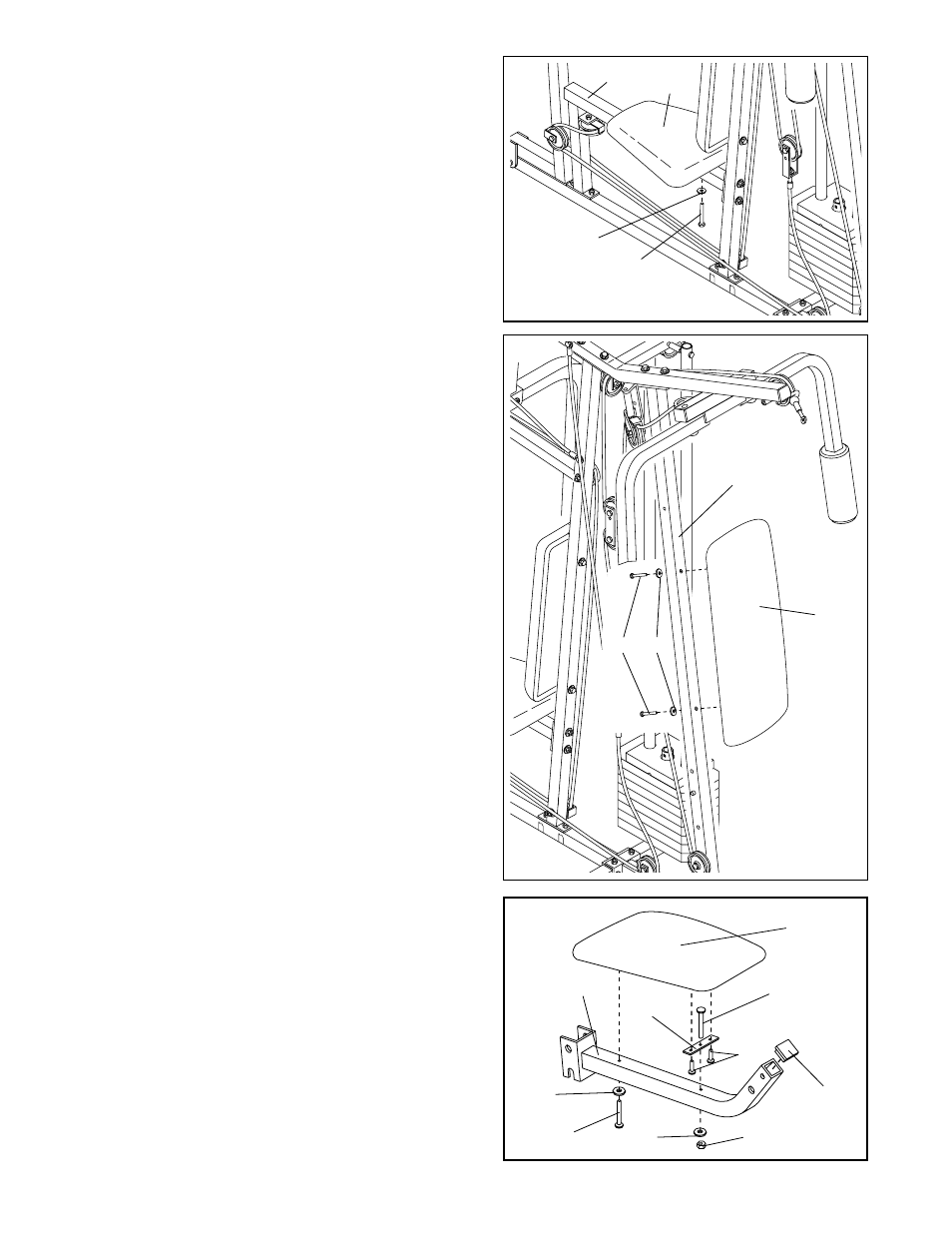

38. Move to the other end of the unit. Attach the remain-
ing Backrest (41) to the Butterfly Upright (42) with two
1/4” x 2 1/2” Screws (43) and two 1/4” Flat Washers
(10).
38
37. Attach the other end of the Seat (13) to the Press
Seat Frame (77) with a 1/4” Flat Washer (10) and a
1/4” x 2 1/2” Screw (43).
37
43
10
13
41
43 10
42
77
39. Press a 1 1/2” Square Inner Cap (32) into the
Butterfly Seat Frame (36).
Insert the 1/4” x 2” Carriage Bolt (38) into the center
hole in a Seat Plate (37).
Attach the Seat Plate to the Seat (13) with two 1/4” x
3/4” Screws (18).
Insert the 1/4” x 2” Carriage Bolt (38) into the indicat-
ed hole in the Butterfly Seat Frame. Tighten a 1/4”
Nylon Locknut (2) with a 1/4” Flat Washer (10) onto
the Carriage Bolt.
Attach the other end of the Seat to the Butterfly Seat
Frame with a 1/4” Flat Washer (10) and the 1/4” x
2 1/4” Screw (24).
39
32
13
38
10
24 10 2
18
36
37
