S TRATO S TEAM EZ C OUNTERTOP S TEAMER O PERATION
O WNER ’ S M ANUAL 1189953 (10/08) P AGE 5 OF 56

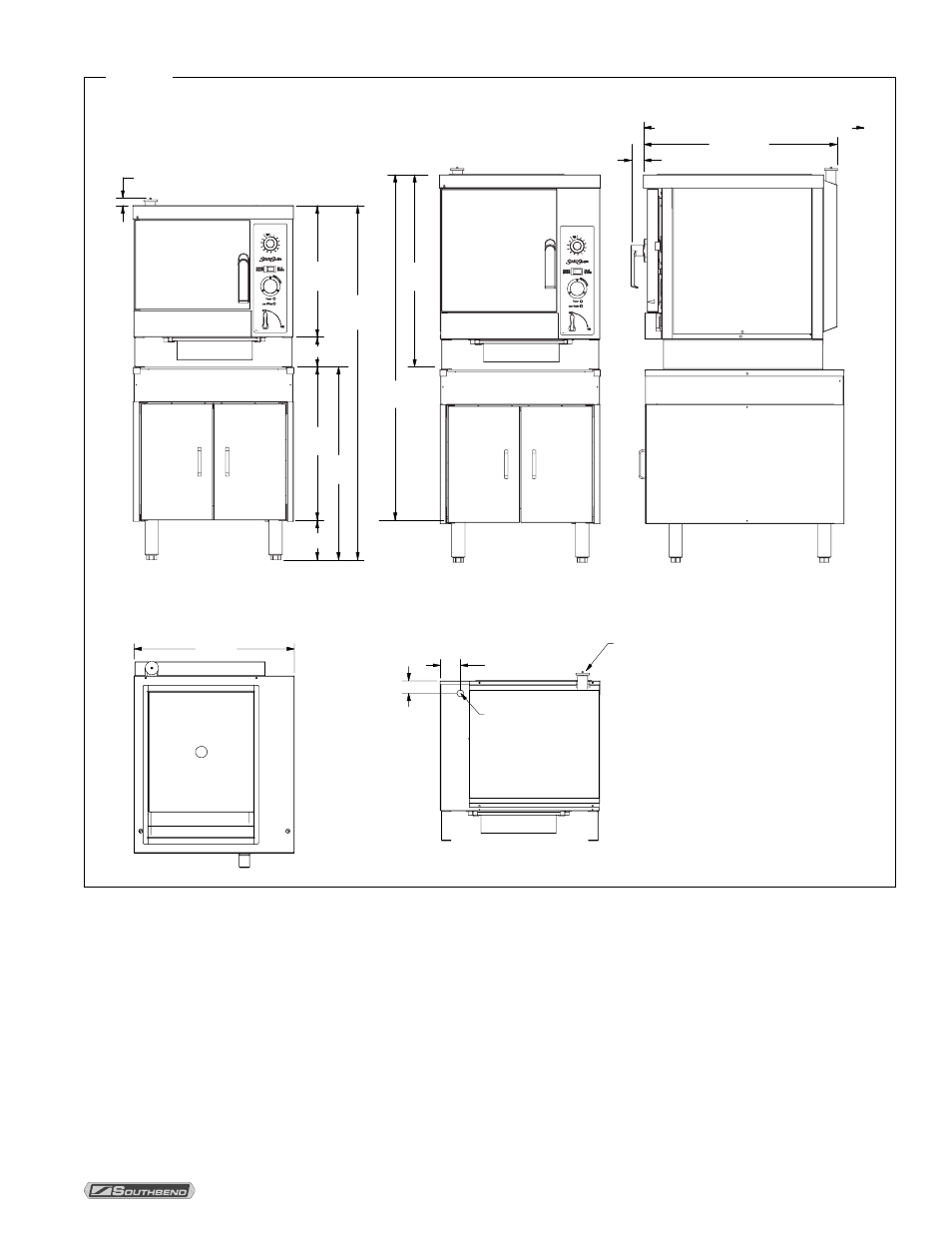

Figure 2
Dimensions
24" (610)
28-3/4"
(733)
Model STRE-3EZ
(shown with optional cabinet base)
Dimensions shown in inches and (millimeters)
23"
(586)
48"
(1219)
Model STRE-EZ5
(shown with optional cabinet base)
2" (51)
3" (76)
Electric Cable Entry Hole
Pressure Relief Vent
19-1/2"
(495)
6" (151)
4-1/2" (114)
29"
(737)
53"
(1346)
1-1/4" (32)
2-1/4" (57)
28-3/4" (730)
32-3/4" (832), including 4" (102) minimum rear clearance
