Sebo Automatic X5 - Manual (Page 11)

Page 11
White-Gray Machine

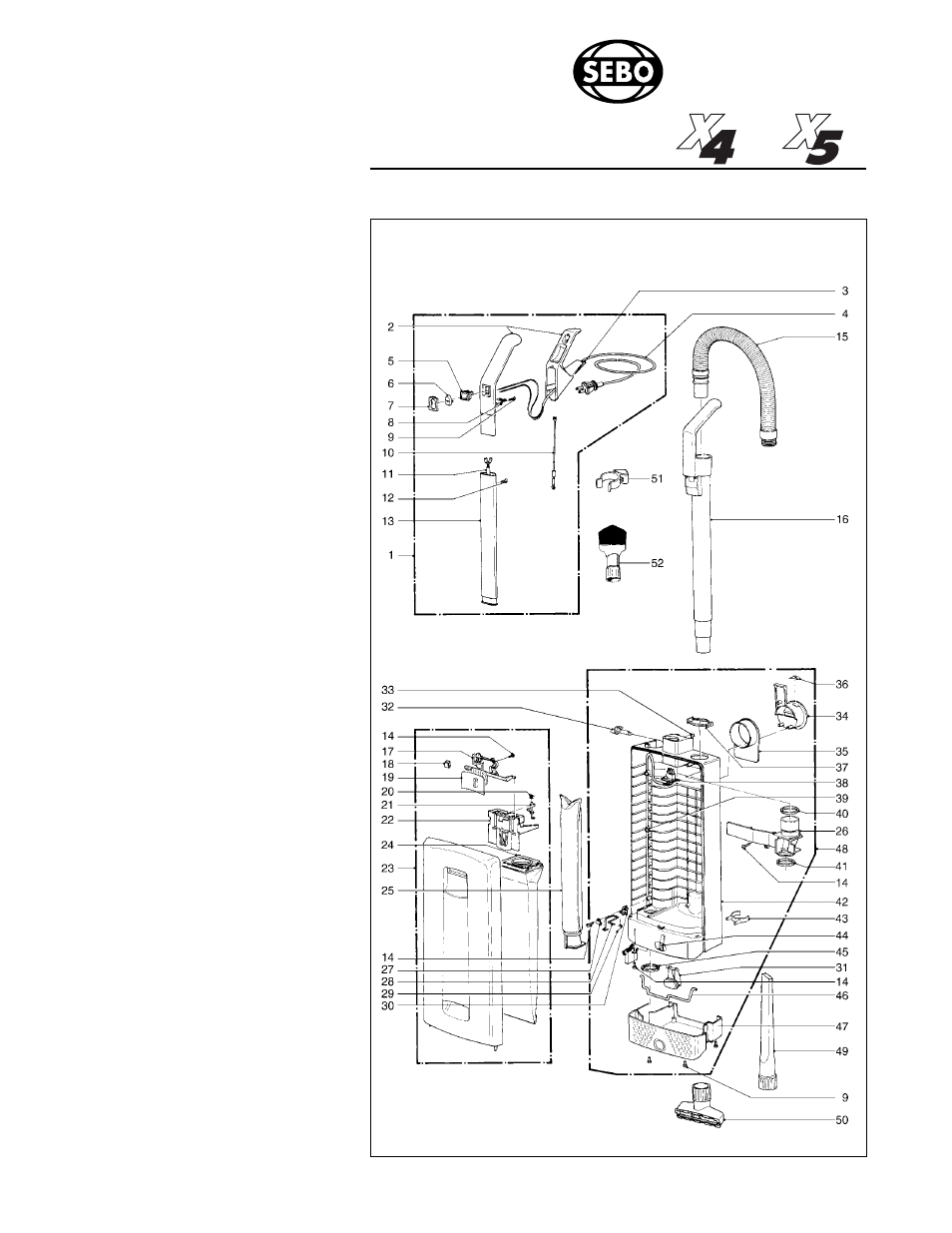

Pos. Part # Description
1 5634 AM Handle complete
(dark gray/light gray)
2 5297 SE Handle grip (incl. pos. 7+10)
3 5359 DG Grommet
4 5450 DG Power supply cord
5 05112 Switch
6 5160 HG Switch cap (light gray)
7 5161 DG Switch cap holder
8 5162 Cable clamp
9 0103 Screw C 3.9x16 DIN 7981
10 5253 UL Wire-antistatic
11 5298 ER Handle cable
12 0129 Screw M 4x12 DIN 966
13 5187 Handle tube
14 0102 Screw F 3.9x13 DIN 7981
15 5040 HG Hose, cpl.
16 5045 DG Extension tube
17 5707 GW Cover (white)
18 5319 Bag holder Spring
19 5706 DG Cover release (dark gray)
20 5091 Safety catch spring
21 5360 Safety catch
22 5324 Bag holder cpl. (incl. pos. 20+21)
23 5750 SE Front cover complete
(white/dark gray)
5454 Front cover seal
24 5093 AM Dust bag pack
25 5036 AM Micro hygiene filter
26 5380 DG Internal cover complete
(incl. pos. 40+41)
27 1073 Clamp
28 5208 Filter safety catch
29 5210 Return spring
30 5164 Cable clamp
31 5722 DG Dust bag housing
locking catch (dark gray)
32 1859 DG Handle catch (dark gray)
33 0161 Clip 4, DIN 6799
34 5721 GW Carrying handle (white)
35 5703 GW Cable hook (white)
36 5146 Stop spring
37 5424 DG Retaining ring
38 5299 ER Internal cable
39 5266 Cable clamp
40 5043 Seal
41 5289 Seal
42 5764 GW Dust bag housing (white)
43 1823 DG Attachment clip (dark gray)
44 5084 Spring for locking rod
45 5163 Seal
46 5083 Locking rod
47 5702 GW Dust bag housing
bumper base (white)
48 5755 GW Dust bag housing, cpl.
(white/dark gray)
49 1092 DG Crevice nozzle
50 1491 DG Upholstery nozzle
51 5460 DG Mounting clip
52 1329 DG Dusting brush
Blue-Yellow Machine
1 5636 AM Handle complete
(dark gray / yellow)
6 5160 SG Switch cap (yellow)
17 5707 DB Cover (dark blue)
23 5749 SE Front cover complete
(dark blue / yellow)
31 5722 SG Dust bag housing locking catch
(yellow)
32 1859 SG Handle catch (yellow)
34 5721 DB Carrying handles (dark blue)
35 5703 DB Cable hook (dark blue)
42 5764 DB Dust bag housing (dark blue)
47 5702 DB Dust bag housing bumper base
(dark blue)
48 5763 DB Dust bag housing cpl.
(dark blue / yellow)
