Using the Display Control

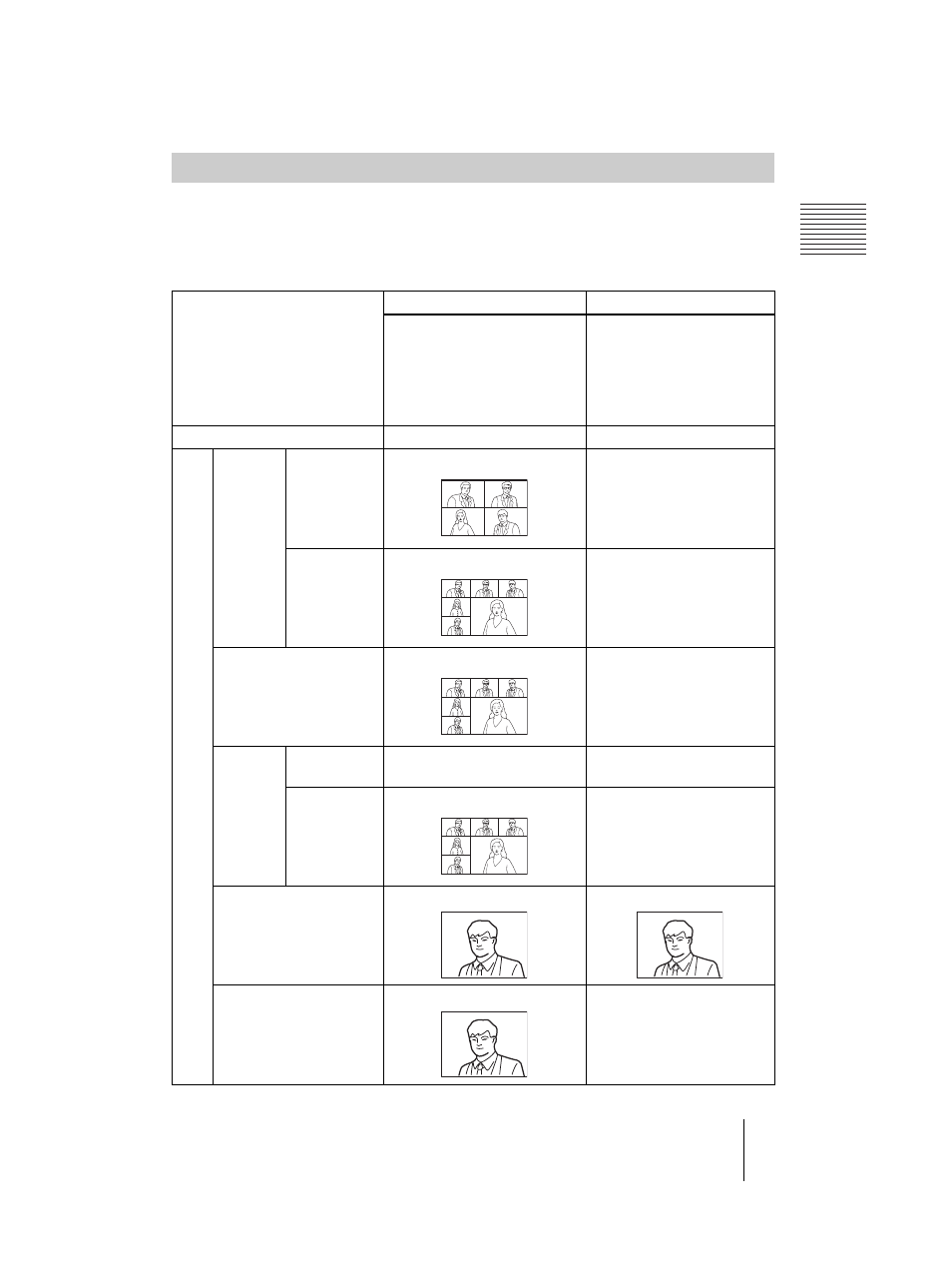

The chart described below shows the window displayed on the monitor screen
when you select one of the Broadcast Modes. According to the connection
status of your system, some modes cannot be selected. In the connection status
with no window shown in the chart, the corresponding mode is not available.
Broadcast Modes and Displayed Windows
Connection status Non-cascade connection Cascade connection
LAN connection (See page
163.)
ISDN connection (See page
165.)
LAN & ISDN connection (See
page 167) LAN cascade connection
(See page 164.)
LAN&ISDN cascade
connection (See page 168.)
Connecting points (max.) 6 10
Automatic 1-3 terminals
connected
Four-split window –
4-5 terminals
connected Six-split window –
Six-screen mosaic Six-screen mosaic –
Split
(Fixed) 1-3 terminals
connected – –
4-5 terminals
connected Six-split window –
Voice Activate Full screen Full screen
Broadcast Full screen –
Broadca
st Mode
