OPERATION
2160 02/10 Operation Section 4-14
© 2010 Alamo Group Inc.
OPERA
T
ION

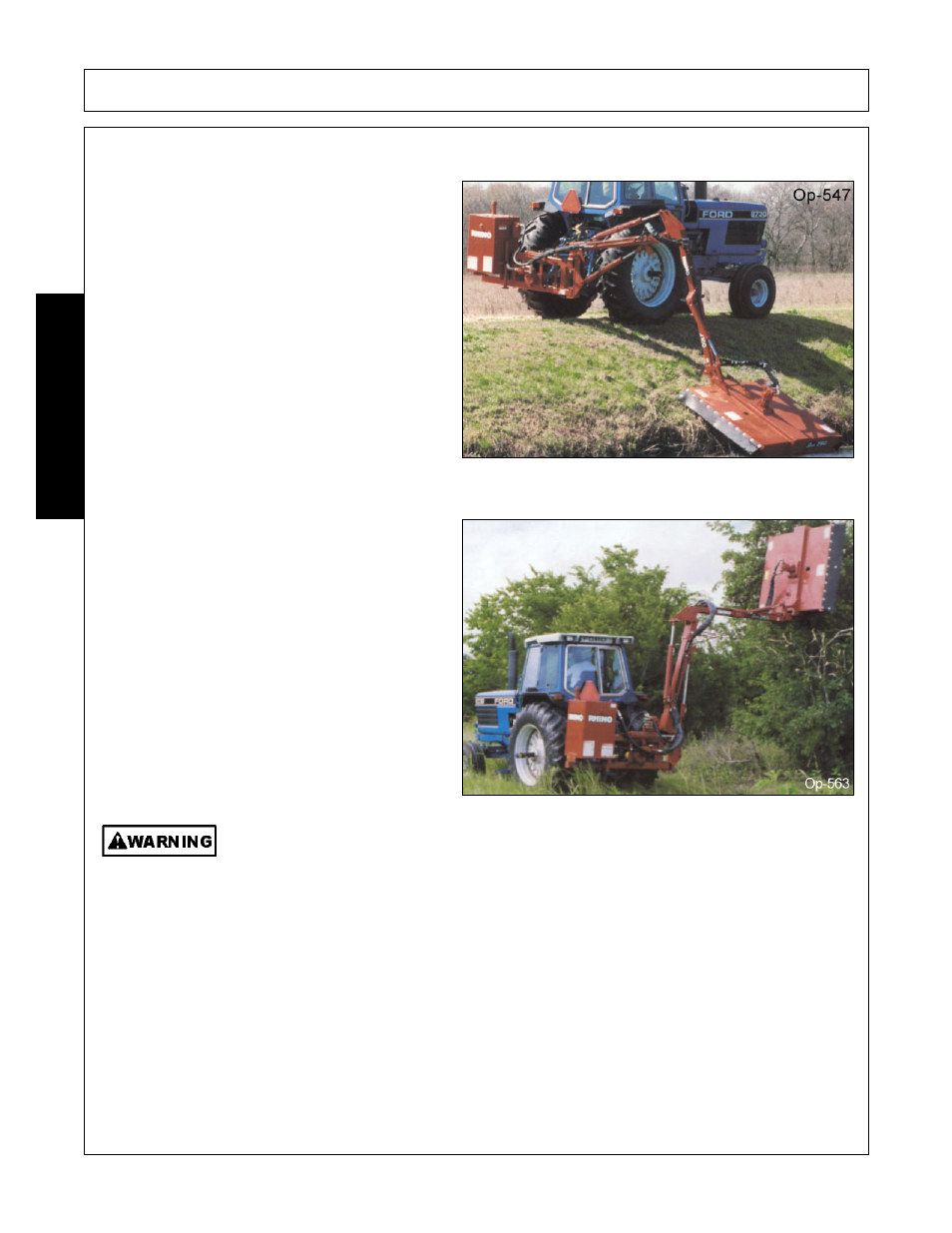

FRAME ASSEMBLY
• Inspect condition of mounting frame weldment.
• Inspect condition of King Post frame.
• Ensure all bolts and screws are in position and
are properly torqued.
• Ensure all pins are in place and fastened with
screws.
• Ensure frame is properly mounted to tractor
and hardware is propely installed and
tightened. OPS-B- 0021_E
BOOM ARM ASSEMBLY
• Inspect condition of each arm section weldment
• Ensure all pins are in place.
• Ensure all bolts and screws are properly
installed.
• Check condition of bushings at boom pivot
points.
• Ensure each hydraulic cylinder is installed and
retained correctly. Ensure the proper size pins
are used to retain the cylinders in place and are
secured properly. OPS-B- 0022_I
Never attempt to lubricate, adjust, or remove material from the Implement while it is in
motion or while tractor engine is running.
(SG-20)
