11-7

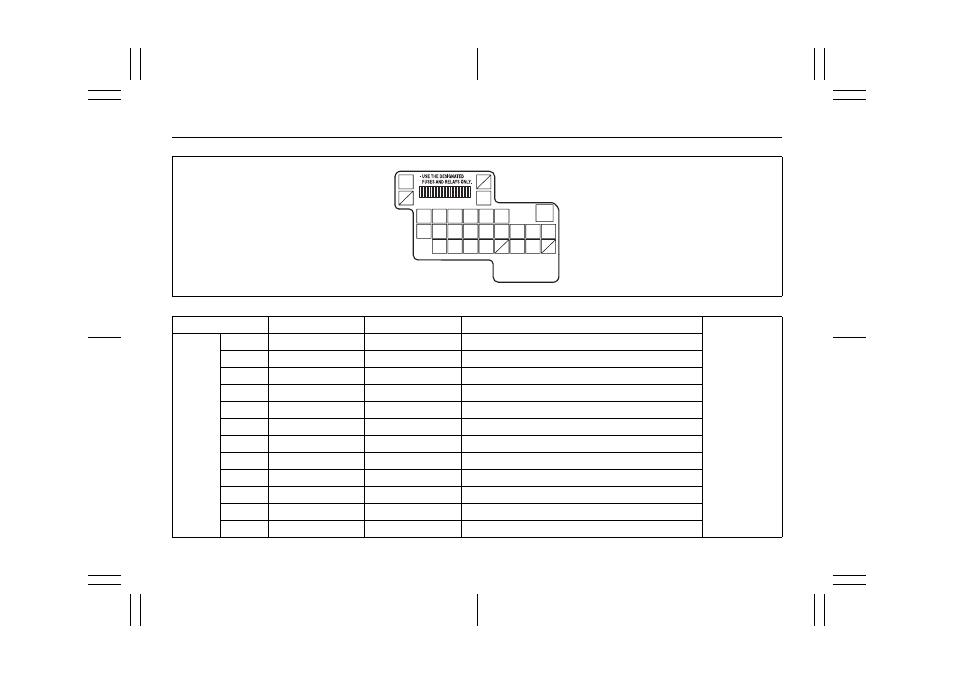

FUSES AND PROTECTED CIRCUITS
80J23-03E
80JC003
COLOR/SIZE (AMPS) FUSE NAME PROTECTED CIRCUIT
Under the
dashboard
FUSE
BOX
(13) RED (10) STOP Stop light
(14) YELLOW (20) D/L Door lock
(15) RED (10) RR FOG Rear fog light
(16) RED (10) ST SIG ST SIG
(17) BLUE (15) S/H Seat heater
(18) RED (10) IG2 SIG IG2 SIG
(19) RED (10) TAIL Tail light
(20) BLUE (15) DOME Dome
(21) GREEN (30) RR DEF Rear defogger
(22) BLUE (15) HORN HAZ Horn/Hazard
(23) – – Blank
(24) GREEN (30) RR DEF Rear defogger
(1) (2) (3) (4) (5) (6)
(8) (9) (10) (11) (12) (13)
(21)
(24)
(14) (15) (16)
(18) (17) (19) (20) (22) (23)
(7)
