11-2

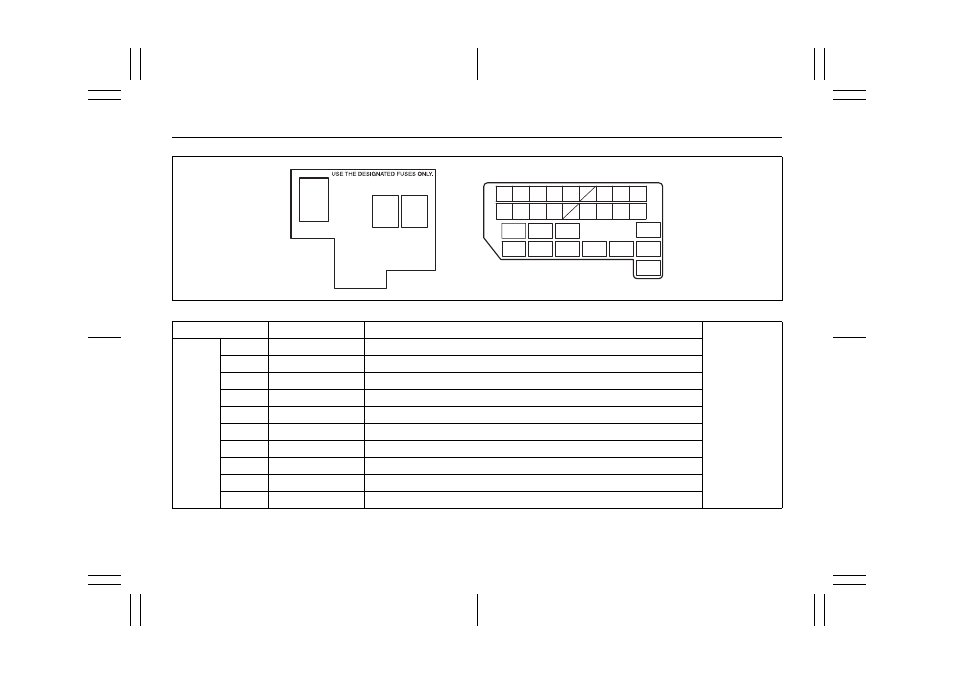

FUSES AND PROTECTED CIRCUITS
80J23-03E
80J101
COLOR/SIZE (AMPS) PROTECTED CIRCUIT
In engine
compartment MAIN
FUSE
BOX
(11) PINK (30) Radiator fan fuse
(12) PINK (30) ABS solenoid fuse
(13) PINK (30) Starting motor fuse
(14) RED (50) Ignition switch fuse
(15) PINK (30) Blower fan fuse
(16) YELLOW (20) Air compressor fuse
(17) BLUE (15) Throttle motor fuse
(18) BLUE (15) Automatic transaxle fuse
(19) BLUE (15) Fuel injection fuse
(20) – Automatic transaxle relay
(1)
(2) (3)
(28)
(27) (26) (25)
(6) (7) (9) (11)
(15) (16) (17) (18) (19)
(24)
(8) (4) (5) (10)
(22) (21)
(23)
(20)
(12) (13) (14)
(30)
(29)
Fuses and Protected Circuits: 7
