PARTS LIST
ITEM NO.
PART NO.
DESCRIPTION
1
A0304-0311
Exhaust Valve Collar
2
A0103-0091
Safety Spring
3
A0200-1241
O-Ring 49*1.8W
4
B0000-0051
Screw Set M5*20
5
A0301-1631
Cap, Top
6
A0311-0717
Seal, Air
7
A0100-2731
Spring
8
A0308-0101
Disc Valve
9
A0200-0051
O-Ring 13.8*2.4
10
A0200-0531
O-Ring 48*2.5
11
A0311-0581
Seal, Air
12
A0103-0221
Ring
13
A0200-0131
O-Ring 35*3.5
PROBLEM
POSSIBLE CAUSE
SOLUTION

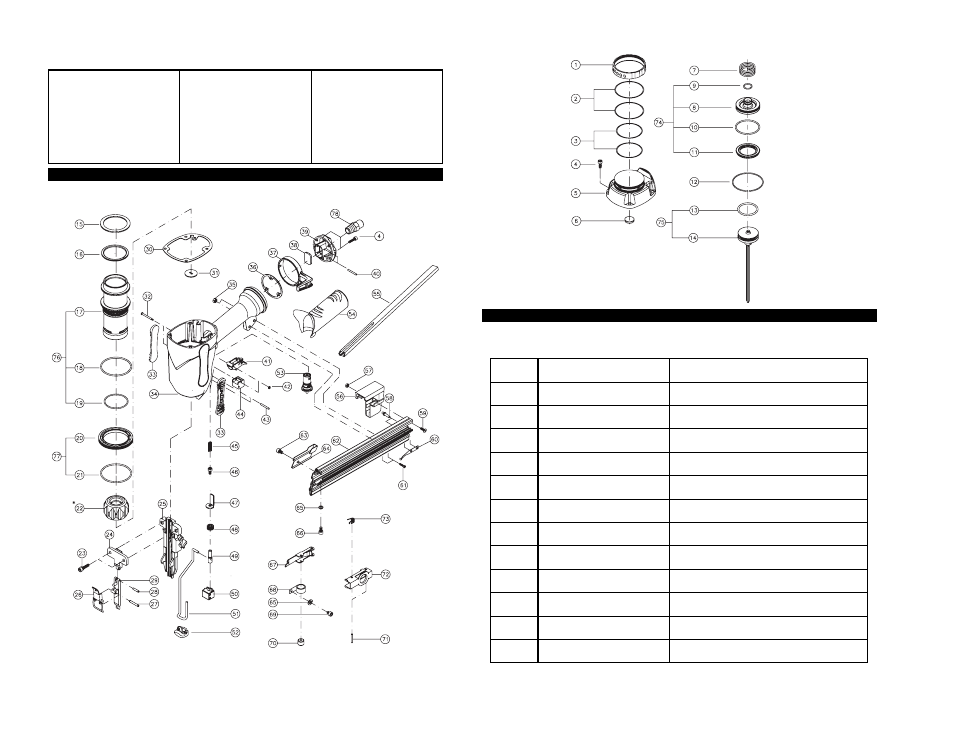

PARTS DIAGRAM
19
Drives nails properly
during normal nailing
operations, but fails to
drive nails fully at faster
operating speeds.
Check inside diameter of
air hose.
Switch to air hose with
larger inside diameter.
