StarTech.com SV831SUN User Manual
Page 7
5

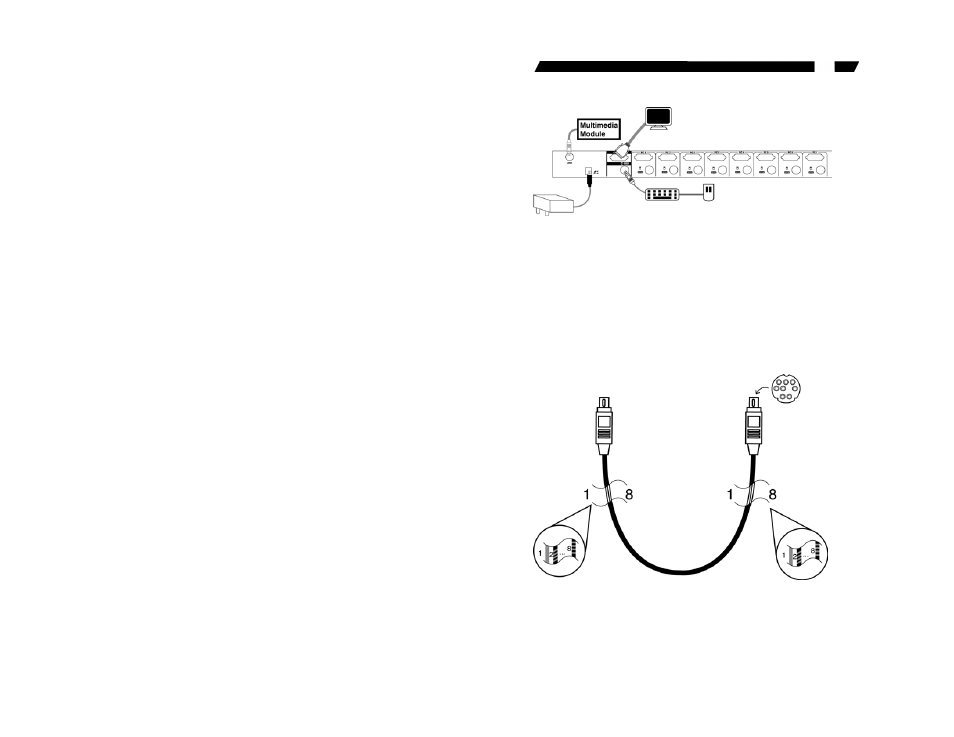

Figure 4: Master console connection
for monitor with HBD15 connector
Computer Connection
Each SUN computer is connected to the StarView with one straight
through (1-1, 2-2, 3-3… 8-8) mini DIN8 cable (as shown in figure 5)
and one male-to-male HDB15 VGA cable.
Figure 5: Straight through 1-to-1 mini DIN8 cable
