XT185 Treadmill 6
1. Take the Left and Right upright tubes (part numbers 5 & 4) and slide the upright covers (99 &
100 right) onto the tubes (observe the cover orientation is correct). Connect the Middle Console
Cable (
38) that exits from the bottom of the right upright tube with the lower Console Cable (39).
Insert the Left and Right ( 5 & 4) Uprights into the Left and Right Receiving Tubes (holes are on
the outside of the tubes). Be careful not to pinch the wire when installing the upright.
NOTE: Partially tighten all bolts in this Step. This will allow for easier console assembly.
2. Attach the tubes with three Button Head Socket Bolts ( 93) from each side and two Button Head
Socket Bolts ( 93) and two Curved Washers (94) from the front. Partially tighten using the Combi-
nation M5 Allen Wrench & Phillips Head Screw Drive ( 96).
UPRIGHT TUBE ASSEMBLY

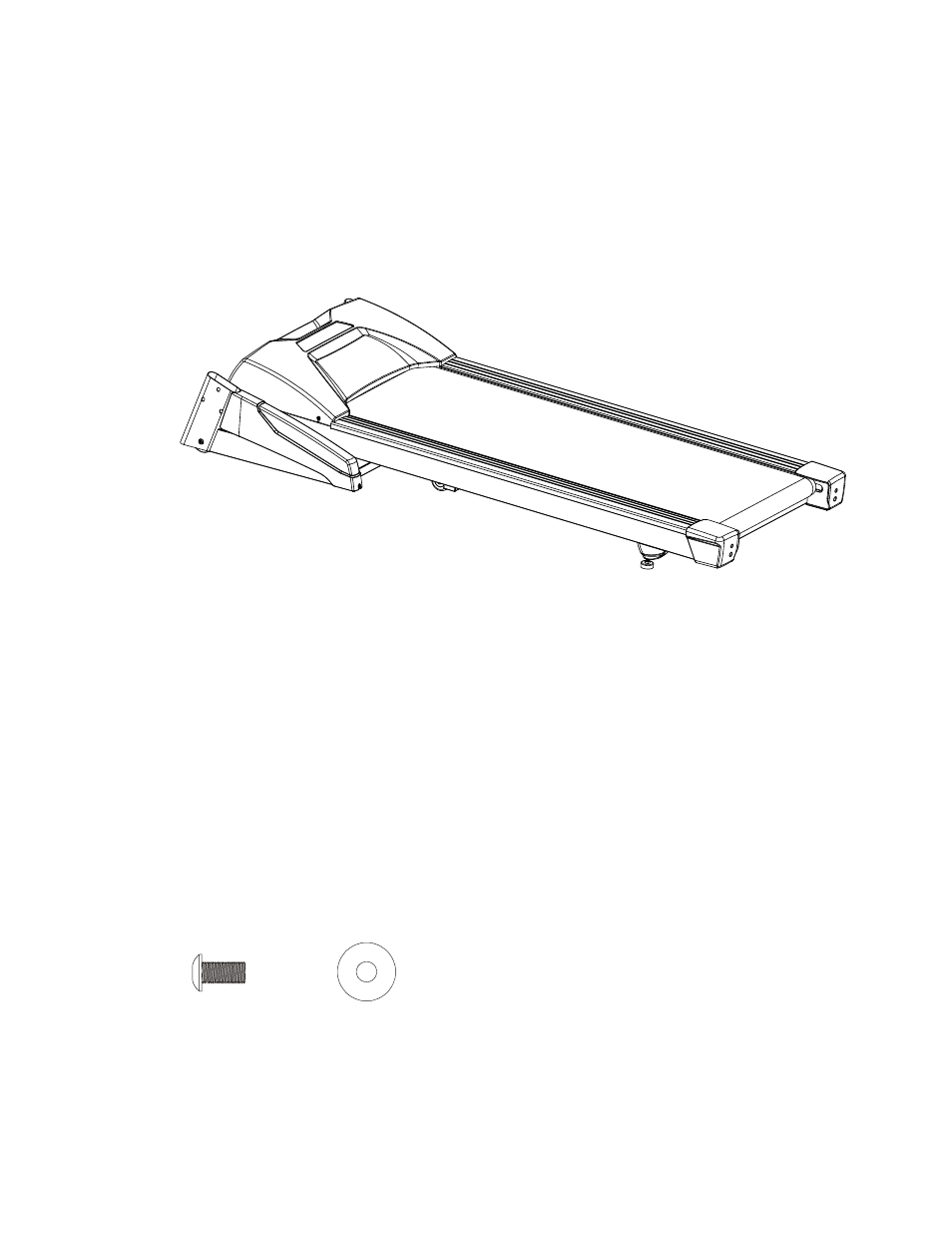

1
#93. 5/16” x 15mm
Button Head Socket
Bolt (8 pcs)
#94. 5/16” x 19 x 1.5T
Curved Washer
(2 pcs)
HARDWARE
