Galaxy 5000/2000RS-DBP - Page 31

2-Pin White Connector: Located on the side of the main module.

· Green WIRE - Parking Brake Input (-) For Manual Transmission and/or vehicles equipped with a turbo charged engine.

Must be connected if using the Turbo Timer feature and/or Manual Transmission remote start feature.

· Blue WIRE -

Turbo Timer cancel input for Manual transmission systems in Turbo Timer mode.

(this feature allows the the turbo timer feature to be temporarilly canceled for remote start applications on manual

transmission vehicles) A seperate push button switch wired to GROUND is needed.

To temporarily bypass the turbo timer in order to perform the remote start procedure for manual transmissions:

With the engine running, apply the parking brake then push the remote start button on transmitter, lights will flash

twice. Turn off the ignition, the engine will stay running. Now push and release the button on the push switch, the

siren will chirp once. The Turbo Timer feature is now canceled. Open and close the door, engine will shut down.

Vehicle is now ready for remote start.

4-Pin White DBP Connector: The plug-in DBP connector port is located on the side of the main module.

T

his DBP port may be used with the optional bypass modules for data bus interface.

Jumper Selection

Carefully separate the top and bottom halves of the main unit case. Once the cover is removed, the parking

light polarity jumper will be visible next to the parking light relay. Set the jumper for the correct polarity
output as described below, then reassemble the main unit case.

Parking Light Output. Selects the polarity (+/-) for the output of the on-board Parking Light relay.

Left Pin + Center Pin = positive ( Default setting is ( + )

Right Pin + Center Pin = negative

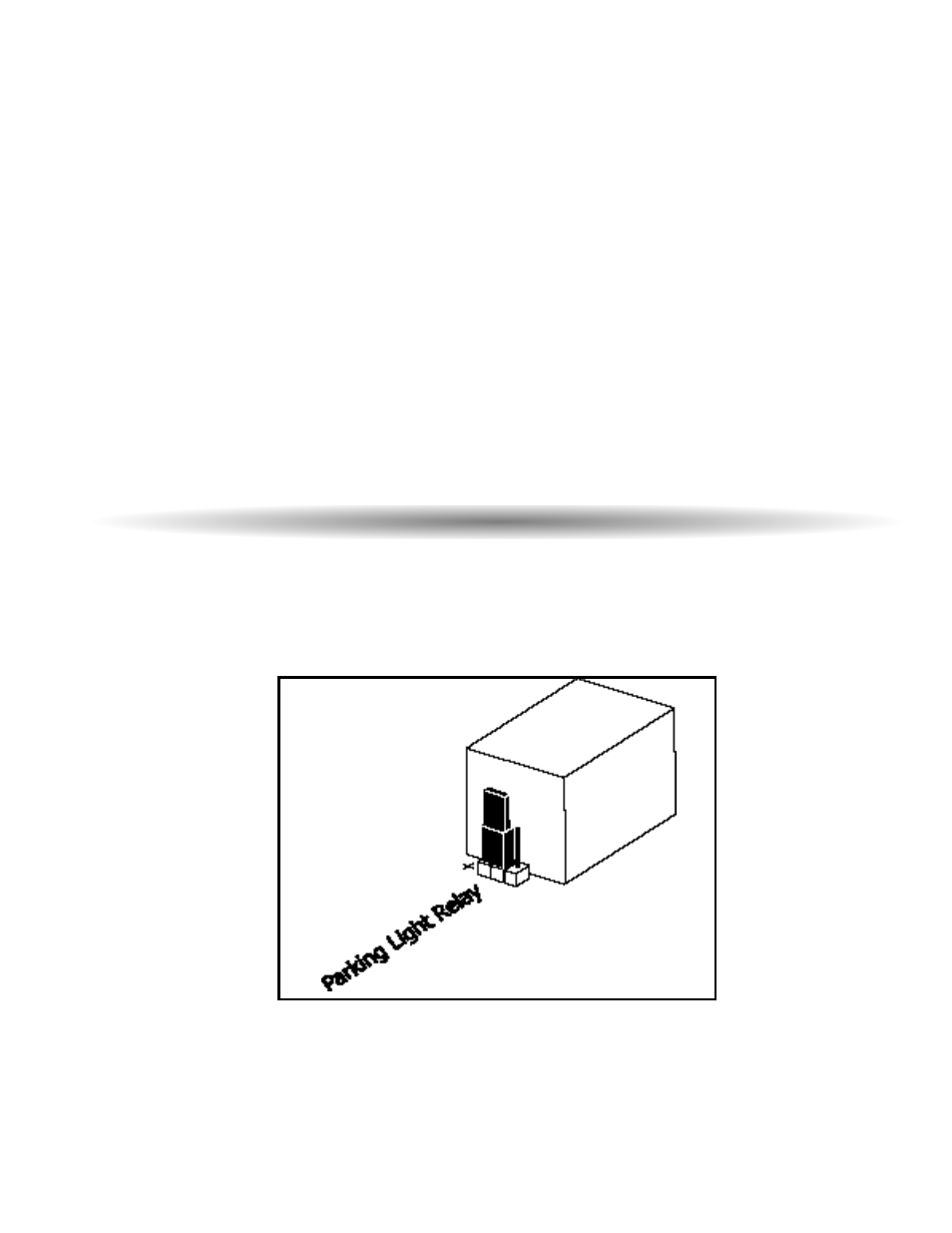

Jumper Settings

default setting shown
