3
SATA 15pin
power connector SATA 7pin data
connector for HDD 0 SATA 7pin data
connector for HDD 1
Hardware Installation
The Dual 2.5" SATA MobileRack fits into any available
3.5" drive bay. General instructions for installing the
mobile rack are provided below. Since the design of
computer cases and motherboards vary, refer to your
computer’s reference manual for further information, if
needed.
Static Electricity Discharge may permanently damage
your system. Discharge any static electricity build up in
your body by touching your computer’s case for a few
seconds.
1.
Turn OFF the power to your computer and any
other connected peripheral devices.
2. Unplug the power cord from the back of the
computer.
4. Remove a front cover plate from the computer's
3.5" drive bay before installing your Dual 2.5" SATA
MobileRack.

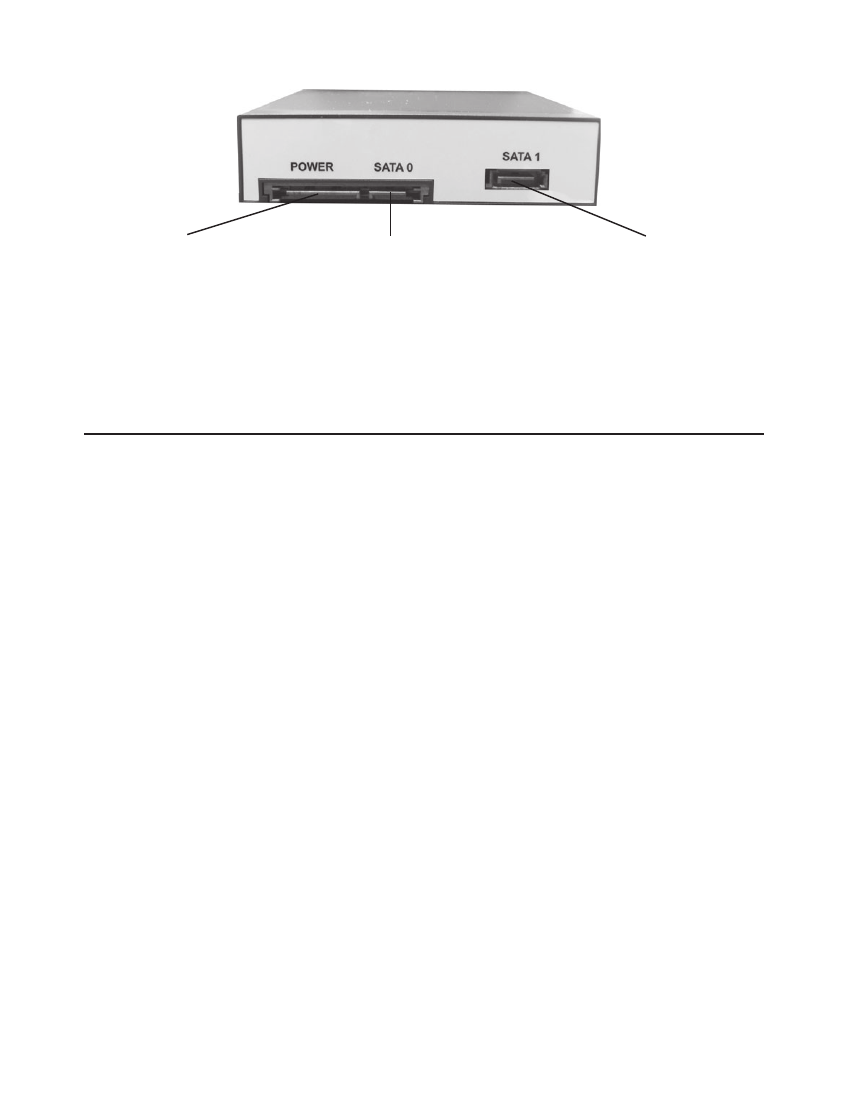

Figure 2: Back Layout
