ITEM P/N QTY DESCRIPTION
1 59130 1 Manifold Assy, Single Circuit
2 59104 1 Hose Barb, 3/4 in. Hose x 3/4 in. Pipe
3 62199 4 Hose Clamp
4 350000 1 Elbow, 45° Straight Thread
5 02773 1 Adapter
6 58569 1 Elbow, 90°
7 58943 1 Hose
8 350104 1 Connector, Straight Thread
9 40364 1 Elbow, 45°
10 59088 1 Hose
11 59089 1 Hose
12
59105 1 Hose Barb, 3/4 in. Hose x 3/4 in. Pipe

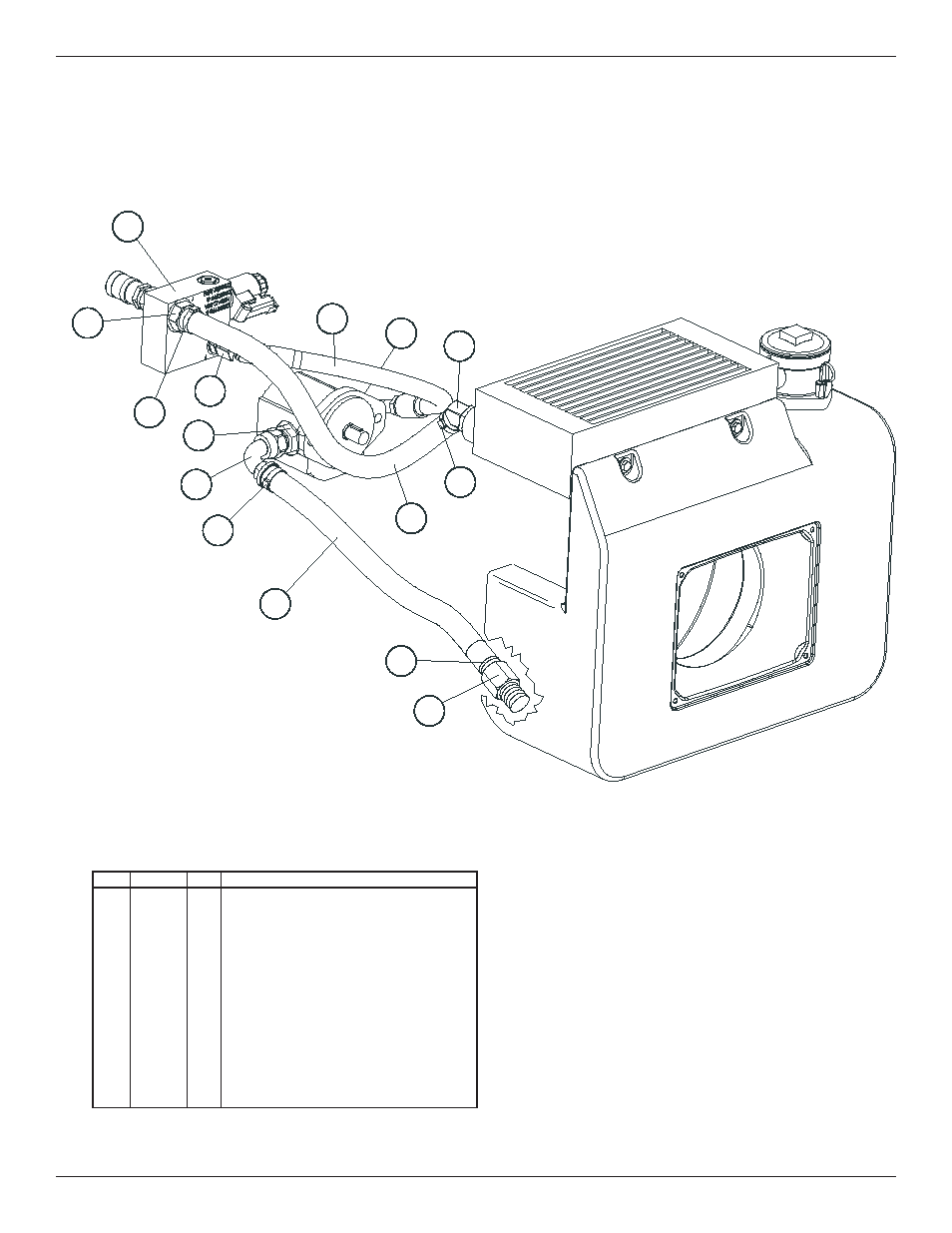

FIGURE 3. HOSES, FITTINGS & CLAMPS
