47
Connection Diagram
Installation
Follow these steps for proper installation.
1. Power down your PC and unplug it from the
power source.
2. Connect the active RF coaxial cable to the
connector on the back of the cable modem labeled
CABLE IN
. Use an optional cable signal splitter
to add a TV, a DHCT or set-top converter, or a
VCR.
3. Connect either the Ethernet port or the USB port
on the back of the cable modem to your PC using
the appropriate supplied cable.
4. Insert the power cord into the power supply on
the back of the cable modem, and then plug the
cord into an AC power source.
5. Plug in and power on your PC.
6. Configure the TCP/IP protocol, or install the USB
drivers from the supplied diskette, whichever is
necessary for your system.
Note: See Configuring TCP/IP on pages 48
through 50, or Installing the USB Drivers on
page 51 of this guide for further instructions.

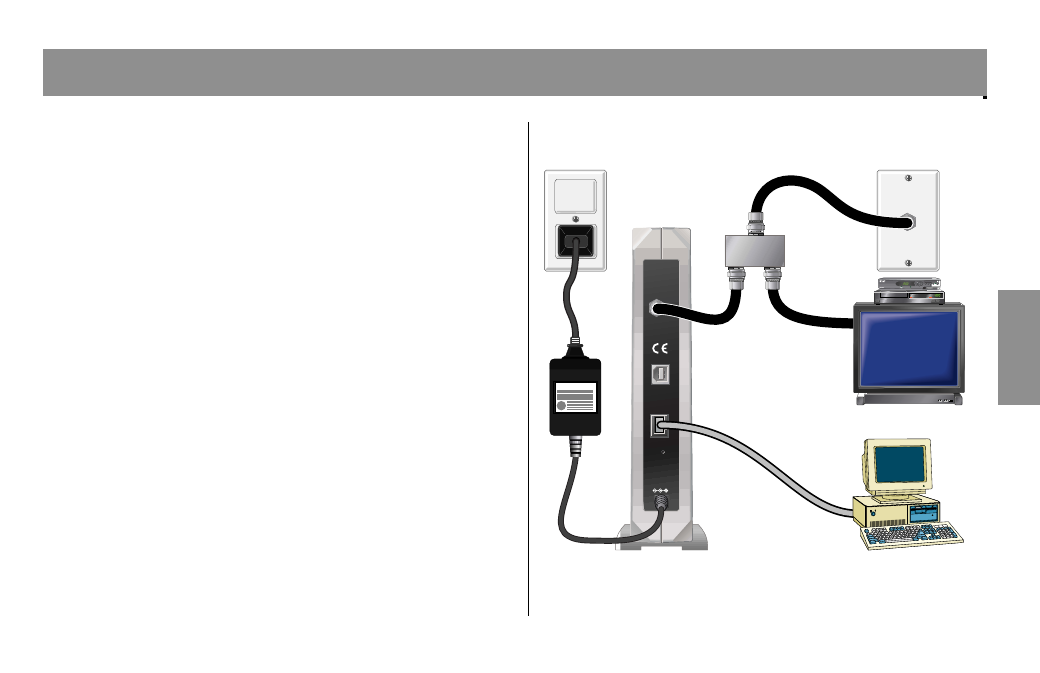

The following diagram illustrates one of the various
connection options that are available to you.
Note: Professional installation may be available.
Contact your local cable service provider for further
assistance.
ENGLISH
C
LISTED E188325
US UL
CABLE
IN
USB
ETHERNET
RESET
12 VDC
0.6A Max
Power
Supply
PC
Ethernet
Cable
RF
Cable
RF
Cables
Cable
Splitter
T9355
Power Supply
Cable-Ready TV,
VCR, or Set-Top
Converter
BYPASS
VOLñ VOL+ CH+
CHñ MENU GUIDE INFO A/B POWER
